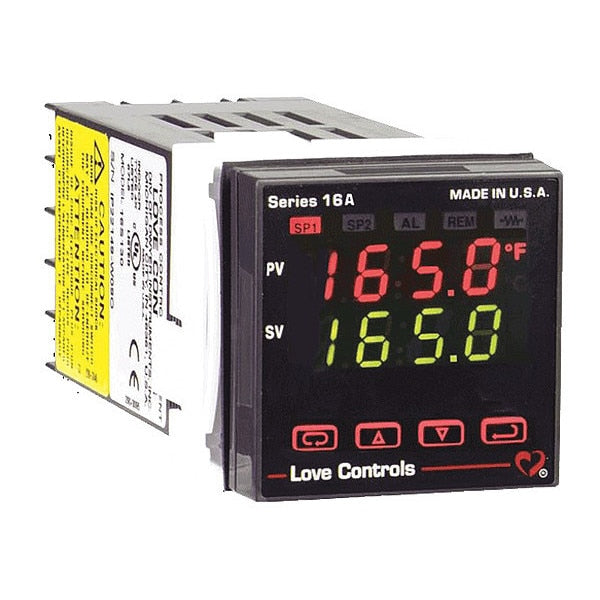

16 Din Temperature/Process Controller

SKU
Brand Dwyer Instruments
Categories
Description 16 Din Temperature/Process Controller

Web Price

$777.49 / each

Qty

Product Details

Accuracy ÃÂ±0.25% of span ÃÂ±1 least significant digit.

Agency Approvals UL E83725, CE.

Alarms 3A Relay

Amps 100mA

Control Mode Manual, On/Off, P, PI, PID

Control Output Ratings SSR: 2.0 A at 240 VAC resistive at 77ÃÂ°F (25ÃÂ°C). De-rates to 1.0 A at 130ÃÂ°F (55ÃÂ°C). Minimum load of 100 mA. DC SSR: 1.75 A at 32 VDC maximum. Relay: SPST, 3A at 240 VAC resistive, 1.5 A @ 240 VAC inductive. Pilot Duty rating: 250 VA, 2 A @ 120 VAC, 1 A @ 240 VAC. Alarm Relay: SPST, 3 A @ 240 VAC resistive; 1.5 A @ 240 VAC inductive. Pilot Duty Rating: 240 VA, 2 A @ 120 VAC or 1 A @ 240 VAC. Switched Voltage: 15 VDC at 20 mA. Proportional Current: 0 to 20 mADC, scalable, into 600 ohms maximum.

Country of Origin (subject to change) United States

Depth 1.89 in

Description/Special Features (2) Four-Digit LED Displays

Digital/Analog Digital

DIN Size 1/16

Display Two four-digit LED displays, 0.3 in (7.62 mm) high.

Front Panel Rating NEMA 4X (IP66).

Hysteresis Programmable

Input Voltage 100 to 240V AC

Output SSR

Package Quantity 1

Power Consumption 5 VA
