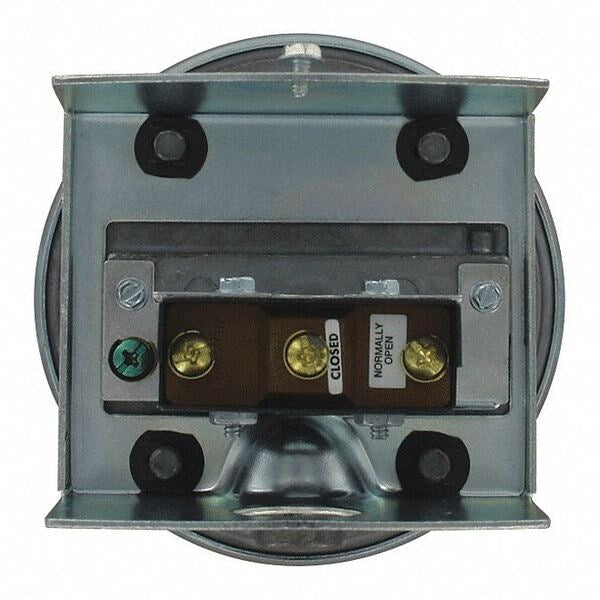

1823-0 - 1823-0 Switch

SKU
Brand Dwyer Instruments
Categories
Description 1823-0 - 1823-0 Switch
graingerSKU: , mscSKU: , zoro_no: G0562549, mongo_id: 65bbe8a222d7a989a990799e

Web Price

$161.24 / each

Qty

Product Details

Agency Approvals CE, CSA, FM, UL. NOTE: Optional (-EXPL) Explosion-proof Enclosure does not possess any agency approvals.

Country of Origin (subject to change) United States

Electrical Connections 3 screw type, common, normally open and normally closed.

Electrical Rating 15 A @ 120-480 VAC, 60 Hz. Resistive 1/8 HP @ 125 VAC, 1/4 HP @ 250 VAC, 60 Hz. De-rate to 10 A for operation at high cycle rates.

Features Compact size and repeatability provide a high-value switch for many industrial applications; Designed for panel and wall mounting to easily meet mounting requirements in most industrial settings; Pressure ranges from 0.07 in w.c. to 85 in w.c. make this switch suitable for a wide range of applications

Mounting Orientation Diaphragm in vertical position. Consult factory for other position orientations.

Package Quantity 1

Pressure Limits 10 psig (68.95 kPa) continuous, 25 psig (172.4 kPa) surge.

Pressure Switch Electrical Contact Form SPDT

Process Connections 1/8 female NPT.

Repeatability ÃÂ±2%.

Service Air and non-combustible, compatible gases.

Set Point Adjustment Screw type inside mounting spud.

Switch Type Single-pole double-throw (SPDT).

Temperature Limits -30 to 180ÃÂ°F (-34 to 82.2ÃÂ°C). 1823-00, -20 to 180ÃÂ°F (-28.9 to 82.2ÃÂ°C).
