Home / Large Diaphragm Pressure Switch

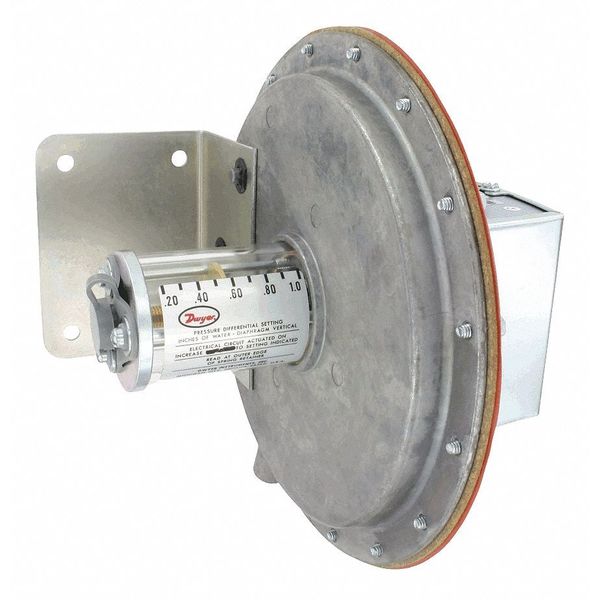

Large Diaphragm Pressure Switch

Large Diaphragm Pressure Switch

  • Dwyer Instruments
  • Large Diaphragm Pressure Switch

    graingerSKU: , mscSKU: , zoro_no: G0562521, mongo_id: 65bbe98022d7a989a995d9de

Web Price
$786.24 / each
Qty

Product Details

CSA, FM, UL.
Air Conditioning
SPDT
United States
Screw Terminals
3 screw type, common, normally open and normally closed.
15 A @ 120 to 480 V AC, 60 Hz Resistive, 1/8 HP @ 125 V AC, 1/4 HP @ 250 V AC, 60 Hz
Visible set point indicator simplifies operation and trouble shooting; Large diaphragm provides low range accuracy providing precise control; Current loads of up to 15 amps supports most small electrical loads supporting a broader range of HVAC and Process applications without the need for additional relays and components
Steel
1 in wc
110 Degrees F
0.2 in wc
-30 Degrees F
3 in
5/16 in
Vertical
6 1/2 in
7 7/8 in
Not Applicable
1
10 psig (68.95 kPa) continuous, 25 psig (172.4 kPa) surge.
Adjustable
Differential
1/8 female NPT.
Pressure Switch
±1%.
1/8 in
NPT
Air and non-combustible, compatible gases.
Screw type with enclosed scale.
CE, CSA, FM, RoHS, UL Listed
SPDT.
-30 to 110°F (-34.4 to 43.3°C).
3 lb
