Home / TemperatureProcess Controller, 116 Temp Cont, VplsRly

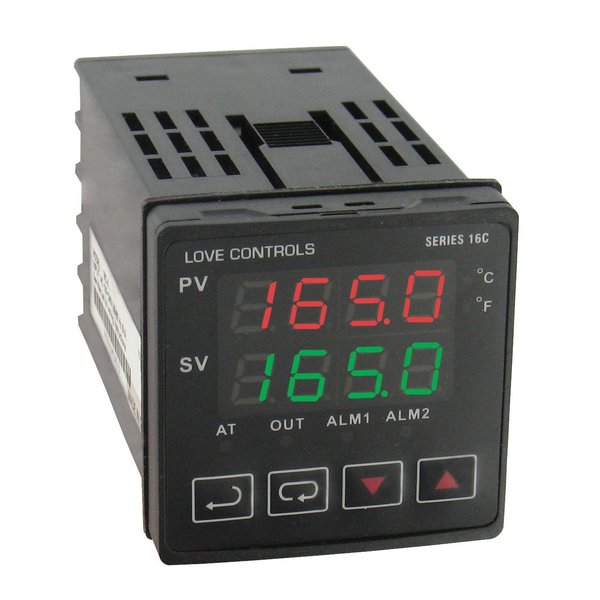

TemperatureProcess Controller, 116 Temp Cont, VplsRly

TemperatureProcess Controller, 116 Temp Cont, VplsRly

  • Dwyer Instruments
  • Digital Temperature Controller, Digital, RTD, Thermocouple Sensor Type, DIN Size 1/16, Input Voltage 100 to 240V AC, Switch Function 14 V, 10 Percent to -20 Percent (max 40 mA) (Output 1), SPST, 5 A @ 250 VAC Resistive (Output 2), Output (1) Voltage Pulse and (1) Relay, Temp. Range 32 Degrees to 122 Degrees F, Control Mode Manual Tune, On/Off, PID, Self-Tune, 40mA, 5A Amps, Length 48 mm, Width 48 mm, Depth 89.5 mm
Web Price
$231.24 / each
Qty

Product Details

±0.25% span, ±1 least significant digit.
CE, cUL, UL.
RS-485 Modbus® A-5-11/RTU communication protocol.
Relay: SPST, 5 A @ 250 VAC resistive; Voltage Pulse: 14 V, 10% to -20% (max 40 mA); Current: 4 to 20 mA.
Taiwan, Province of China
Two 4-digit, 7 segment .25 H (6.35 mm) LED's. PV: red; SV: green.
IP56.
Thermocouple, RTD, DC voltages or DC current.
Nonvolatile memory.
32 to 122°F (0 to 50°C).
1
5 VA max.
