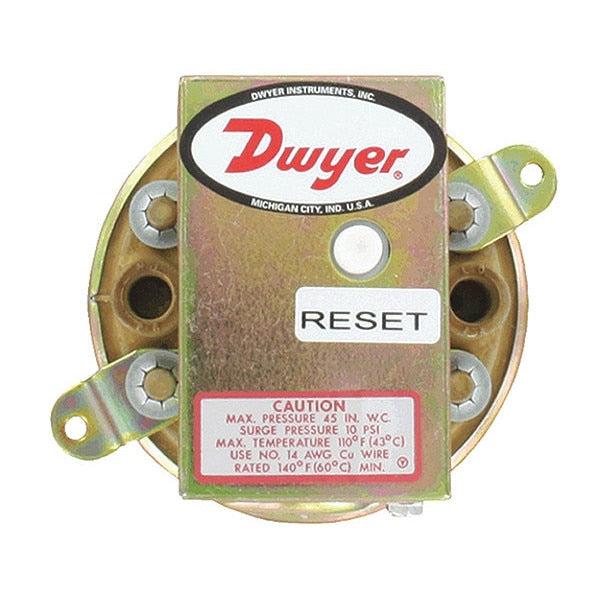

Manual Reset Pressure Switch

SKU
Brand Dwyer
Categories
Description Manual Reset Pressure Switch

Web Price

$164.99 / each

Qty

Product Details

Agency Approvals CE, CSA, FM, UL. Optional EXPL Explosion-proof enclosure does not possess any agency approvals.

Country of Origin (subject to change) United States

Electrical Connections 3 screw type, common, normally open and normally closed.

Electrical Rating 15 A @ 120-480 VAC, 60 Hz. Resistive 1/8 HP @ 125 VAC, 1/4 HP @ 250 VAC, 60 Hz. Derate to 10 A for operation at high cycle rates.

Features Compact size and repeatability, provides a high-value switch for many industrial and OEM applications; Wide range of models from 0.07 in w.c. to 20 in w.c. can meet exacting OEM specifications for a low pressure switch; Range screw protected inside enclosure provides simplifies making adjustments but prevents tampering

Mounting Orientation Diaphragm in vertical position. Consult factory for other position orientations.

Package Quantity 1

Pressure Limits 45 w.c. (11.2 kPa) continuous, 10 psig (68.95 kPa) surge.

Process Connections 1/8 female NPT.

Repeatability ÃÂ±3%.

Service Air and non-combustible, compatible gases.

Set Point Adjustment Screw type inside conduit enclosure.

Switch Type Single-pole double-throw (SPDT).

Temperature Limits -30 to 180ÃÂ°F (-34 to 82.2ÃÂ°C).
