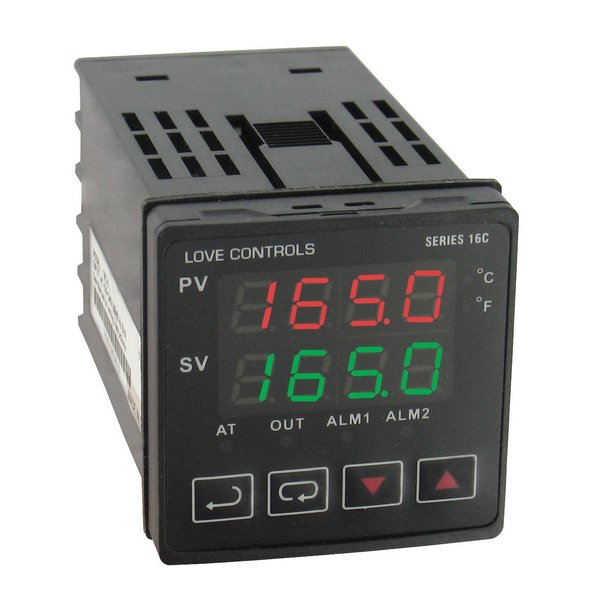

TemperatureProcess Controller, 116 Din Temp Cont

SKU
Brand Dwyer
Categories
Description Digital Temperature Controller, Digital, RTD, Thermocouple Sensor Type, DIN Size 1/16, Input Voltage 24V DC, Switch Function SPST, 5 A @ 250 VAC Resistive, Output (2) Relay, Temp. Range 32 Degrees to 122 Degrees F, Control Mode Manual Tune, On/Off, PID, Self-Tune, 5A Amps, Length 48 mm, Width 48 mm, Depth 89.5 mm, Non-Volatile Memory, Stage Control Program for upto 64 Ramp/Soak Actions, Transmission Speeds of 2400 to 38,400 bps, Upto 247 Communication Addresses, Power Consumption 5 VA

Web Price

$258.74 / each

Qty

Product Details

Accuracy ÃÂ±0.25% span, ÃÂ±1 least significant digit.

Agency Approvals CE, cUL, UL.

Communication RS-485 ModbusÃÂ® A-5-11/RTU communication protocol.

Control Output Ratings Relay: SPST, 5 A @ 250 VAC resistive; Voltage Pulse: 14 V, 10% to -20% (max 40 mA); Current: 4 to 20 mA.

Country of Origin (subject to change) Taiwan, Province of China

Display Two 4-digit, 7 segment .25 H (6.35 mm) LED's. PV: red; SV: green.

Features Universal input accepts process transmitters, RTD's or thermocouple signals; On/off, PID, or manual output control; RS-485 standard on all models; Stage control program for up to 64 ramp/soak actions

Front Panel Rating IP56.

Inputs Thermocouple, RTD, DC voltages or DC current.

Memory Backup Nonvolatile memory.

Operating Temperature 32 to 122ÃÂ°F (0 to 50ÃÂ°C).

Package Quantity 1

Power Consumption 5 VA max.
