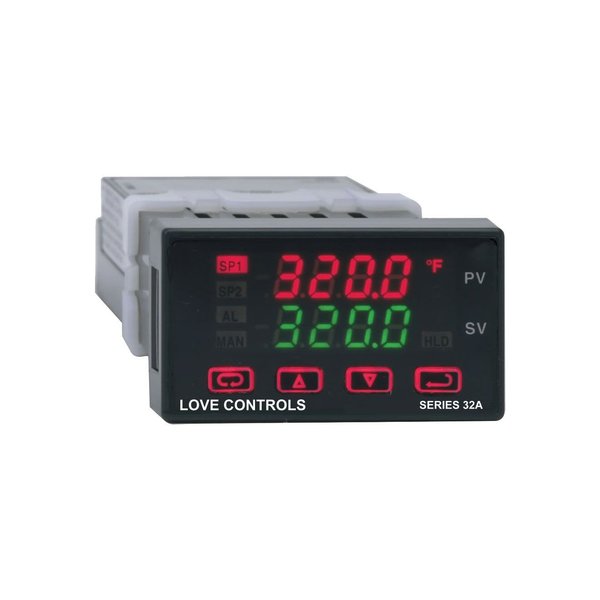

TemperatureProcess Controller, No Al, 5 Vdc, None

SKU
Brand Dwyer
Categories
Description Digital Temperature Controller, Digital, RTD, Thermocouple Sensor Type, DIN Size 1/32, Input Voltage 100 to 240V AC, Switch Function 5 VDC, Output (1) 5VDC, Temp. Range 14 Degrees to 131 Degrees F, Control Mode Fuzzy Logic, Peak/Valley Indication, Self-Tune, 20mA Amps, Length 30.1 mm, Width 52.8 mm, Depth 122.6 mm, 16 Segment Ramp/Soak Function, Four Password Protected Security Level, Illuminated Keypad, Large Dual Display, Non-Volatile memory, Percent Output Indication, Alarms No Alarm
graingerSKU: , mscSKU: , zoro_no: G007149051, mongo_id: 65bbe5953aaddbd5a9fd27ec

Web Price

$741.24 / each

Qty

Product Details

Accuracy ÃÂ±0.25% of span, ÃÂ±1 least significant digit.

Agency Approvals CE, UL E83725.

Control Output Ratings Relay: SPST, 3 A @ 240 VAC resistive; 1.5 A @ 240 VAC inductive; Pilot Duty Rating: 250 VA, 2 A @ 120 VAC or 1 A @ 240 VAC; Switched Voltage (Non-isolated): 5 VDC @ 20 mA; Proportional Current: 0 to 20 mADC scalable into 600 ohms max.

Country of Origin (subject to change) United States

Display Two 4-digit, 7 segment, 0.25 high (6.35 mm) LEDs.

Features Large Dual Display; Self-Tune; Fuzzy Logic; Universal Input; Loop Break Protection; Peak/Valley Indication; Percent Output Indication; Illuminated Keypad; 16 Segment Ramp/Soak Function; Auto/Manual Station Function; Four Password Protected Security Level

Front Panel Rating NEMA 4X (IP66).

Memory Backup Nonvolative memory. No batteries required.

Operating Temperature 14 to 131ÃÂ°F (-10 to 55ÃÂ°C).

Package Quantity 1

Power Consumption 5 VA maximum.
