Home / Circuit Breaker, 1200 A, 600VAC, 3 Poles

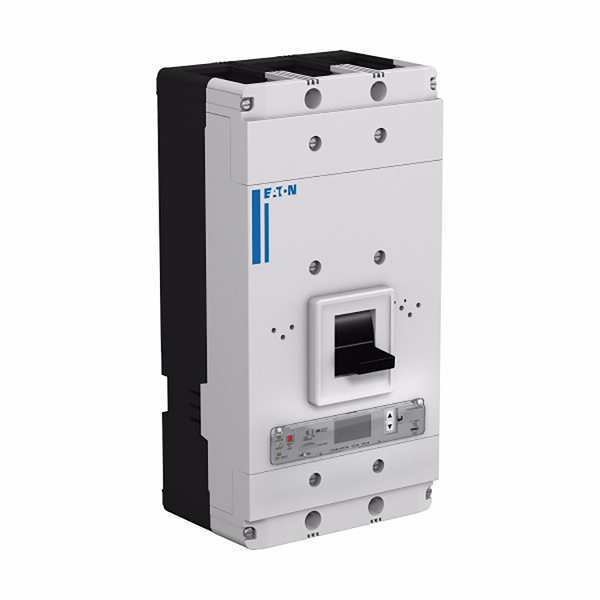

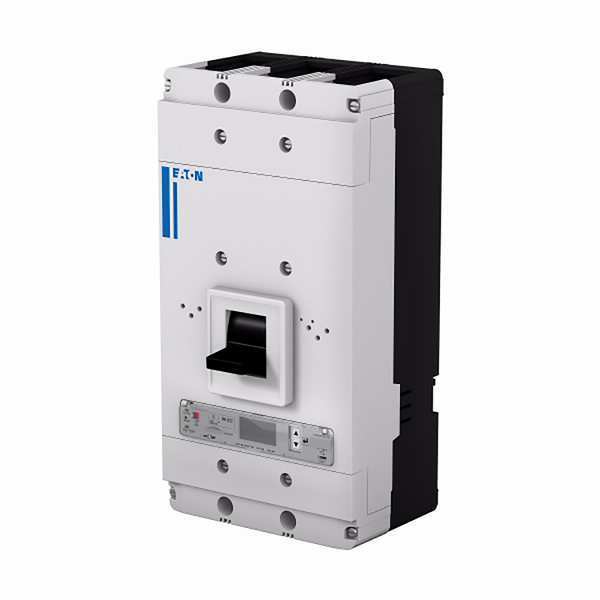

Circuit Breaker, 1200 A, 600VAC, 3 Poles

SKU
Brand Eaton
Categories
Description Circuit Breaker, 1,200 A Amps, AC Voltage Rating 600V AC, Max. AIR Rating 50 kA at 480V AC, For Use With Power Defense, Circuit Breaker Type Standard, Number of Poles 3, DC Voltage Rating Not Rated, Terminal Connection Not Applicable, Trip Type Electronic, Phase Three, Instantaneous Trip Instantaneous, Phase Connection ABC, Frame Size 1200A/Frame 5, Height 16 in, Width 8.25 in, Depth 5.5 in, Min. Wire Size 500 AWG, Max. Wire Size 4/0 AWG, Max. Operating Temp. 158 Degrees F
graingerSKU: 61HU55, mscSKU: , zoro_no: G200901937, mongo_id: 65bbe79c3aaddbd5a90a4d78

Web Price

$10,963.74 / each

Qty

Product Details

AC Voltage Rating 600V AC

Amps 1,200 A

Certifications IEC 60947-2;UL 489;CCC Marked;CSA

Circuit Breaker Type Standard

Class Class A

Country of Origin (subject to change) United States

Curve Type A

DC Voltage Rating Not Rated

Depth 5.5 in

For Use With Power Defense

Frame 5

Frame Size 1200A/Frame 5

Frame Type Complete Breaker

Height 16 in

High Amp Trip Setting 1200 A

Instantaneous Trip Instantaneous

Interrupt Rating 50 kA at 480V AC, 35 kA Icu/22.5 kA Ics/73.5 kA Icm at 480V

Interrupt Rating Range 35 kAIC Icu/ 22.5 kAIC Ics/ 73.5 kAIC Icm @480V Brazil (IEC);25 kAIC Icu/ 20 kAIC Ics/ 52.5 kAIC Icm @525V South Africa (IEC);50 kAIC @480/277V (UL);85 kAIC Icu/ 85 kAIC Ics/ 187 kAIC Icm @240V (IEC);50 kAIC Icu/ 50 kAIC Ics/ 105 kAIC Icm @380-415V (IEC);25 kAIC @600/347V (UL);10 kAIC Icu/ 5 kAIC Ics/ 21 kAIC Icm @690V (IEC);35 kAIC Icu/ 35 kAIC Ics/ 73.5 kAIC Icm @440V (IEC);85 kAIC @240V (UL)

Max. AIR Rating 50 kA at 480V AC

Max. Operating Temp. 158 Degrees F

Max. Wire Size 4/0 AWG

Min. Operating Temp. -4 Degrees F

Min. Wire Size 500 AWG

Number of Poles 3

Package Quantity 1

Phase Three

Phase Connection ABC

Product Height 406.4 mm

Product Length/Depth 139.7 mm

Product Name Eaton Power Defense molded case circuit breaker
