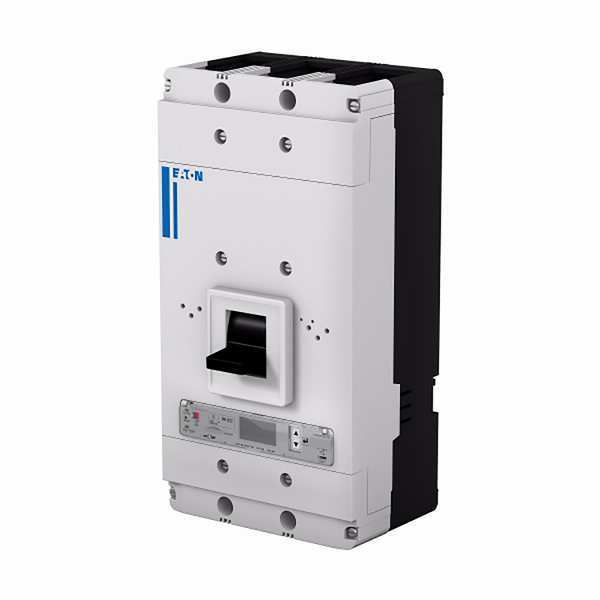

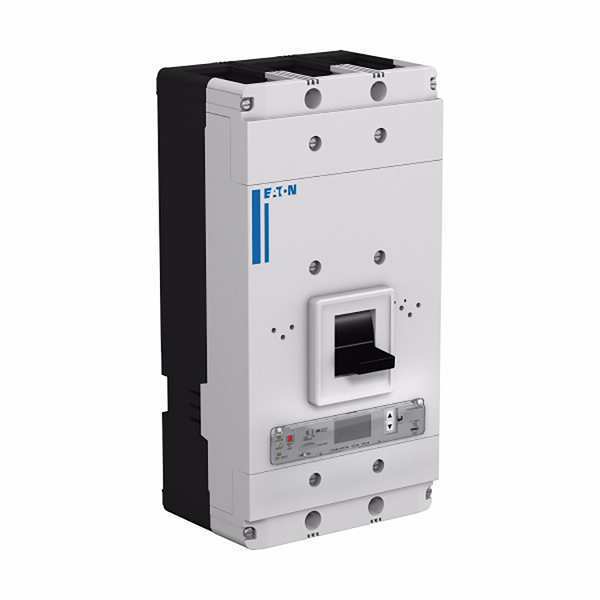

Circuit Breaker, 1200 A, 600VAC, 3 Poles

SKU
Brand Eaton
Categories
Description Circuit Breaker, 1,200 A Amps, AC Voltage Rating 600V AC, Max. AIR Rating 65 kA at 480V AC, Circuit Breaker Type Standard, Number of Poles 3, Terminal Connection Not Applicable, Trip Type Electronic, Phase Three, Phase Connection ABC, Frame Size 1200A/Frame 5, Height 16 in, Width 8.24 in, Depth 5.5 in, Min. Wire Size 400 AWG, Max. Wire Size 3/0 AWG, Max. Operating Temp. 158 Degrees F, Min. Operating Temp. -4 Degrees F, Standards CCC, CSA, IEC, UL
graingerSKU: 61HU58, mscSKU: , zoro_no: G100901921, mongo_id: 65bbe80f9a749db822770268

Web Price

$14,374.99 / each

Qty

Product Details

AC Voltage Rating 600V AC

Amps 1,200 A

Certifications IEC 60947-2;CSA;UL 489;CCC Marked

Circuit Breaker Type Standard

Class Class A

Country of Origin (subject to change) United States

Curve Type A

Depth 5.5 in

Features Relays

Frame 5

Frame Size 1200A/Frame 5

Frame Type Complete Breaker

Height 16 in

High Amp Trip Setting 1200 A

Interrupt Rating 65 kA at 480V AC, 100 kA at 240V

Interrupt Rating Range 100 kAIC @240V (UL);50 kAIC Icu/ 30 kAIC Ics/ 105 kAIC Icm @480V Brazil (IEC);30 kAIC Icu/ 25 kAIC Ics/ 63 kAIC Icm @525V South Africa (IEC);35 kAIC @600/347V (UL);100 kAIC Icu/ 100 kAIC Ics/ 220 kAIC Icm @240V (IEC);65 kAIC @480/277V (UL);70 kAIC Icu/ 53 kAIC Ics/ 154 kAIC Icm @380-415V (IEC);15 kAIC Icu/ 7.5 kAIC Ics/ 31.5 kAIC Icm @690V (IEC);50 kAIC Icu/ 40 kAIC Ics/ 105 kAIC Icm @440V (IEC)

Max. AIR Rating 65 kA at 480V AC

Max. Operating Temp. 158 Degrees F

Max. Wire Size 3/0 AWG

Min. Operating Temp. -4 Degrees F

Min. Wire Size 400 AWG

Number of Poles 3

Package Quantity 1

Phase Three

Phase Connection ABC

Product Name Eaton Power Defense molded case circuit breaker

Standards CCC, CSA, IEC, UL

Terminal Connection Not Applicable
