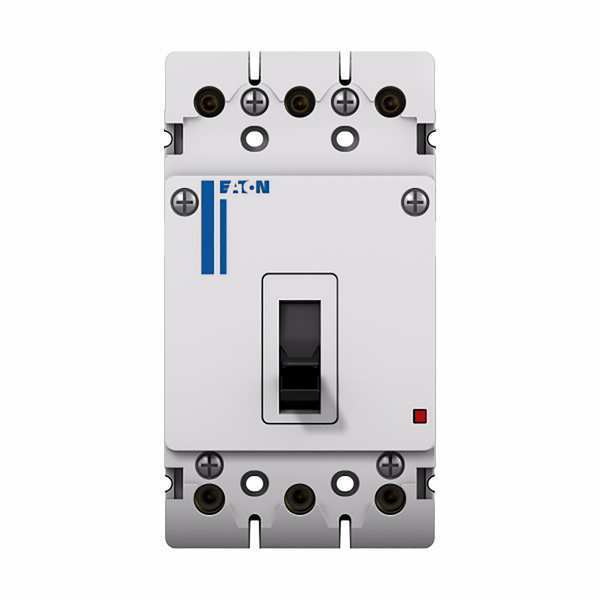

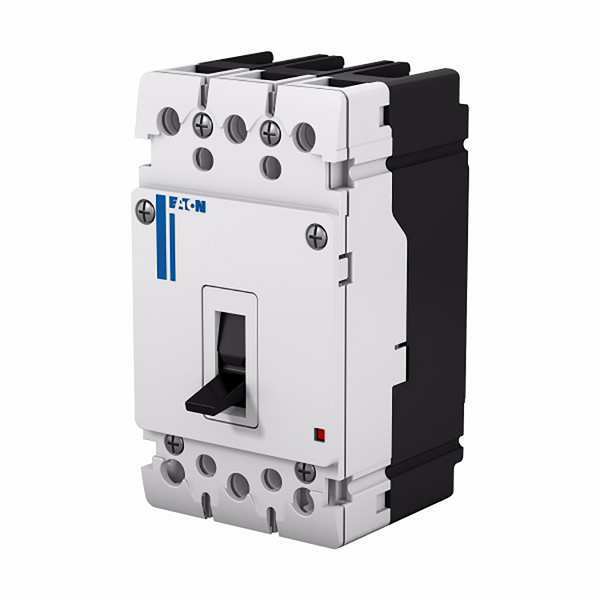

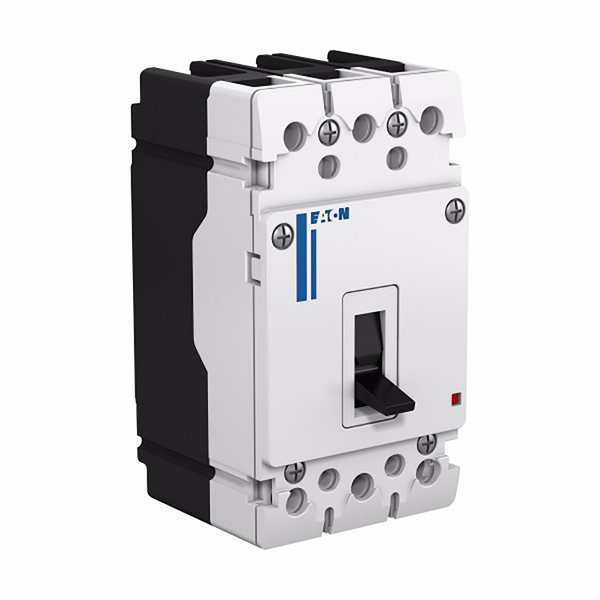

Circuit Breaker, 20 A, 600VAC, 3 Poles

SKU
Brand Eaton
Categories
Description Circuit Breaker, 20 A Amps, AC Voltage Rating 600V AC, Max. AIR Rating 65 kA at 480V AC, Circuit Breaker Type Standard, Number of Poles 3, DC Voltage Rating Not Rated, Terminal Connection Standard Line and Load Lugs, Trip Type Thermal Magnetic, Phase Three, Instantaneous Trip Fixed, Phase Connection ABC, Frame Size 125A/Frame 1, Height 4.5 in, Width 3 in, Depth 3 in, Min. Wire Size 14 AWG, Max. Wire Size 3/0 AWG, Max. Operating Temp. 158 Degrees F, Min. Operating Temp. -4 Degrees F
graingerSKU: 61HT56, mscSKU: , zoro_no: G100901839, mongo_id: 65bbe7bf9a749db8227538ab

Web Price

$987.49 / each

Qty

Product Details

AC Voltage Rating 600V AC

Amps 20 A

Certifications UL 489;CCC Marked;CSA;IEC 60947-2

Circuit Breaker Type Standard

Class Class A

Country of Origin (subject to change) Dominican Republic

Curve Type A

DC Voltage Rating Not Rated

Depth 3 in

Frame 1

Frame Size 125A/Frame 1

Frame Type Complete Breaker

Height 4.5 in

Instantaneous Trip Fixed

Interrupt Rating 65 kA at 480V AC, 25 kA at 600V

Interrupt Rating Range 25 kAIC @600V (UL/CSA);100 kAIC @240V (UL);35 kAIC Icu @125 Vdc;65 kAIC @480V (UL);70 kAIC Icu/ 50 kAIC Ics/ 154 kAIC Icm @380-415V (IEC);100 kAIC Icu/ 100 kAIC Ics/ 220 kAIC Icm @240V (IEC);35 kAIC Icu @250 Vdc

Max. AIR Rating 65 kA at 480V AC

Max. Operating Temp. 158 Degrees F

Max. Wire Size 3/0 AWG

Min. Operating Temp. -4 Degrees F

Min. Wire Size 14 AWG

Number of Poles 3

Package Quantity 1

Phase Three

Phase Connection ABC

Product Name Eaton Power Defense molded case circuit breaker

Promotion Restriction Not eligible for promotion

Rated Operation Voltage (UE) at AC - Max 600
