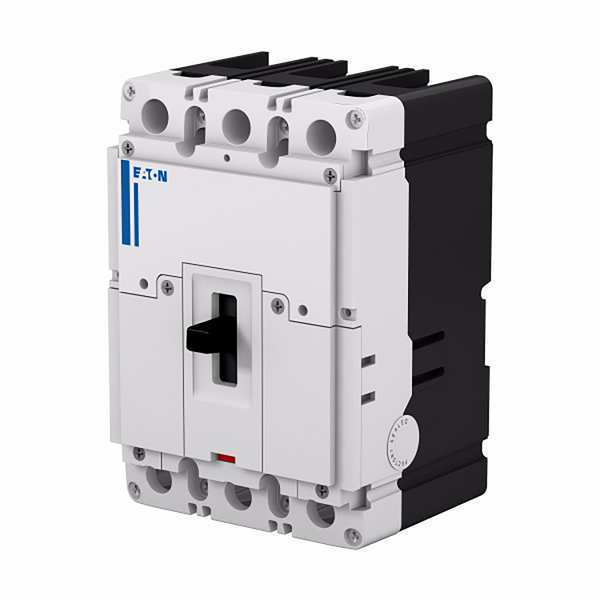

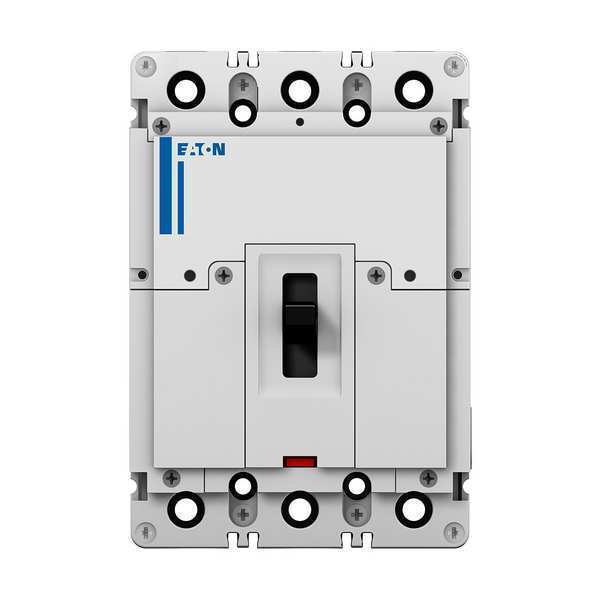

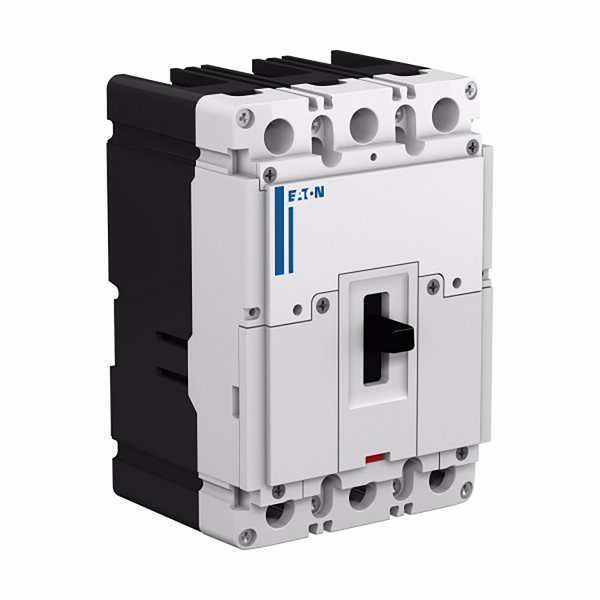

Circuit Breaker, 200 A, 600VAC, 3 Poles

SKU
Brand Eaton
Categories
Description Circuit Breaker, 200 A Amps, AC Voltage Rating 600V AC, Max. AIR Rating 50 kA at 480V AC, Circuit Breaker Type Standard, Number of Poles 3, DC Voltage Rating Not Rated, Terminal Connection Standard Line and Load Lugs, Trip Type Thermal Magnetic, Phase Three, Instantaneous Trip Fixed, Phase Connection ABC, Frame Size 225A/Frame 2, Height 6 in, Width 4.11 in, Depth 3.5 in, Min. Wire Size 14 AWG, Max. Wire Size 1/0 AWG, Max. Operating Temp. 158 Degrees F, Min. Operating Temp. -4 Degrees F
graingerSKU: 61HU33, mscSKU: , zoro_no: G300901936, mongo_id: 65bbe7e49a749db822761d43

Web Price

$1,641.24 / each

Qty

Product Details

AC Voltage Rating 600V AC

Amps 200 A

Certifications UL 489;CSA;IEC 60947-2;CCC Marked

Circuit Breaker Type Standard

Class Class A

Country of Origin (subject to change) Dominican Republic

Curve Type A

DC Voltage Rating Not Rated

Depth 3.5 in

Frame 2

Frame Size 225A/Frame 2

Frame Type Complete Breaker

Height 6 in

Instantaneous Trip Fixed

Interrupt Rating 50 kA at 480V AC, 10 kA Icu/5 kA Ics/21 kA Icm at 690V

Interrupt Rating Range 10 kAIC Icu/ 5 kAIC Ics/ 21 kAIC Icm @690V (IEC);35 kAIC Icu/ 35 kAIC Ics/ 73.5 kAIC Icm @440V (IEC);25 kAIC @600V (UL/CSA);35 kAIC Icu/ 22.5 kAIC Ics/ 73.5 kAIC Icm @480V Brazil (IEC);85 kAIC Icu/ 85 kAIC Ics/ 187 kAIC Icm @240V (IEC);30/25 kAIC Icu/ 15/13 kAIC Ics @525V South Africa (IEC);50 kAIC @480V (UL);10 kAIC Icu @250 Vdc;50 kAIC Icu/ 50 kAIC Ics/ 105 kAIC Icm @380-415V (IEC);85 kAIC @240V (UL);10 kAIC Icu @125 Vdc

Max. AIR Rating 50 kA at 480V AC

Max. Operating Temp. 158 Degrees F

Max. Wire Size 1/0 AWG

Min. Operating Temp. -4 Degrees F

Min. Wire Size 14 AWG

Number of Poles 3

Package Quantity 1

Phase Three

Phase Connection ABC

Product Height 152.4 mm

Product Length/Depth 88.9 mm

Product Name Eaton Power Defense molded case circuit breaker
