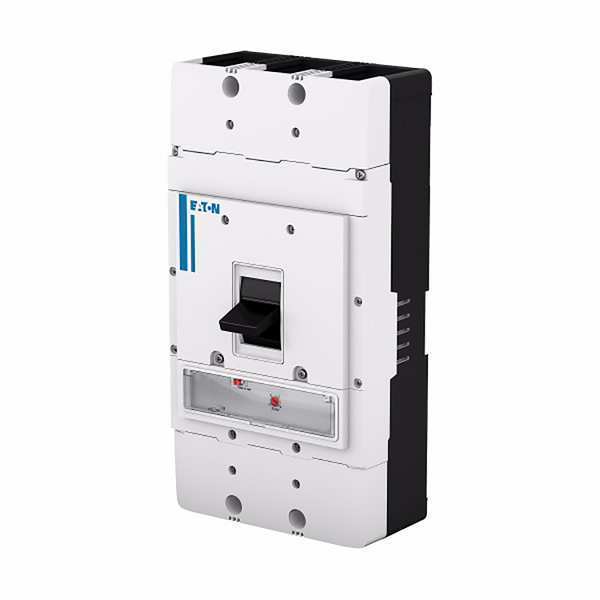

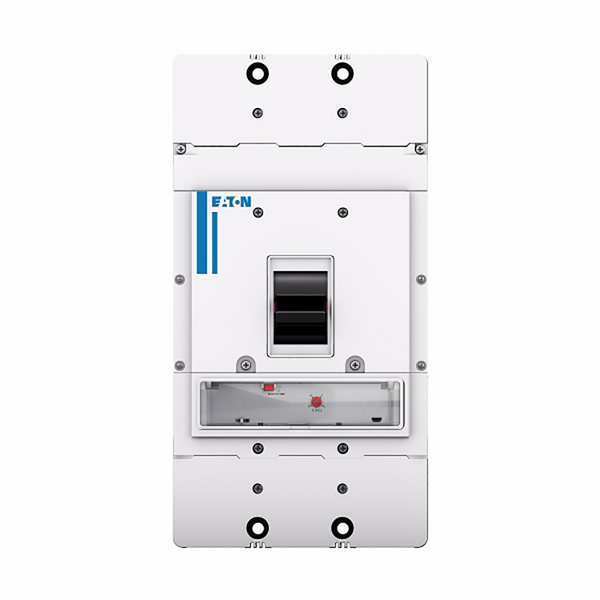

Circuit Breaker, 500 A, 600VAC, 3 Poles

SKU
Brand Eaton
Categories
Description Circuit Breaker, 500 A Amps, AC Voltage Rating 600V AC, Max. AIR Rating 35 kA at 480V AC, Circuit Breaker Type Standard, Number of Poles 3, Terminal Connection Standard Line and Load Lugs, Trip Type Thermal Magnetic, Phase Three, Instantaneous Trip Fixed; Adjustable, Phase Connection ABC, Frame Size 800A/Frame 4, Min. Wire Size 500 AWG, Max. Wire Size 1 AWG, Max. Operating Temp. 158 Degrees F, Min. Operating Temp. -4 Degrees F, Standards CCC, CSA, IEC, UL
graingerSKU: 61HU48, mscSKU: , zoro_no: G300901875, mongo_id: 65bbe96f22d7a989a99551e8

Web Price

$3,869.99 / each

Qty

Product Details

AC Voltage Rating 600V AC

Amps 500 A

Certifications IEC 60947-2;CCC Marked;CSA;UL 489

Circuit Breaker Type Standard

Class Class A

Country of Origin (subject to change) United States

Curve Type A

Depth 111.2 mm

Frame 4

Frame Size 800A/Frame 4

Frame Type Complete Breaker

Height 406.4 mm

Instantaneous Trip Fixed; Adjustable

Interrupt Rating 35 kA at 480V AC, 25 kA Icu/20 kA Ics/52.5 kA Icm at 480V

Interrupt Rating Range 25 kAIC Icu/ 20 kAIC Ics/ 52.5 kAIC Icm @480V Brazil (IEC);20 kAIC Icu/ 16.5 kAIC Ics/ 42 kAIC Icm @525V South Africa (IEC);8 kAIC Icu/ 4 kAIC Ics/ 16.8 kAIC Icm @690V (IEC);18 kAIC @600V (UL/CSA);55 kAIC Icu/ 55 kAIC Ics/ 121 kAIC Icm @240V (IEC);65 kAIC @240V (UL);22 kAIC Icu @250 Vdc;30 kAIC Icu/ 22.5 kAIC Ics/ 63 kAIC Icm @440V (IEC);36 kAIC Icu/ 36 kAIC Ics/ 75.6 kAIC Icm @380-415V (IEC);35 kAIC @480V (UL)

Max. AIR Rating 35 kA at 480V AC

Max. Operating Temp. 158 Degrees F

Max. Wire Size 1 AWG

Min. Operating Temp. -4 Degrees F

Min. Wire Size 500 AWG

Number of Poles 3

Package Quantity 1

Phase Three

Phase Connection ABC

Product Name Eaton Power Defense molded case circuit breaker

Standards CCC, CSA, IEC, UL

Terminal Connection Standard Line and Load Lugs
