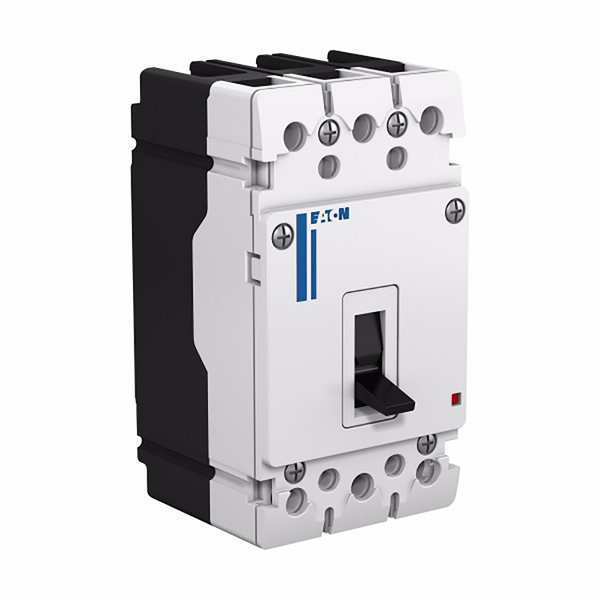

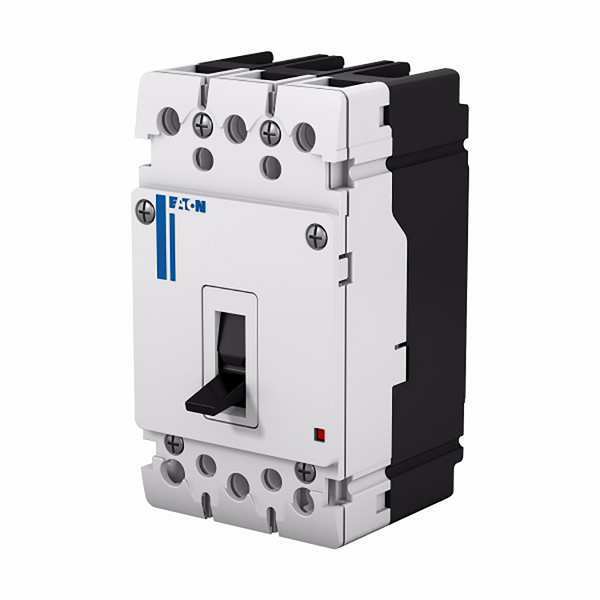

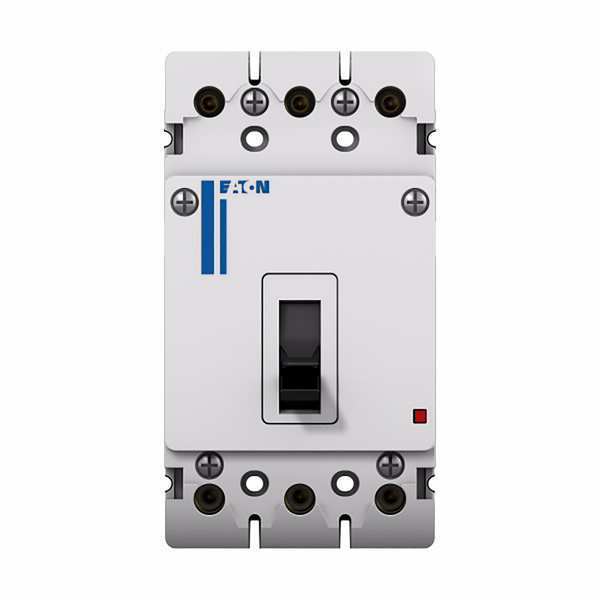

Circuit Breaker, 60 A, 600VAC, 3 Poles

SKU
Brand Eaton
Categories
Description Circuit Breaker, 60 A Amps, AC Voltage Rating 600V AC, Max. AIR Rating 18 kA at 480V AC, Circuit Breaker Type Standard, Number of Poles 3, Terminal Connection Standard Line and Load Lugs, Trip Type Thermal Magnetic, Phase Three, Instantaneous Trip Fixed, Phase Connection ABC, Frame Size 125A/Frame 1, Min. Wire Size 14 AWG, Max. Wire Size 3/0 AWG, Max. Operating Temp. 158 Degrees F, Min. Operating Temp. -4 Degrees F, Standards CCC, CSA, IEC, UL
graingerSKU: 61HU62, mscSKU: , zoro_no: G100901907, mongo_id: 65bbea5822d7a989a99ab510

Web Price

$528.74 / each

Qty

Product Details

AC Voltage Rating 600V AC

Amps 60 A

Certifications CSA;IEC 60947-2;UL 489;CCC Marked

Circuit Breaker Type Standard

Class Class A

Country of Origin (subject to change) Dominican Republic

Curve Type A

Depth 76 mm

Frame 1

Frame Size 125A/Frame 1

Frame Type Complete Breaker

Height 139.7 mm

Instantaneous Trip Fixed

Interrupt Rating 18 kA at 480V AC, 10 kA at 125V DC

Interrupt Rating Range 10 kAIC Icu @125 Vdc;10 kAIC Icu @250 Vdc;25 kAIC @240V (UL);18 kAIC @480V (UL);25 kAIC Icu/ 25 kAIC Ics/ 52.5 kAIC Icm @240V (IEC);10 kAIC @600V (UL/CSA);20 kAIC Icu/ 20 kAIC Ics/ 42 kAIC Icm @380-415V (IEC)

Max. AIR Rating 18 kA at 480V AC

Max. Operating Temp. 158 Degrees F

Max. Wire Size 3/0 AWG

Min. Operating Temp. -4 Degrees F

Min. Wire Size 14 AWG

Number of Poles 3

Package Quantity 1

Phase Three

Phase Connection ABC

Product Height 101.6 mm

Product Name Eaton Power Defense molded case circuit breaker

Standards CCC, CSA, IEC, UL
