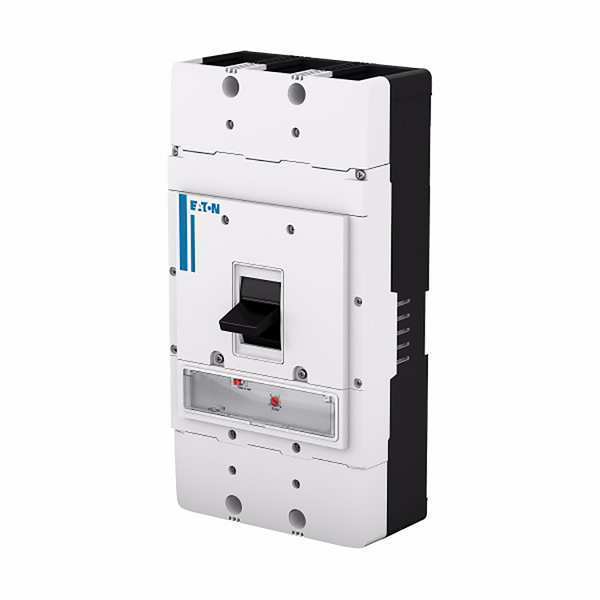

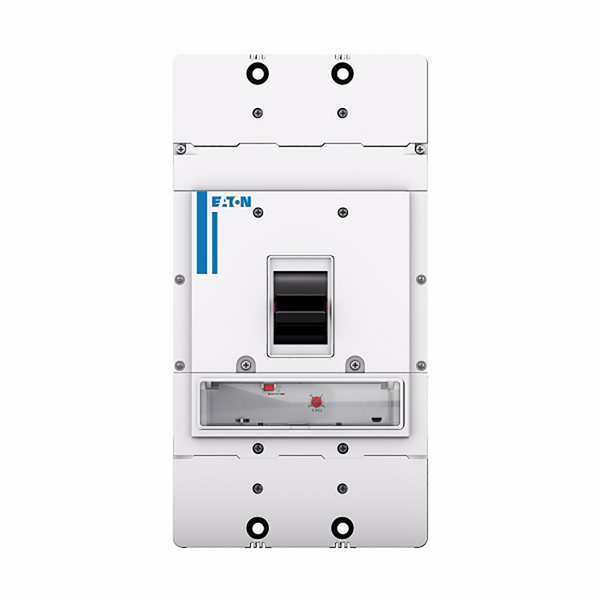

Circuit Breaker, 600 A, 600VAC, 3 Poles

SKU
Brand Eaton
Categories
Description Circuit Breaker, 600 A Amps, AC Voltage Rating 600V AC, Max. AIR Rating 35 kA at 480V AC, For Use With Power Defense, Circuit Breaker Type Standard, Number of Poles 3, DC Voltage Rating Not Rated, Terminal Connection Standard Line and Load Lugs, Trip Type Thermo Magnetic, Phase Three, Instantaneous Trip Fixed; Adjustable, Phase Connection ABC, Frame Size 800A/Frame 4, Height 16 in, Width 8.25 in, Depth 4.38 in, Min. Wire Size 500 AWG, Max. Wire Size 1 AWG, Max. Operating Temp. 158 Degrees F
graingerSKU: null, mscSKU: null, zoro_no: G800901856, mongo_id: 65bbe5f53aaddbd5a9ff8d9e

Web Price

$3,793.74 / each

Qty

Product Details

AC Voltage Rating 600V AC

Amps 600 A

Certifications UL 489;CCC Marked;CSA;IEC 60947-2

Circuit Breaker Type Standard

Class Class A

Country of Origin (subject to change) United States

Curve Type A

DC Voltage Rating Not Rated

Depth 4.38 in

For Use With Power Defense

Frame 4

Frame Size 800A/Frame 4

Frame Type Complete Breaker

Height 16 in

Instantaneous Trip Fixed; Adjustable

Interrupt Rating 35 kA at 480V AC, 65 kA at 240V

Interrupt Rating Range 65 kAIC @240V (UL);18 kAIC @600V (UL/CSA);25 kAIC Icu/ 20 kAIC Ics/ 52.5 kAIC Icm @480V Brazil (IEC);35 kAIC @480V (UL);55 kAIC Icu/ 55 kAIC Ics/ 121 kAIC Icm @240V (IEC);36 kAIC Icu/ 36 kAIC Ics/ 75.6 kAIC Icm @380-415V (IEC);20 kAIC Icu/ 16.5 kAIC Ics/ 42 kAIC Icm @525V South Africa (IEC);22 kAIC Icu @250 Vdc;8 kAIC Icu/ 4 kAIC Ics/ 16.8 kAIC Icm @690V (IEC);30 kAIC Icu/ 22.5 kAIC Ics/ 63 kAIC Icm @440V (IEC)

Max. AIR Rating 35 kA at 480V AC

Max. Operating Temp. 158 Degrees F

Max. Wire Size 1 AWG

Min. Operating Temp. -4 Degrees F

Min. Wire Size 500 AWG

Number of Poles 3

Package Quantity 1

Phase Three

Phase Connection ABC

Product Height 406.4 mm

Product Length/Depth 111.2 mm

Product Name Eaton Power Defense molded case circuit breaker
