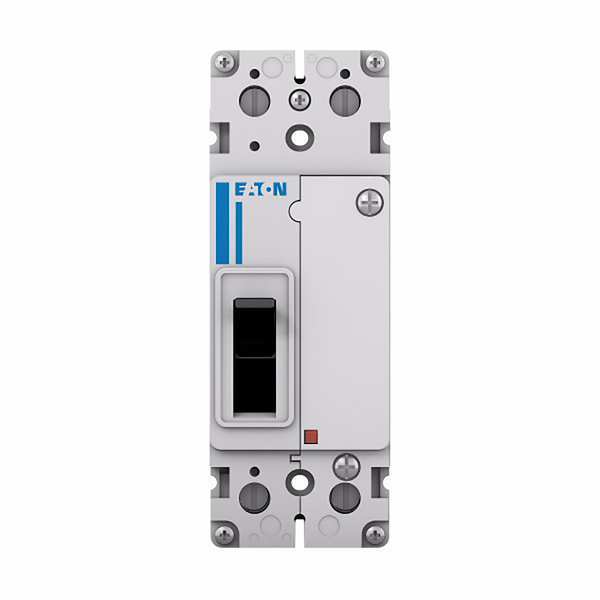

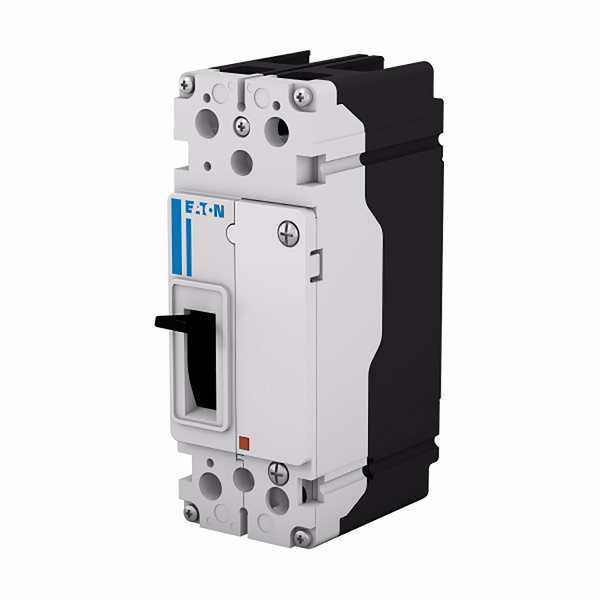

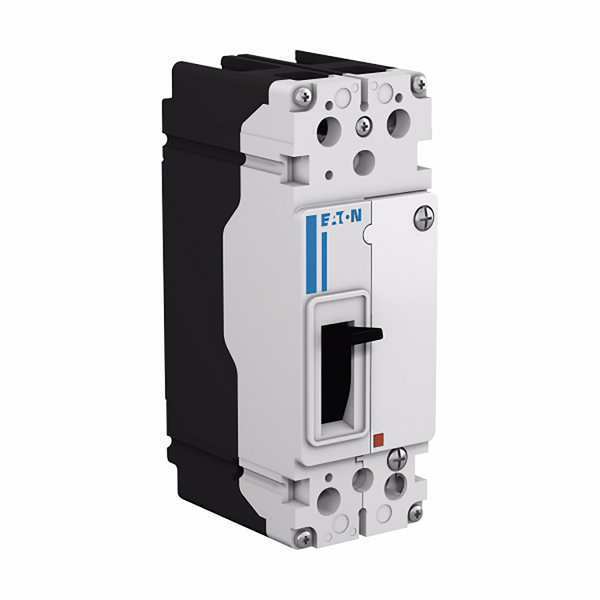

Circuit Breaker, 90 A, 600VAC, 2 Poles

SKU
Brand Eaton
Categories
Description Circuit Breaker, 90 A Amps, AC Voltage Rating 600V AC, Max. AIR Rating 65 kA at 480V AC, Circuit Breaker Type Standard, Number of Poles 2, Terminal Connection Standard Line and Load Lugs, Trip Type Thermal Magnetic, Phase Three, Instantaneous Trip Fixed, Phase Connection AB, Frame Size 125A/Frame 1, Min. Wire Size 14 AWG, Max. Wire Size 3/0 AWG, Max. Operating Temp. 158 Degrees F, Min. Operating Temp. -4 Degrees F, Standards CCC, CSA, IEC, UL
graingerSKU: null, mscSKU: null, zoro_no: G900901817, mongo_id: 65bbe67d3aaddbd5a9032300

Web Price

$934.99 / each

Qty

Product Details

AC Voltage Rating 600V AC

Amps 90 A

Certifications IEC 60947-2;CSA;UL 489;CCC Marked

Circuit Breaker Type Standard

Class Class A

Country of Origin (subject to change) Dominican Republic

Curve Type A

Depth 76 mm

Frame 1

Frame Size 125A/Frame 1

Frame Type Complete Breaker

Height 139.7 mm

Instantaneous Trip Fixed

Interrupt Rating 65 kA at 480V AC, 65 kA at 480V

Interrupt Rating Range 65 kAIC @480V (UL);25 kAIC @600V (UL/CSA);35 kAIC Icu @125 Vdc;100 kAIC @240V (UL);100 kAIC Icu/ 100 kAIC Ics/ 220 kAIC Icm @240V (IEC);70 kAIC Icu/ 50 kAIC Ics/ 154 kAIC Icm @380-415V (IEC);35 kAIC Icu @250 Vdc

Max. AIR Rating 65 kA at 480V AC

Max. Operating Temp. 158 Degrees F

Max. Wire Size 3/0 AWG

Min. Operating Temp. -4 Degrees F

Min. Wire Size 14 AWG

Number of Poles 2

Package Quantity 1

Phase Three

Phase Connection AB

Product Name Eaton Power Defense molded case circuit breaker

Rated Operation Voltage (UE) at AC - Max 600

Standards CCC, CSA, IEC, UL
