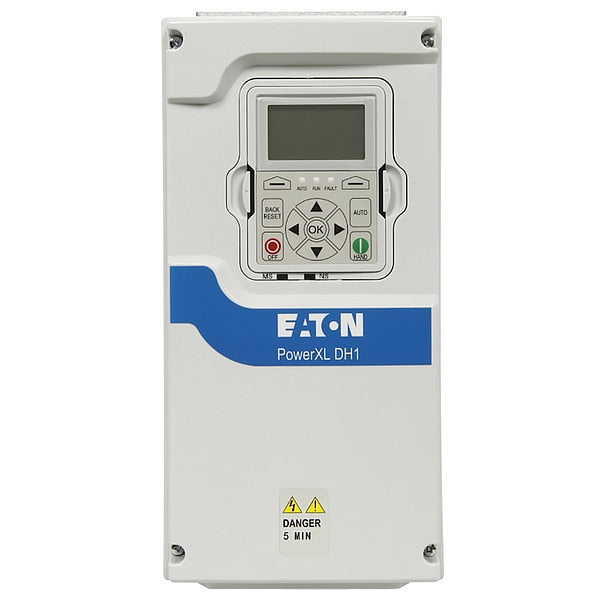

Enclosed Variable Frequency Drive, White

SKU
Brand Eaton
Categories
Description Enclosed Variable Frequency Drive, Input Voltage 208V AC, Input Phase AC Three, Input Frequency 50/60 Hz, Maximum Output Power 1 hp, Maximum Output Current 4.6 A, Output Voltage 208V AC, Output Phase AC Three, Output Frequency Range 0 to 400 Hz (standard), Enclosure Rating NEMA 1
graingerSKU: 798FJ0, mscSKU: , zoro_no: G506439165, mongo_id: 65bbe9ad22d7a989a996d804

Web Price

$6,966.24 / each

Qty

Product Details

Adjustable Acceleration Time 0.1 to 3,000 sec

Adjustable Deceleration Time 0.1 to 3,000 sec

Application HVAC AC Drive

Brake Chopper Included No

Color White

Control Method Keypad

Control Type Keypad

Country of Origin (subject to change) Dominican Republic

Digital Readout Continuous Output Current; Frequency Resolution; Initial Output Current; Output Frequency; Output Voltage; Overload Current

Dynamic Braking Yes

Enclosure Totally Enclosed

Enclosure Rating NEMA 1

Ethernet Port Included No

Form Factor 0.01 Hz Resolution

Input Frequency 50/60 Hz

Input Phase AC Three

Input Type Analog, Digital

Input Voltage 208V AC

Input Voltage Range 380 to 500V AC

Maximum Output Current 4.6 A

Maximum Output Power 1 hp

Number of Inputs (8) Digital In, (2) Analog In

Number of Outputs (3) Relay Out, (1) Digital Out, (2) Analog Out

Output Frequency Range 0 to 400 Hz (standard)

Output Phase AC Three

Output Type Analog, Digital

Output Voltage 208V AC

Output Voltage Range 208V AC

Package Quantity 1

Protection DC Bus Overvoltage, Input Phase Supervision, Motor Overload, Motor Phase Supervision, Motor Stall, Motor Underload, Overcurrent, Overvoltage, Short-Circuit Protection of 24 V Reference Voltage, Surge, Undervoltage, Unit Overtemperature

Series PowerXL DH1

Standards CE Certified, CSA Certified C22.2 No. 274-13, cUL Listed, EAC, EN 61800-5-1, RCM (C-Tick), RoHS Compliant, UL Listed, UL Listed 508C

Start/Stop Control Automatic, Manual, via Communication

Style Enclosed HVAC Drive with Bypass

Torque Application Constant Torque, Variable Torque

With Bypass / No Bypass With Bypass

With Line Contactor / No Line Contactor 2 Contactor Bypass
