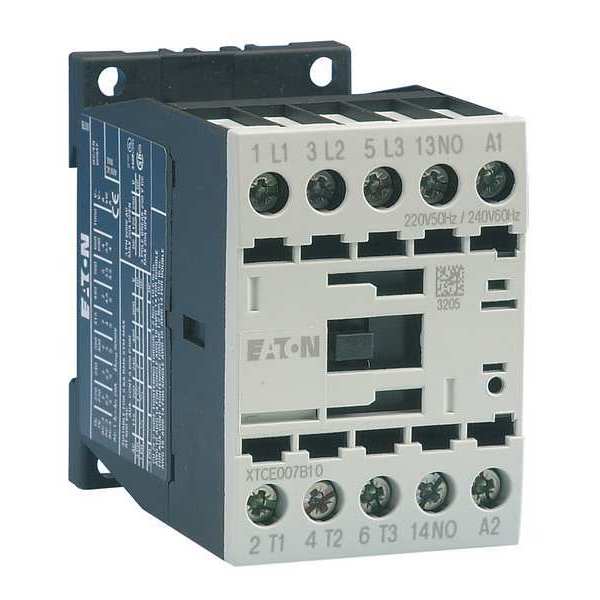

IEC Magnetic Contactor, 3 Poles, 208 V AC, 12 A, Reversing: No

SKU
Brand Eaton
Categories
Description IEC Magnetic Contactor, Auxiliary Contact Form 1NO, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 208V AC, Number of Poles 3, Full Load Current - Inductive 12 A, Full Load Current - Resistive 22 A, Reversing Capability Non-Reversing, Overall Height 2 in, Overall Width 3 in, Terminal Connection Type Screw Terminals, Frame Size B, Mounting Style DIN Rail, Panel, Series XT, Number of Auxillary Contacts 1, Contactor Style IEC, Horsepower @ Three Phase - 240V AC 3 hp
graingerSKU: 4TYU5, mscSKU: , zoro_no: G1258327, mongo_id: 65bbe95522d7a989a994ccab

Web Price

$211.24 / each

Qty

Product Details

Action Non-Reversing

Amperage Rating 12A

Aux. Contact Configuration 1NO

Auxiliary Contact Form 1NO

Certifications UL Listed;CSA Certified;IEC 60947;EN 60947

Coil Voltage 208V AC

Coil Volts 208 V AC

Compliances CE Marked

Contact Configuration 1 NO

Contactor Style IEC

Country of Origin (subject to change) Romania

Depth 2.95 in

Electrical Connection Screw Terminals

Electrical Operating Durability 1,000,000

Embedded Surge Suppressor Yes

Enclosure NEMA Rating No Enclosure

Frame / Series / Class / Code Frame B

Frame Size B

Frequency 60 Hz

Frequency Rating 60 Hz

Full Load Amps-Inductive 12 A

Full Load Amps-Resistive 22 A

Full Load Current - Inductive 12 A

Full Load Current - Resistive 22 A

Height 1.77 in

Horsepower @ Single Phase - 120V AC 1 hp

Horsepower @ Single Phase - 240V AC 2 hp

Horsepower @ Three Phase - 208V AC 3 hp

Horsepower @ Three Phase - 240V AC 3 hp

Horsepower @ Three Phase - 480V AC 10 hp

Horsepower @ Three Phase - 600V AC 10 hp

HP @ 1 Phase - 120V 1 hp

HP @ 1 Phase - 230V 2

HP @ 1 Phase - 240V 2 hp

HP @ 3 Phase - 208V 3 hp

HP @ 3 Phase - 240V 3 hp

HP @ 3 Phase - 480V 10 hp

HP @ 3 Phase - 575V 10 hp

Hp Rating - Max 1, 2, 2/ 3, 3, 10, 10 hp (1/3PH @115,200,230/200,230,460,575 V)

Hz_ 60

Includes Auxiliary Contacts Yes

IP Rating IP20

Maximum Operating Temperature 122 Degrees F

Maximum Voltage Rating 690V AC

Mechanical Operating Durability 10,000,000

Minimum Operating Temperature -13 Degrees F

Mounting Style DIN Rail, Panel

NEMA Enclosure Material Not Applicable

NEMA Enclosure Rating No Enclosure

NEMA Size Not Applicable

Number of Auxillary Contacts 1

Number of Poles 3

Overall Depth 3 in

Overall Height 2 in

Overall Width 3 in

Package Quantity 1

Product Height 2 in

Product Length/Depth 3 in

Product Name Eaton XT IEC contactor

Product Width 3 in

Response Time Less Than12 msec (DC Operated Opening Delay), Less Than18 msec (AC Operated Opening Delay), Less Than21 msec (AC Operated Closing Delay), Less Than31 msec (DC Operated Opening Delay)

Reversing No

Reversing Capability Non-Reversing

Series XT

Standards CE, CSA, EN 60947, IEC 60947, RoHS, UL Listed

Terminal Connection Type Screw Terminals

Type Full voltage non-reversing contactor

Width 1.77 in
