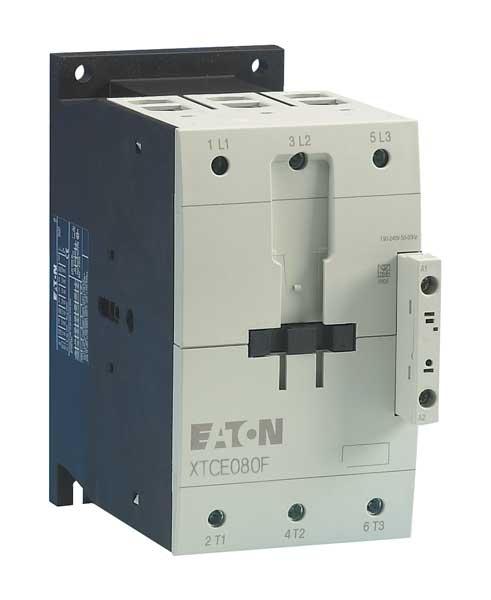

IEC Magnetic Contactor, 3 Poles, 208 V AC, 80 A, Reversing: No

SKU
Brand Eaton
Categories
Description IEC Magnetic Contactor, Auxiliary Contact Form Auxiliary Contacts Not Included, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 208V AC, Number of Poles 3, Full Load Current - Inductive 80 A, Full Load Current - Resistive 110 A, Reversing Capability Non-Reversing, Overall Height 6.69 in, Overall Width 3.54 in, Terminal Connection Type Screw Terminals, Frame Size F, Mounting Style DIN Rail, Panel, Series XT, Number of Auxillary Contacts 0, Contactor Style IEC
graingerSKU: null, mscSKU: null, zoro_no: G0717166, mongo_id: 65bbe6013aaddbd5a9ffee81

Web Price

$539.99 / each

Qty

Product Details

Action Non-Reversing

Amperage Rating 80A

Aux. Contact Configuration No Auxiliary Contacts

Auxiliary Contact Form Auxiliary Contacts Not Included

Certifications IEC Rated;UL Listed;CSA Certified;EN 60947;IEC 60947

Coil Voltage 208V AC

Coil Volts 208 V AC

Compliances CE Marked

Contact Configuration 0 NO, 0 NC

Contactor Style IEC

Country of Origin (subject to change) Germany

Depth 6.26 in

Electrical Connection Screw Terminals

Electrical Operating Durability 300 (AC-4 400V Ie), 800 (AC-1 400V Ie), 800 (AC-3 400V Ie)

Embedded Surge Suppressor Yes

Enclosure NEMA Rating No Enclosure

Frame F

Frame / Series / Class / Code Frame F

Frame Size F

Frequency 60 Hz

Frequency Rating 60 Hz

Full Load Amps-Inductive 80 A

Full Load Amps-Resistive 110 A

Full Load Current - Inductive 80 A

Full Load Current - Resistive 110 A

Height 3.54 in

Horsepower @ Single Phase - 120V AC 7 1/2 hp

Horsepower @ Single Phase - 240V AC 15 hp

Horsepower @ Three Phase - 208V AC 25 hp

Horsepower @ Three Phase - 240V AC 30 hp

Horsepower @ Three Phase - 480V AC 60 hp

Horsepower @ Three Phase - 600V AC 75 hp

HP @ 1 Phase - 120V 7 1/2 hp

HP @ 1 Phase - 230V 15

HP @ 1 Phase - 240V 15 hp

HP @ 3 Phase - 208V 25 hp

HP @ 3 Phase - 240V 30 hp

HP @ 3 Phase - 480V 60 hp

HP @ 3 Phase - 575V 75 hp

Hp Rating - Max 7.5, 15, 15/ 25, 30, 60, 75 hp (1/3PH @115,200,230/200,230,460,575 V)

Hz_ 60

Includes Auxiliary Contacts No

IP Rating IP20

Maximum Operating Temperature 122 Degrees F

Maximum Voltage Rating 690V AC

Mechanical Operating Durability 10,000,000

Minimum Operating Temperature -13 Degrees F

Mounting Hole Diameter 0.24 in

Mounting Hole Distance - Height 6.14 in

Mounting Hole Distance - Width 2.79 in

Mounting Style DIN Rail, Panel

NEMA Enclosure Material Not Applicable

NEMA Enclosure Rating No Enclosure

NEMA Size Not Applicable

Number of Auxillary Contacts 0

Number of Poles 3

Overall Depth 5.59 in

Overall Height 6.69 in

Overall Width 3.54 in

Package Quantity 1

Product Height 6.69 in

Product Length/Depth 5.59 in

Product Name Eaton XT IEC contactor

Response Time Less Than14 msec (AC Operated Opening Delay), Less Than20 msec (AC Operated Closing Delay), Less Than34 msec (DC Operated Opening Delay), Less Than45 msec (DC Operated Closing Delay)

Reversing No

Reversing Capability Non-Reversing

Series XT

Standards CE, CSA, EN 60947, IEC 60947, IEC Rated, UL Listed

Terminal Connection Type Screw Terminals

Type Full voltage non-reversing contactor

Width 3.54 in
