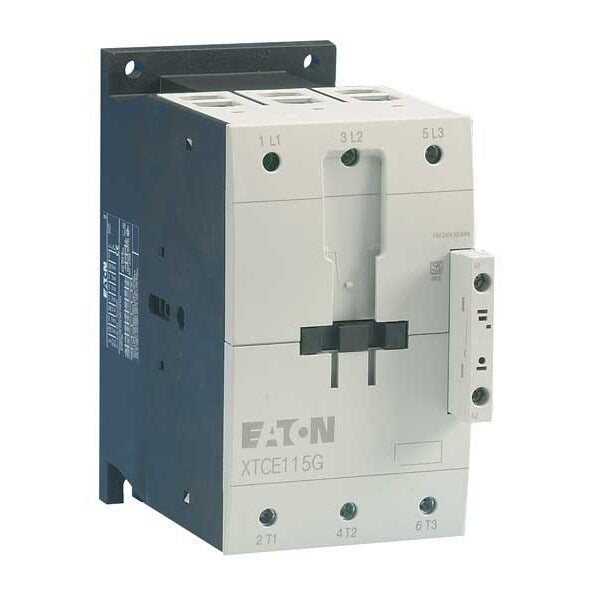

IEC Magnetic Contactor, 3 Poles, 480 V AC, 115 A, Reversing: No

SKU
Brand Eaton
Categories
Description IEC Magnetic Contactor, Auxiliary Contact Form Auxiliary Contacts Not Included, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 480/500V AC, Number of Poles 3, Full Load Current - Inductive 115 A, Full Load Current - Resistive 160 A, Reversing Capability Non-Reversing, Overall Height 6.69 in, Overall Width 4.37 in, Terminal Connection Type Screw Terminals, Frame Size G, Mounting Style DIN Rail, Panel, Series XT, Number of Auxillary Contacts 0, Contactor Style IEC
graingerSKU: 21EP07, mscSKU: , zoro_no: G6362824, mongo_id: 65bbe89c22d7a989a99051e0

Web Price

$839.99 / each

Product Details

Action Non-Reversing

Amperage Rating 115A

Aux. Contact Configuration No Auxiliary Contacts

Auxiliary Contact Form Auxiliary Contacts Not Included

Certifications UL Listed;CSA Certified;IEC Rated

Coil Voltage 480/500V AC

Coil Volts 480 V AC

Compliances CE Marked

Contact Configuration 0 NO, 0 NC

Contactor Style IEC

Country of Origin (subject to change) Germany

Depth 5.59 in

Electrical Connection Screw Terminals

Electrical Operating Durability 300 (AC-4 400V Ie), 800 (AC-1 400V Ie), 800 (AC-3 400V Ie)

Embedded Surge Suppressor Yes

Enclosure NEMA Rating No Enclosure

Frame / Series / Class / Code Frame G

Frame Size G

Frequency 50/60 Hz

Frequency Rating 50-60 Hz

Full Load Amps-Inductive 115 A

Full Load Amps-Resistive 160 A

Full Load Current - Inductive 115 A

Full Load Current - Resistive 160 A

Height 4.37 in

Horsepower @ Single Phase - 120V AC 10 hp

Horsepower @ Single Phase - 240V AC 25 hp

Horsepower @ Three Phase - 208V AC 40 hp

Horsepower @ Three Phase - 240V AC 50 hp

Horsepower @ Three Phase - 480V AC 100 hp

Horsepower @ Three Phase - 600V AC 100 hp

HP @ 1 Phase - 120V 10 hp

HP @ 1 Phase - 230V 25

HP @ 1 Phase - 240V 25 hp

HP @ 3 Phase - 208V 40 hp

HP @ 3 Phase - 240V 50 hp

HP @ 3 Phase - 480V 100 hp

HP @ 3 Phase - 575V 100 hp

Hp Rating - Max 10, 25, 25/ 40, 50, 100, 100 hp (1/3PH @115,200,230/200,230,460,575 V)

Hz_ 50/60

Includes Auxiliary Contacts No

IP Rating IP20

Maximum Operating Temperature 122 Degrees F

Maximum Voltage Rating 690V AC

Mechanical Operating Durability 10,000,000

Minimum Operating Temperature -13 Degrees F

Mounting Hole Diameter 0.24 in

Mounting Hole Distance - Height 6.14 in

Mounting Hole Distance - Width 2.79 in

Mounting Style DIN Rail, Panel

NEMA Enclosure Material Not Applicable

NEMA Enclosure Rating No Enclosure

NEMA Size Not Applicable

Number of Auxillary Contacts 0

Number of Poles 3

Overall Depth 6.3 in

Overall Height 6.69 in

Overall Width 4.37 in

Package Quantity 1

Phase 3

Product Height 170 mm

Product Length/Depth 160 mm

Product Name Eaton XT IEC contactor

Product Width 111 mm

Response Time Less Than30 msec (DC Operated Opening Delay), Less Than33 msec (AC Operated Closing Delay), Less Than35 msec (DC Operated Closing Delay), Less Than41 msec (AC Operated Opening Delay)

Reversing No

Reversing Capability Non-Reversing

Series XT

Standards CE, CSA, IEC Rated, UL Listed

Terminal Connection Type Screw Terminals

Type Full voltage non-reversing contactor

Width 4.37 in
