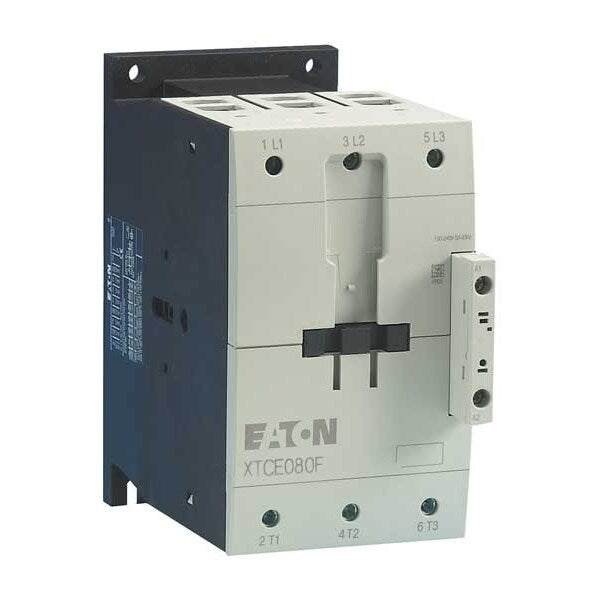

IEC Magnetic Contactor, 3 Poles, 480 V AC, 95 A, Reversing: No

SKU
Brand Eaton
Categories
Description IEC Magnetic Contactor, Auxiliary Contact Form Auxiliary Contacts Not Included, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 415/480V AC, Number of Poles 3, Full Load Current - Inductive 95 A, Full Load Current - Resistive 130 A, Reversing Capability Non-Reversing, Overall Height 6.69 in, Overall Width 3.54 in, Terminal Connection Type Screw Terminals, Frame Size F, Mounting Style DIN Rail, Panel, Series XT, Number of Auxillary Contacts 0, Contactor Style IEC
graingerSKU: 4TZE5, mscSKU: , zoro_no: G0616935, mongo_id: 65bbe6673aaddbd5a9029d5c

Web Price

$669.99 / each

Qty

Product Details

Action Non-Reversing

Amperage Rating 95A

Aux. Contact Configuration No Auxiliary Contacts

Auxiliary Contact Form Auxiliary Contacts Not Included

Certifications UL Listed;IEC Rated;CSA Certified;EN 60947;IEC 60947

Coil Voltage 415/480V AC

Coil Volts 480 V AC

Compliances CE Marked

Contact Configuration 0 NO, 0 NC

Contactor Style IEC

Country of Origin (subject to change) Germany

Depth 6.26 in

Electrical Connection Screw Terminals

Electrical Operating Durability 300 (AC-4 400V Ie), 800 (AC-1 400V Ie), 800 (AC-3 400V Ie)

Embedded Surge Suppressor Yes

Enclosure NEMA Rating No Enclosure

Frame F

Frame / Series / Class / Code Frame F

Frame Size F

Frequency 50/60 Hz

Frequency Rating 50-60 Hz

Full Load Amps-Inductive 95 A

Full Load Amps-Resistive 130 A

Full Load Current - Inductive 95 A

Full Load Current - Resistive 130 A

Height 3.54 in

Horsepower @ Single Phase - 120V AC 7 1/2 hp

Horsepower @ Single Phase - 240V AC 15 hp

Horsepower @ Three Phase - 208V AC 40 hp

Horsepower @ Three Phase - 240V AC 50 hp

Horsepower @ Three Phase - 480V AC 100 hp

Horsepower @ Three Phase - 600V AC 125 hp

HP @ 1 Phase - 120V 7 1/2 hp

HP @ 1 Phase - 230V 15

HP @ 1 Phase - 240V 15 hp

HP @ 3 Phase - 208V 25 hp

HP @ 3 Phase - 240V 40 hp

HP @ 3 Phase - 480V 75 hp

HP @ 3 Phase - 575V 100 hp

Hp Rating - Max 40, 50, 100, 125 hp (3PH @200,230,460,575 V)

Hz_ 50/60

Includes Auxiliary Contacts No

IP Rating IP20

Maximum Operating Temperature 122 Degrees F

Maximum Voltage Rating 690V AC

Mechanical Operating Durability 10,000,000

Minimum Operating Temperature -13 Degrees F

Mounting Hole Diameter 0.24 in

Mounting Hole Distance - Height 6.14 in

Mounting Hole Distance - Width 2.79 in

Mounting Style DIN Rail, Panel

NEMA Enclosure Material Not Applicable

NEMA Enclosure Rating No Enclosure

NEMA Size Not Applicable

Number of Auxillary Contacts 0

Number of Poles 3

Overall Depth 5.59 in

Overall Height 6.69 in

Overall Width 3.54 in

Package Quantity 1

Product Height 6.69 in

Product Length/Depth 5.59 in

Product Name Eaton XT IEC contactor

Response Time Less Than14 msec (AC Operated Opening Delay), Less Than20 msec (AC Operated Closing Delay), Less Than34 msec (DC Operated Opening Delay), Less Than45 msec (DC Operated Closing Delay)

Reversing No

Reversing Capability Non-Reversing

Series XT

Standards CE, CSA, EN 60947, IEC 60947, IEC Rated, UL Listed

Terminal Connection Type Screw Terminals

Type Full voltage non-reversing contactor

Width 3.54 in
