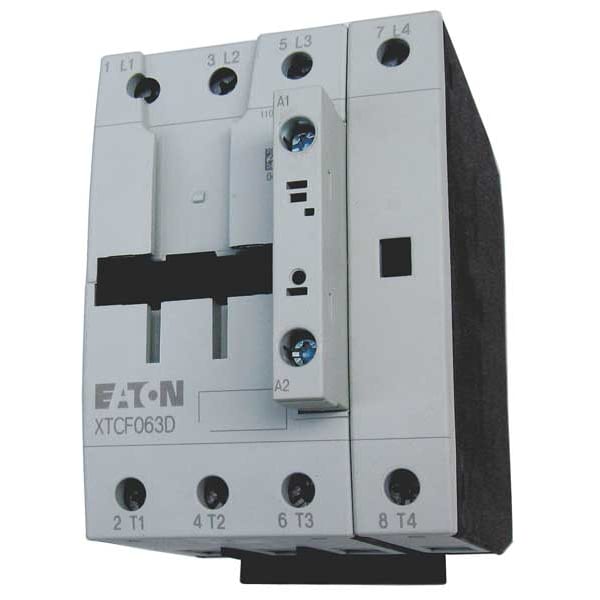

IEC Magnetic Contactor, 4 Poles, 120 V AC, 40 A, Reversing: No

SKU
Brand Eaton
Categories
Description IEC Magnetic Contactor, Auxiliary Contact Form Auxiliary Contacts Not Included, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 110/120V AC, Number of Poles 4, Full Load Current - Inductive 40 A, Full Load Current - Resistive 63 A, Reversing Capability Non-Reversing, Overall Height 4.53 in, Overall Width 3.35 in, Terminal Connection Type Screw Terminals, Frame Size D, Mounting Style DIN Rail, Panel, Series XT, Number of Auxillary Contacts 0, Contactor Style IEC
graingerSKU: 4WUJ2, mscSKU: , zoro_no: G2127912, mongo_id: 65bbe8e822d7a989a9921d9d

Web Price

$399.99 / each

Qty

Product Details

Action Non-Reversing

Amperage Rating 63A

Aux. Contact Configuration No Auxiliary Contacts

Auxiliary Contact Form Auxiliary Contacts Not Included

Certifications UL Listed;CSA Certified;IEC 60947;EN 60947

Coil Voltage 110/120V AC

Coil Volts 120 V AC

Compliances CE Marked

Contact Configuration 0 NO, 0 NC

Contactor Style IEC

Country of Origin (subject to change) Romania

Depth 5.2 in

Electrical Connection Screw Terminals

Embedded Surge Suppressor Yes

Enclosure NEMA Rating No Enclosure

Frame / Series / Class / Code Frame D

Frame Size D

Frequency 50/60 Hz

Frequency Rating 50-60 Hz

Full Load Amps-Inductive 40 A

Full Load Amps-Resistive 63 A

Full Load Current - Inductive 40 A

Full Load Current - Resistive 63 A

Height 2.91 in

Horsepower @ Single Phase - 240V AC 10 hp

Horsepower @ Three Phase - 208V AC 10 hp

Horsepower @ Three Phase - 240V AC 15 hp

Horsepower @ Three Phase - 480V AC 30 hp

Horsepower @ Three Phase - 600V AC 40 hp

HP @ 1 Phase - 230V 10

HP @ 1 Phase - 240V 10 hp

HP @ 3 Phase - 208V 10 hp

HP @ 3 Phase - 240V 15 hp

HP @ 3 Phase - 480V 30 hp

HP @ 3 Phase - 575V 40 hp

Hp Rating - Max 10, 15, 30, 40 hp (3PH @200,230,460,575 V)

Hz_ 50/60

Includes Auxiliary Contacts No

IP Rating IP20

Maximum Operating Temperature 122 Degrees F

Maximum Voltage Rating 690V AC

Mechanical Operating Durability 10,000,000

Minimum Operating Temperature -13 Degrees F

Mounting Hole Diameter 0.16 in

Mounting Hole Distance - Height 4.13 in

Mounting Hole Distance - Width 1.77 in

Mounting Style DIN Rail, Panel

NEMA Enclosure Material Not Applicable

NEMA Enclosure Rating No Enclosure

NEMA Size Not Applicable

Number of Auxillary Contacts 0

Number of Poles 4

Overall Depth 5.79 in

Overall Height 4.53 in

Overall Width 3.35 in

Package Quantity 1

Phase Three

Product Height 4.52755906 in

Product Length/Depth 5.78740157 in

Product Name Eaton XT IEC contactor

Product Width 3.34645669 in

Response Time 12 to 18 msec (AC Operated Closing Delay), 24 msec (DC Operated Opening Delay), 54 msec (DC Operated Closing Delay), 8 to 13 msec (AC Operated Opening Delay)

Reversing No

Reversing Capability Non-Reversing

Series XT

Standards CE, CSA, EN 60947, IEC 60947, RoHS, UL Listed

Terminal Connection Type Screw Terminals

Type Full voltage non-reversing contactor

Width 2.91 in
