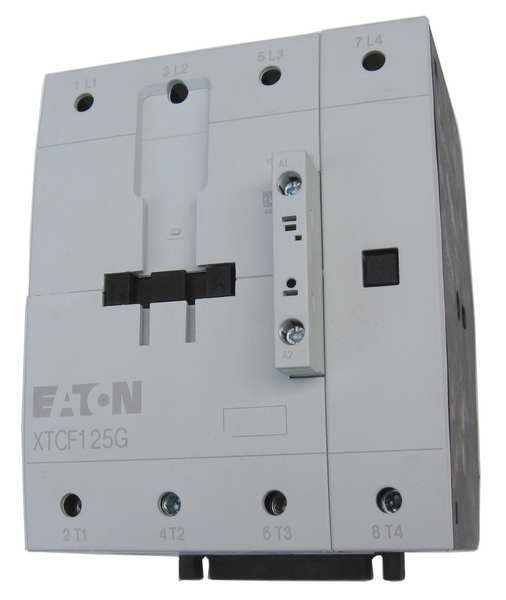

IEC Magnetic Contactor, 4 Poles, 24 V AC, 80 A, Reversing: No

SKU
Brand Eaton
Categories
Description IEC Magnetic Contactor, Auxiliary Contact Form Auxiliary Contacts Not Included, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 24V AC, Number of Poles 4, Full Load Current - Inductive 80 A, Full Load Current - Resistive 125 A, Reversing Capability Non-Reversing, Overall Height 6.69 in, Overall Width 5.24 in, Terminal Connection Type Screw Terminals, Frame Size G, Mounting Style DIN Rail, Panel, Series XT, Number of Auxillary Contacts 0, Contactor Style IEC
graingerSKU: null, mscSKU: null, zoro_no: G6362894, mongo_id: 65bbe5dd3aaddbd5a9ff067e

Web Price

$757.49 / each

Product Details

Action Non-Reversing

Auxiliary Contact Form Auxiliary Contacts Not Included

Coil Voltage 24V AC

Coil Volts 24 V AC

Contactor Style IEC

Country of Origin (subject to change) Germany

Depth 5.59 in

Embedded Surge Suppressor Yes

Enclosure NEMA Rating No Enclosure

Frame / Series / Class / Code Frame G

Frame Size G

Frequency 50/60 Hz

Full Load Amps-Inductive 80 A

Full Load Amps-Resistive 125 A

Full Load Current - Inductive 80 A

Full Load Current - Resistive 125 A

Height 5.24 in

Horsepower @ Single Phase - 240V AC 25 hp

Horsepower @ Three Phase - 208V AC 25 hp

Horsepower @ Three Phase - 240V AC 30 hp

Horsepower @ Three Phase - 480V AC 60 hp

Horsepower @ Three Phase - 600V AC 75 hp

HP @ 1 Phase - 230V 25

HP @ 1 Phase - 240V 25 hp

HP @ 3 Phase - 208V 25 hp

HP @ 3 Phase - 240V 30 hp

HP @ 3 Phase - 480V 60 hp

HP @ 3 Phase - 575V 75 hp

Hz_ 50/60

Includes Auxiliary Contacts No

IP Rating IP20

Maximum Operating Temperature 122 Degrees F

Maximum Voltage Rating 690V AC

Mechanical Operating Durability 10,000,000

Minimum Operating Temperature -13 Degrees F

Mounting Hole Diameter 0.24 in

Mounting Hole Distance - Height 6.14 in

Mounting Hole Distance - Width 2.76 in

Mounting Style DIN Rail, Panel

NEMA Enclosure Material Not Applicable

NEMA Enclosure Rating No Enclosure

NEMA Size Not Applicable

Number of Auxillary Contacts 0

Number of Poles 4

Overall Depth 6.89 in

Overall Height 6.69 in

Overall Width 5.24 in

Package Quantity 1

Phase Three

Response Time 28 to 33 msec (AC Operated Closing Delay), 30 msec (DC Operated Opening Delay), 35 msec (DC Operated Closing Delay), 35 to 41 msec (AC Operated Opening Delay)

Reversing No

Reversing Capability Non-Reversing

Series XT

Standards CE, CSA, EN/IEC 60947, RoHS, UL Listed

Terminal Connection Type Screw Terminals

Width 5.24 in
