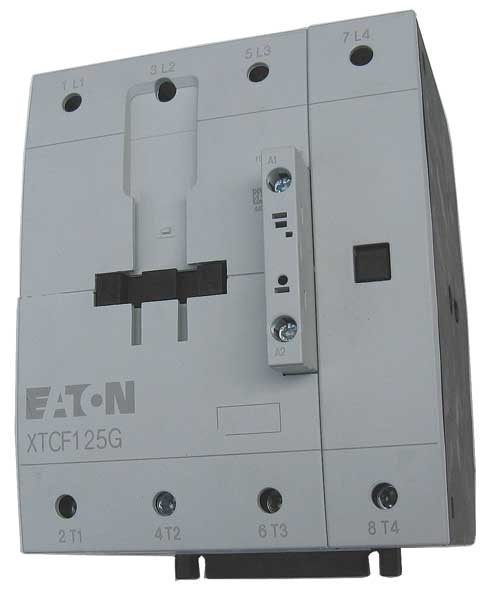

IEC Magnetic Contactor, 4 Poles, 24 V DC, 80 A, Reversing: No

SKU
Brand Eaton
Categories
Description IEC Magnetic Contactor, Auxiliary Contact Form Auxiliary Contacts Not Included, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 24-27V DC, Number of Poles 4, Full Load Current - Inductive 80 A, Full Load Current - Resistive 125 A, Reversing Capability Non-Reversing, Overall Height 6.69 in, Overall Width 5.24 in, Terminal Connection Type Screw Terminals, Frame Size G, Mounting Style DIN Rail, Panel, Series XT, Number of Auxillary Contacts 0, Contactor Style IEC
graingerSKU: 4WUK6, mscSKU: , zoro_no: G3175496, mongo_id: 65bbea4122d7a989a99a2f82

Web Price

$863.74 / each

Qty

Product Details

Action Non-Reversing

Amperage Rating 125A

Aux. Contact Configuration No Auxiliary Contacts

Auxiliary Contact Form Auxiliary Contacts Not Included

Certifications UL Listed;CSA Certified;IEC 60947;EN 60947

Coil Voltage 24-27V DC

Coil Volts 24 V DC

Compliances CE Marked

Contact Configuration 0 NO, 0 NC

Contactor Style IEC

Country of Origin (subject to change) Romania

Depth 6.3 in

Electrical Connection Screw Terminals

Embedded Surge Suppressor Yes

Enclosure NEMA Rating No Enclosure

Frame / Series / Class / Code Frame G

Frame Size G

Full Load Amps-Inductive 80 A

Full Load Amps-Resistive 125 A

Full Load Current - Inductive 80 A

Full Load Current - Resistive 125 A

Height 4.83 in

Horsepower @ Single Phase - 240V AC 25 hp

Horsepower @ Three Phase - 208V AC 25 hp

Horsepower @ Three Phase - 240V AC 30 hp

Horsepower @ Three Phase - 480V AC 60 hp

Horsepower @ Three Phase - 600V AC 75 hp

HP @ 1 Phase - 230V 25

HP @ 1 Phase - 240V 25 hp

HP @ 3 Phase - 208V 25 hp

HP @ 3 Phase - 240V 30 hp

HP @ 3 Phase - 480V 60 hp

HP @ 3 Phase - 575V 75 hp

Hp Rating - Max 25, 30, 60, 75 hp (3PH @200,230,460,575 V)

Includes Auxiliary Contacts No

IP Rating IP20

Maximum Operating Temperature 122 Degrees F

Maximum Voltage Rating 690V AC

Mechanical Operating Durability 10,000,000

Minimum Operating Temperature -13 Degrees F

Mounting Hole Diameter 0.24 in

Mounting Hole Distance - Height 6.14 in

Mounting Hole Distance - Width 2.76 in

Mounting Style DIN Rail, Panel

NEMA Enclosure Material Not Applicable

NEMA Enclosure Rating No Enclosure

NEMA Size Not Applicable

Number of Auxillary Contacts 0

Number of Poles 4

Overall Depth 6.89 in

Overall Height 6.69 in

Overall Width 5.24 in

Package Quantity 1

Phase Three

Product Height 6.69291339 in

Product Length/Depth 6.88976378 in

Product Name Eaton XT IEC contactor

Product Width 5.23622047 in

Response Time 28 to 33 msec (AC Operated Closing Delay), 30 msec (DC Operated Opening Delay), 35 msec (DC Operated Closing Delay), 35 to 41 msec (AC Operated Opening Delay)

Reversing No

Reversing Capability Non-Reversing

Series XT

Standards CE, CSA, EN 60947, IEC 60947, RoHS, UL Listed

Terminal Connection Type Screw Terminals

Type Full voltage non-reversing contactor

Width 4.83 in
