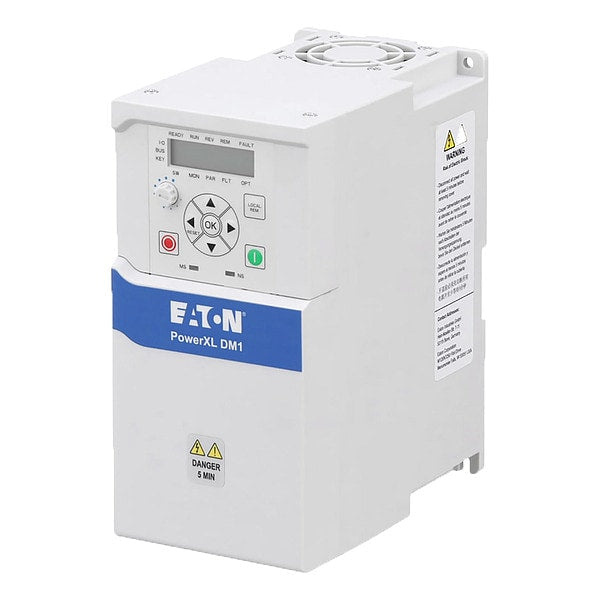

Variable Frequency Drive, Input 480V AC

SKU
Brand Eaton
Categories
Description Variable Frequency Drive, Input Voltage 480V AC, Input Phase AC Three, Input Frequency 50/60 Hz, Maximum Output Power 2 hp, 3 hp, Maximum Output Current 4.3 A, 5.6 A, Output Voltage 380 to 480V AC, Output Phase AC Three, Output Frequency Range 0 to 400 Hz, Enclosure Rating IP00
graingerSKU: , mscSKU: , zoro_no: G709944312, mongo_id: 65bbe6b33aaddbd5a904a51f

Web Price

$952.49 / each

Qty

Product Details

Accepts Input Control Signal Open Loop Vector Control

Adjustable Acceleration Time 0.1 to 3,000 sec

Adjustable Deceleration Time 0.1 to 3,000 sec

Application Frequency Control, PM Motor Speed Control, Speed Control

Brake Chopper Included Yes

Color White

Country of Origin (subject to change) Dominican Republic

Digital Readout Output Frequency

Display Type LCD

Displays Multi Segment LCD

Dynamic Braking Yes

Enclosure Open

Enclosure Rating IP00

Ethernet Port Included Yes

Input Frequency 50/60 Hz

Input Phase AC Three

Input Type Analog, Digital

Input Voltage 480V AC

Input Voltage Range 380 to 480V AC

Maximum Output Current 4.3 A, 5.6 A

Maximum Output Power 2 hp, 3 hp

Number of Inputs (1) Analog, (4) Digital

Number of Outputs (2) Relay

Output Frequency Range 0 to 400 Hz

Output Phase AC Three

Output Type Relay

Output Voltage 380 to 480V AC

Output Voltage Range 380V AC to 480V AC

Overall Depth 7 in

Overall Height 6 in

Overall Width 2 7/8 in

Package Quantity 1

Protection DC Bus Overvoltage Control, Earth Fault Protection, Input Phase Supervision, Motor Overload Protection, Motor Phase Supervision, Motor Stall Protection, Motor Underload Protection, Overcurrent Protection, Overvoltage Protection, Surge Protection, Undervoltage Protection, Unit Overtemperature Protection

Series DM1

Standards UL Listed

Start/Stop Control Programmable

Starting Torque 200%

Style Compact

Torque Application Constant Torque, Variable Torque

With Bypass / No Bypass With Bypass

With Line Contactor / No Line Contactor No Line Contactor
