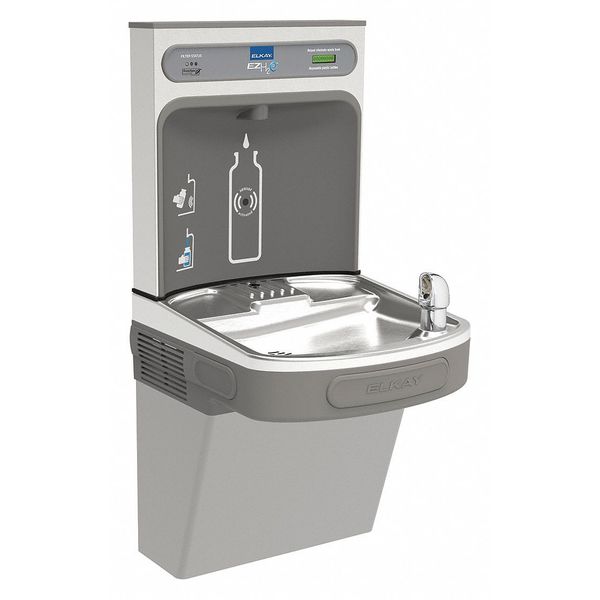

Bottle Fill Stn+Cooler Filter 8GPH Gray

SKU
Brand Elkay
Categories
Description Drinking Fountain with Bottle Filler, Station Type Bottle Filling Dispenser, Single Fountain, Fountain Actuation Front Pushbar/Side Pushbar, Bottle Dispenser Actuation Sensor, Includes Water Filter Yes, ADA Compliant Yes, Cooling Capacity 8 gph @ 50 Degrees F, Housing Color Light Gray, Overall Height 39 1/8 in, Overall Depth 19 in, Overall Width 18 3/8 in, Mounting Location Wall Surface Mount, Bi-Level Field Adjustable No, Includes Pet Bowl No, Refrigeration Refrigerated
graingerSKU: 34K036, mscSKU: , zoro_no: G1108969, mongo_id: 65bbe9d322d7a989a997bcf2

Web Price

$2,336.24 / each

Qty

Product Details

ADA Compliant Yes

Antimicrobial Yes

Bi-Level Field Adjustable No

Bottle Dispenser Actuation Sensor

Bottle Filler Actuation Touchless Bottle Filler

Bottle Filler Depth 3 5/8 in

Bottle Filler Width 17 7/8 in

Chilling Capacity 8 gph @ 50 Degrees F

Color Gray

Cooling Capacity 8 gph @ 50 Degrees F

Country of Origin (subject to change) United States

Drain Outside Diameter 1 1/4 in

Drinking Fountain Operation Push Bar Fountain

Environment Indoor

Features Green Ticker, Hands Free, Laminar Flow, Real Drain, Visual Filter Monitor

Filter Status Indicator Yes

Fountain Actuation Front Pushbar/Side Pushbar

Fountain and Bottle Dispenser Operation Front Pushbar/Side Pushbar ; Sensor

Fountain and Bottle Filler Type Single Fountain

Full Load Current 6 A

Housing Color Light Gray

Housing Material Finish Light Gray

Includes Filter

Includes Pet Bowl No

Includes Water Filter Yes

Inlet Tube Outside Diameter 1/4 in

Manufacturer Warranty Length 1 yr Electrical Components, 1 yr Water System, 5 yr Refrigeration System

Maximum Cold Water Temperature 50 Degrees F

Maximum Constant Stream Pressure 105 psi

Minimum Constant Stream Pressure 20 psi

Minimum Supply Line Pressure 20 psi

Mounting Hole Diameter 7/16 in

Mounting Type On-Wall

Number of Bubblers 1

Number of Mounting Holes 3

Operating Voltage 115V AC

Operation Push Bar Fountain, Touchless Bottle Filler

Overall Depth 19 in

Overall Height 39 1/8 in

Overall Width 18 3/8 in

Package Quantity 1

Power Consumption 370 W

Power Source Electric Corded

Product Weight 85 lb

Refrigerant Type R134A

Refrigerated Yes

Refrigeration Refrigerated

Standards ADA and ICC A117.1, ASME A112.19.3/CSA B45.4, Buy American Act, CAN/CSA C22.2 No. 120, GreenSpec, NSF/ANSI 372, NSF/ANSI 42, NSF/ANSI 53, NSF/ANSI 61, UL 399

Station Type Bottle Filling Dispenser, Single Fountain

Temperature Adjustment Factory Set but Adjustable

Type Bottle Filler, Single Drinking Fountain

Vandal Resistant No

Water Filter Included Filtered
