Home / Drinking Fountain with Bottle Filler, On-Wall, Filtered, Refrigerated, 39-1/2 in H, Gray

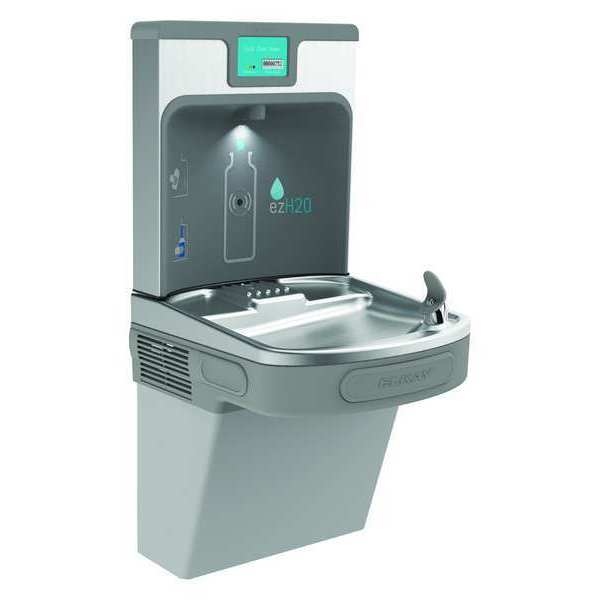

Drinking Fountain with Bottle Filler, On-Wall, Filtered, Refrigerated, 39-1/2 in H, Gray

SKU
Brand Elkay
Categories
Description Drinking Fountain with Bottle Filler, Station Type Bottle Filling Dispenser, Single Fountain, Fountain Actuation Front Pushbar/Side Pushbar, Bottle Dispenser Actuation Sensor, Includes Water Filter Yes, ADA Compliant Yes, Cooling Capacity 8 gph @ 50 Degrees F, Housing Color Light Gray, Housing Finish Granite, Overall Height 39 1/2 in, Overall Depth 19 in, Overall Width 18 3/8 in, Mounting Location Wall Surface Mount, Bi-Level Field Adjustable No, Includes Pet Bowl No, Refrigeration Refrigerated
graingerSKU: 39AM86, mscSKU: , zoro_no: G1810405, mongo_id: 65bbe9d322d7a989a997bcf0

Web Price

$2,157.49 / each

Qty

Product Details

ADA Compliant Yes

Antimicrobial Yes

Bi-Level Field Adjustable No

Bottle Dispenser Actuation Sensor

Bottle Filler Actuation Touchless Bottle Filler

Bottle Filler Depth 3 1/2 in

Bottle Filler Width 18 in

Chilling Capacity 8 gph @ 50 Degrees F

Cold Water Capacity 8 gph

Color Gray

Compliance Accessibility, Electrical, Lead, Mechanical, Water Qualtiy

Compressor Horsepower 1/5 hp

Compressor HP 1/5 hp

Cooling Capacity 8 gph @ 50 Degrees F

Country of Origin (subject to change) United States

Depth 19 in

Dispenser Design Wall

Dispenser Operation Electronic Sensor (Bottle), Front and Side Pushbar (Fountain)

Drain Connection 1 1/4 in

Drain Outside Diameter 1 1/4 in

Drinking Fountain Operation Push Bar Fountain

Environment Indoor

Features Automatic Filter Status Reset, Green Ticker, Hands Free, Laminar Flow, Real Drain, Visual Filter Monitor

Filter Status Indicator Yes

Fountain Actuation Front Pushbar/Side Pushbar

Fountain and Bottle Dispenser Operation Front Pushbar/Side Pushbar ; Sensor

Fountain and Bottle Filler Type Single Fountain

Full Load Amps 4.2 A

Full Load Current 5 A

Height 39 7/16 in

Housing Color Light Gray

Housing Finish Granite

Housing Material Finish Light Gray Granite

Includes Filter

Includes Back Panel No

Includes Pet Bowl No

Includes Water Filter Yes

Indoor / Outdoor Indoor

Inlet 3/8 in OD

Manufacturer Warranty Length 1 yr Electrical Components, 1 yr Water System, 5 yr Refrigeration System

Manufacturers Warranty Length 5 yr on Refrigeration System, 1 yr Electrical Components and Water System

Maximum Cold Water Temperature 50 Degrees F

Maximum Constant Stream Pressure 105 psi

Minimum Constant Stream Pressure 20 psi

Minimum Supply Line Pressure 20 psi

Mounting Hole Diameter 7/16 in

Mounting Type On-Wall

Number of Bubblers 1

Number of Levels 1

Number of Mounting Holes 3

Operating Voltage 115V AC

Operation Push Bar Fountain, Touchless Bottle Filler

Overall Depth 19 in

Overall Height 39 1/2 in

Overall Width 18 3/8 in

Package Quantity 1

Power Consumption 370 W

Power Source Electric Corded

Product Weight 85 lb

Refrigerant 134A (Libre CFC)

Refrigerant Type R134A

Refrigerated Yes

Refrigerated / Non-Refrigerated Refrigerated

Refrigeration Refrigerated

Regulator Maintains Constant Stream Height at Line Pressures of 20 to 105 psi

Standards ADA and ICC A117.1, ASME A112.19.3/CSA B45.4, Buy American Act, CAN/CSA C22.2 No. 120, GreenSpec, NSF/ANSI 372, NSF/ANSI 42, NSF/ANSI 53, NSF/ANSI 61, UL 399

Station Type Bottle Filling Dispenser, Single Fountain

Temperature Adjustment Factory Set but Adjustable

Type Bottle Filler, Single Drinking Fountain

Vandal Resistant No

Voltage 115 V AC

Water Filter Included Filtered

Water Temp. 50 Degrees F

Width 18 3/8 in
