Home / Wall Mount, Yes ADA, 1 Level Water Cooler

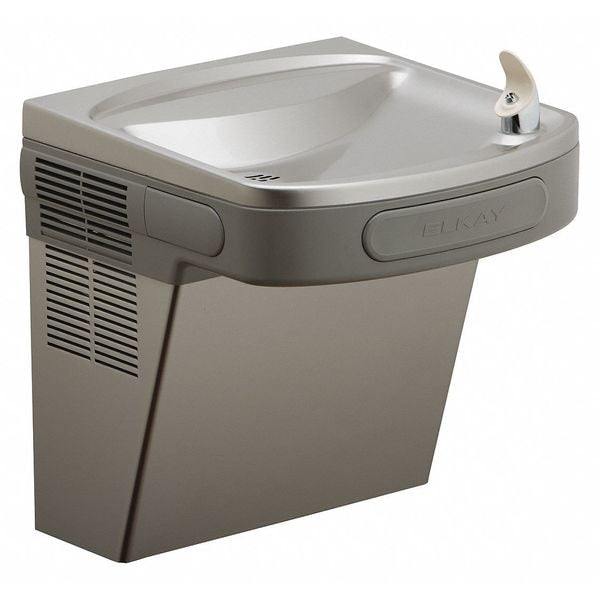

Wall Mount, Yes ADA, 1 Level Water Cooler

SKU
Brand Elkay
Categories
Description Single Drinking Fountain, Station Type Single Fountain, Fountain Actuation Front Pushbar/Side Pushbar, Includes Water Filter Yes, ADA Compliant Yes, Cooling Capacity 8 gph @ 50 Degrees F, Housing Color Light Gray, Housing Finish Vinyl Clad, Overall Height 19 7/8 in, Overall Depth 19 in, Overall Width 18 3/8 in, Mounting Location Wall Surface Mount, Bi-Level Field Adjustable No, Includes Pet Bowl No, Refrigeration Refrigerated, Power Source Electric Corded, Vandal Resistant No
graingerSKU: 34K033, mscSKU: 57967770, zoro_no: G0047525, mongo_id: 65bbe66f3aaddbd5a902da13

Web Price

$952.49 / each

Qty

Product Details

ADA Compliant Yes

Antimicrobial No

Basin Material Stainless Steel

Bi-Level Field Adjustable No

Bottle Filler Depth Not Applicable

Chilling Capacity 8 gph @ 50 Degrees F

Cold Water Capacity 8 gph

Color Gray

Compliance Accessibility,Water Quality Including Lead, Electrical

Compressor Horsepower 1/5 hp

Compressor HP 1/5 hp

Cooling Capacity 8 gph @ 50 Degrees F

Country of Origin (subject to change) United States

Depth 19 in

Dispenser Design Wall

Dispenser Operation Front and Side Pushbar

Drain Connection 1 1/4 in

Drain Outside Diameter 1 1/4 in

Drinking Fountain Operation Push Bar Fountain

Environment Indoor

Features Fastenerless Integrated Drain Reduces Debris Accumulation, Hermetically Sealed Refrigeration System

Fountain Actuation Front Pushbar/Side Pushbar

Fountain and Bottle Dispenser Operation Front Pushbar/Side Pushbar

Fountain and Bottle Filler Type Single Fountain

Full Load Amps 5 A

Full Load Current 5 A

Height 19 13/16 in

Housing Color Light Gray

Housing Finish Vinyl Clad

Housing Material Finish Light Gray Vinyl Clad

Includes Filter

Includes Back Panel No

Includes Pet Bowl No

Includes Water Filter Yes

Indoor / Outdoor Indoor

Inlet 3/8 in OD

Manufacturer Warranty Length 1 yr Electrical Components, 1 yr Water System, 5 yr Refrigeration System

Manufacturers Warranty Length 5 yr on Refrigeration System, 1 yr Electrical Components and Water System

Maximum Cold Water Temperature 50 Degrees F

Maximum Constant Stream Pressure 105 psi

Minimum Constant Stream Pressure 20 psi

Minimum Supply Line Pressure 20 psi

Mounting Hole Diameter 7/16 in

Mounting Type On-Wall

Number of Bubblers 1

Number of Levels 1

Number of Mounting Holes 3

Operating Voltage 115V AC

Operation Push Bar Fountain

Overall Depth 19 in

Overall Height 19 7/8 in

Overall Width 18 3/8 in

Package Quantity 1

Power Consumption 370 W

Power Source Electric Corded

Product Weight 54 lb

Refrigerant R134A

Refrigerant Type R134A

Refrigerated Yes

Refrigerated / Non-Refrigerated Refrigerated

Refrigeration Refrigerated

Regulator Maintains Constant Stream Height at Line Pressures of 20 to 105 psi

Standards ADA and ICC A117.1, ASME A112.19.3/CSA B45.4, Buy American Act, CAN/CSA C22.2 No. 120, NSF/ANSI 372, NSF/ANSI 42, NSF/ANSI 53, NSF/ANSI 61, UL 399

Station Type Single Fountain

Temperature Adjustment Factory Set but Adjustable

Type Single Drinking Fountain

Vandal Resistant No

Voltage 115 V AC

Water Filter Included Filtered

Water Temp. 50 Degrees F

Width 18 3/8 in
