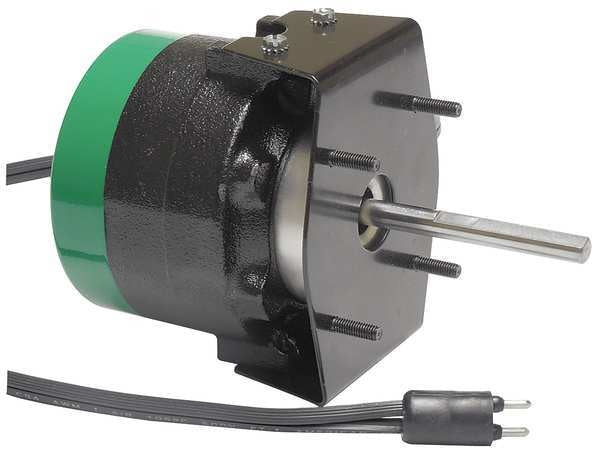

ECM Unit Bearing Motor, 3.3, 1/15th HP, 230 Volt, Walk In Cooler Motor

SKU
Brand Em&S
Categories
Description Unit Bearing Motor, Single Phase, Motor Design ECM, 1/15 HP, Nameplate RPM 1,550, No. of Speeds 1, Voltage 230V AC, 0.77 Full Load Amps, Non-Standard Frame, Output Watts 50 W, 60/50 Hz, Usable @ 208V No, Usable @ 200V No, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCWLE, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Stud, Motor Frame Material Cast Iron, Motor Mounting Position Horizontal or Vertical Shaft Down
graingerSKU: 23TM14, mscSKU: , zoro_no: G5242571, mongo_id: 65bbee31526e052139af5b61

Web Price

$173.74 / each

Product Details

Body Dia. 3 7/16 in

Bolt Circle Dia. 3 5/16 in

Cord Length 22 1/2 in

Country of Origin (subject to change) United States

Features Higher Efficiency than Standard Induction Motors for Greater Energy Savings

Frame Non-Standard

Frame Material Cast Iron

Full Load Amps 0.77

HP_ 1/15

Hz_ 60/50

Includes (4) #10-32 Hex Flange Nuts

Ins. Class B

Length Less Shaft 3 1/2 in

Max. Ambient Temp. 40 Degrees C

Motor Application HVAC/R

Motor Bearings Unit

Motor Design ECM

Motor Enclosure Design Totally Enclosed Air-Over

Motor Frame Material Cast Iron

Motor Mounting Position Horizontal or Vertical Shaft Down

Motor Mounting Type Stud

Motor Shaft Design Flat

Motor Shaft Rotation CCWLE

Motor Sub Application Refrigerator/Freezer

Motor Thermal Protection Auto

Nameplate RPM 1,550

No. of Speeds 1

Output Watts 50 W

Overall Length 6 1/8 in

Package Quantity 1

Phase Single

Plug Type Round 2 Pin

Ring Dia. 2 81/100 in

RPM Range 1,501-1,600

Shaft Dia. 5/16 in

Shaft Length 2 5/8 in

Standards CUL, UL

Usable @ 200V No

Usable @ 208V No

Voltage 230V AC

Voltage Compatibility 115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC
