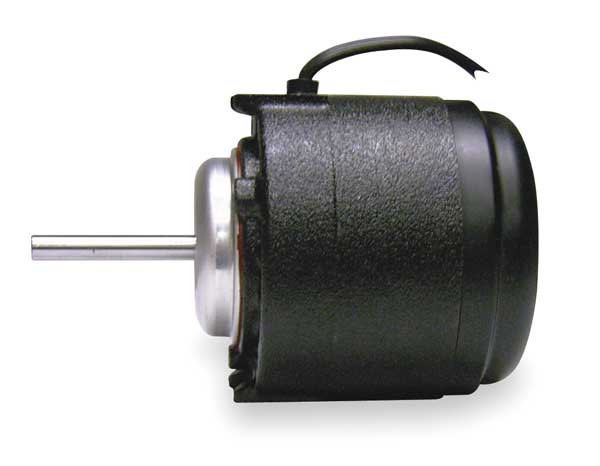

Unit Bearing Motor, 50 WO, 208-230 Volt, Original OEM Motor

SKU
Brand Em&S
Categories
Description Unit Bearing Motor, Single Phase, Motor Design Shaded Pole, 1/15 HP, Nameplate RPM 1,500, No. of Speeds 1, Voltage 230V AC, 0.85 Full Load Amps, Non-Standard Frame, Output Watts 50 W, 60 Hz, Usable @ 208V No, Usable @ 200V No, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class A, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCWSE, Motor Enclosure Design Open Air-Over, Motor Mounting Type Rear/Foot, Motor Frame Material Cast Iron, Motor Mounting Position All Angle
graingerSKU: null, mscSKU: null, zoro_no: G2246501, mongo_id: 65bbe5f43aaddbd5a9ff8b77

Web Price

$137.49 / each

Qty

Product Details

Body Dia. 3 7/8 in

Cord Length 22 in

Country of Origin (subject to change) United States

Features Precision Machined Housing with Positive Flow Lubrication and a Preoiled Felt Wick for Extended use with No Reoiling

Finish Black

Frame Non-Standard

Frame Material Cast Iron

Full Load Amps 0.85

HP_ 1/15

Hz_ 60

Ins. Class A

Length Less Shaft 3 3/4 in

Max. Ambient Temp. 40 Degrees C

Motor Application HVAC/R

Motor Bearings Sleeve

Motor Design Shaded Pole

Motor Enclosure Design Open Air-Over

Motor Frame Material Cast Iron

Motor Mounting Position All Angle

Motor Mounting Type Rear/Foot

Motor Service Factor 1

Motor Shaft Rotation CCWSE

Motor Sub Application Refrigerator/Freezer

Motor Thermal Protection Auto

Mounting Holes Tapped 8-36

Nameplate RPM 1,500

No. of Speeds 1

Output Watts 50 W

Overall Length 5 1/4 in

Package Quantity 1

Phase Single

Plug Type Round 2 Pin

RPM Range 1,401-1,500

Shaft Dia. 5/16 in

Shaft Length 1 1/2 in

Standards CSA Certified, UL Recognized

Usable @ 200V No

Usable @ 208V No

Voltage 230V AC

Voltage Compatibility 115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC
