Home / Digital Multimeter, 600 Max. AC Volts, 600 Max. DC Volts, 200 mA Max. AC Amps, 200 mA Max. DC Amps

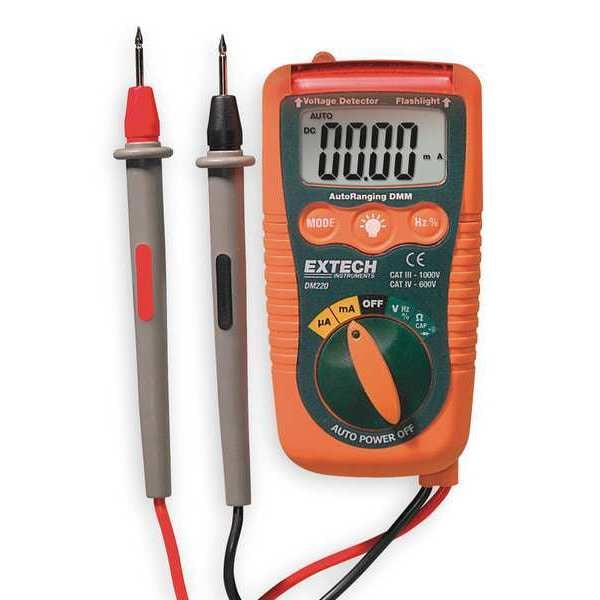

Digital Multimeter, 600 Max. AC Volts, 600 Max. DC Volts, 200 mA Max. AC Amps, 200 mA Max. DC Amps

SKU
Brand Extech
Categories
Description Digital Multimeter, Audible Continuity Yes, Basic AC Voltage Accuracy +/-1.50 Percent, Basic DC Voltage Accuracy +/-0.80 Percent, Data Hold No, Basic DC Current Accuracy +/-2.00 Percent, Instrument Safety Rating CAT III 1000V, CAT IV 600V, Maximum AC Voltage Measurement 600 V, Maximum DC Voltage Measurement 600 V, Instrument Counts 4,000
graingerSKU: 1PTL1, mscSKU: 01447499, zoro_no: G0304936, mongo_id: 65bbe89c22d7a989a990613a

Web Price

$74.99 / each

Qty

Product Details

AC Current Measurement Resolution Not Applicable

AC Response Average

AC Response Calculation Average

AC Voltage Measurement Resolution Not Applicable

Audible Continuity Yes

Auto Power Off Yes

Auto Ranging Yes

Bar Graph No

Bar Graph Included No

Basic AC Current Accuracy +/-2.50%

Basic AC Voltage Accuracy +/-1.50%

Basic DC Accuracy +/-0.80% of Reading + 2 Digits

Basic DC Current Accuracy +/-2.00%

Basic DC Voltage Accuracy +/-0.80%

Batteries Included Yes

Battery Access Yes

Battery Chemistry Alkaline

Battery Size AAA

Battery Type AAA Alkaline

Battery Voltage 1.5V

Calibration Certificate Not Included

Calibration Certificate Included No

Capacitance Measurement Accuracy +/-5.00%

Capacitance Measurement Resolution Not Applicable

Capacitance Range 1 pF to 200 uF

Computer Interface Connection Type None

Country of Origin (subject to change) China

Data Hold No

Data Logging No

DC Current Measurement Resolution Not Applicable

DC Voltage Measurement Resolution Not Applicable

Depth 1.6 in

Diode Test Yes

Display LCD

Display Type LCD

Duty Cycle Yes

Frequency Measurement Accuracy +/-1.00%

Frequency Measurement Resolution Not Applicable

Includes (2) AAA Batteries, Test Leads

Instrument Counts 4,000

Instrument Frequency Counter Range 0.001 Hz to 10 kHz

Instrument Safety Rating CAT III 1000V, CAT IV 600V

Interface None

Manufacturers Warranty Length 2 yr

Max. AC Amps 200 mA

Max. AC Volts 600

Max. DC Amps 200 mA

Max. DC Volts 600

Max. Ohms 40 megohm

Maximum AC Current Measurement 200 mA

Maximum AC Voltage Measurement 600 V

Maximum Capacitance Measurement 200 uF

Maximum DC Current Measurement 200 mA

Maximum DC Voltage Measurement 600 V

Maximum Frequency Measurement 10 kHz

Maximum Operating Temperature 104 Degrees F

Maximum Resistance Measurement 40 megaohm

Maximum Storage Temperature 122 Degrees F

Min./Max. Memory No

Minimum AC Current Measurement 0.1 mA

Minimum AC Voltage Measurement 4 V

Minimum Capacitance Measurement 4 nF

Minimum DC Current Measurement 400 uA

Minimum DC Voltage Measurement 400 V

Minimum Frequency Measurement 0.001 Hz

Minimum Operating Temperature 32 Degrees F

Minimum Resistance Measurement 400 ohm

Minimum Storage Temperature 14 Degrees F

Minimum/Maximum Memory No

Multimeter Features Standard

Multimeter Style Pocket - Basic Features

Overall Height 4.7 in

Overall Width 2.2 in

Package Quantity 1

Parameters Measured AC Current, AC Voltage, DC Current, DC Voltage, Duty Cycle, Frequency, Resistance

Peak Hold No

Promotion Restriction Not eligible for promotion

Resistance Measurement Accuracy +/-0.80%

Resistance Measurement Resolution Not Applicable

Series EXTECH (R) DM220

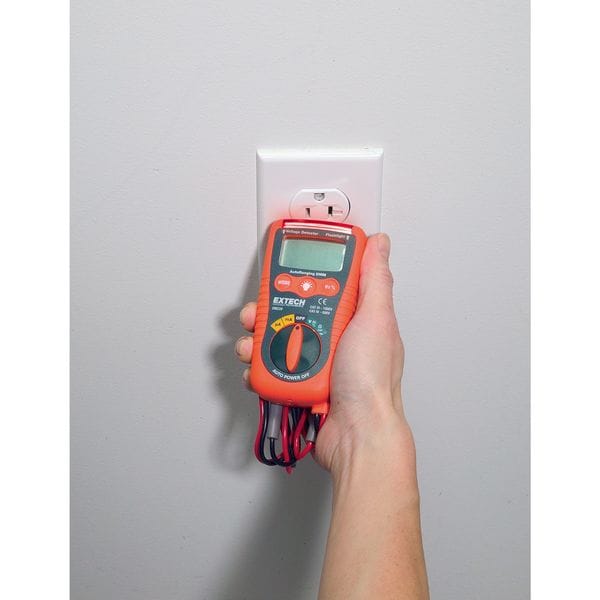

Special Features Built-In Flashlight, Built-In Storage Clips for Integrated Test Leads, Complete with Test Leads and Two AAA Batteries, Diode Test and Continuity Beeper, Double Molded Housing Provides Extra Protection, Large High Contrast 4000 Count LCD Display, Measures AC/DC Voltage, AC/DC Current and Resistance, Frequency and Duty Cycle, Non-Contact Voltage Detection Identifies Live Circuits, Over-Range and Low Battery Indication

Standards CE

Style Pocket

Temp. Range No Temp

Temperature Measurement Accuracy Not Applicable

Temperature Measurement Resolution Not Applicable

Weight 5.12 oz
