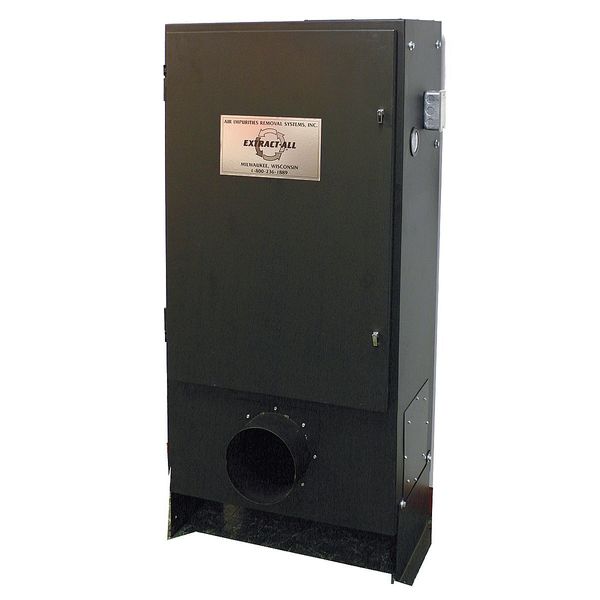

Oil Mist, Smoke and Particulate Collector

SKU
Brand Extract-All
Categories
Description Source Capture Air Cleaning System, Air Cleaning Method Direct Source Capture, Filtration, Air Flow 1,520 cfm, 1,610 cfm, Amperage 2.8 A
graingerSKU: 4GJR6, mscSKU: 62105887, zoro_no: G1062616, mongo_id: 65bbe81a9a749db822774b97

Web Price

$7,312.49 / each

Qty

Product Details

Air Cleaning Method Direct Source Capture, Filtration

Air Flow (CFM) 1520 to 1650

Amperage 2.8 A

Amps AC 2.8

Color Black

Country of Origin (subject to change) United States

Depth (In.) 16 1/2 in

Ducted Yes

Filters Out Oil, Smoke

Finish Polyurethane Powder Coated

Frequency 60 Hz

Height (In.) 51 in

Housing Color Black

Housing Finish Polyurethane Powder Coated

Housing Material Steel

Housing Thickness 16 ga

Hz_ 60

Includes One 8 in Dia Inlet Collar, Pressure Gauge, Three Stage Filter Pack

Includes Drain Fitting Yes

Includes Mounting Hardware Yes

Includes Pressure Gauge Yes

Inlet Collar Diameter 8 in

Manufacturer Warranty Length 3 yr

Motor Horsepower 2 hp

Mount Multiple

Mounting Hardware Included Three-Way Brackets

Noise Level 72dB at 6 ft; 70 dB at 12 ft

Number of Inlet Openings 4

Number of Speeds 1

Overall Dimensions - H x W x D 51 in x 25-1/2 in x 16-1/2 in

Package Quantity 1

Phase 3

Recommended Environments Boring, Chemical & Miscellaneous Mixing, Chuckers, CNC Machining, EDM Machining, Glue Spraying, Laser Etching, Laser Fumes, Laser Marking, Laser Printing, Lathes, Metal Turing Centers, Milling, Paint & Ink Spraying, Parts Washing, Solvent, Welding, Wet Grinding

Sound Level dBA 72 @ 6 Ft

Type Oil Mist/Smoke Collector

Voltage 208/230/460

Weight 189 lb

Width (In.) 25 1/2 in
