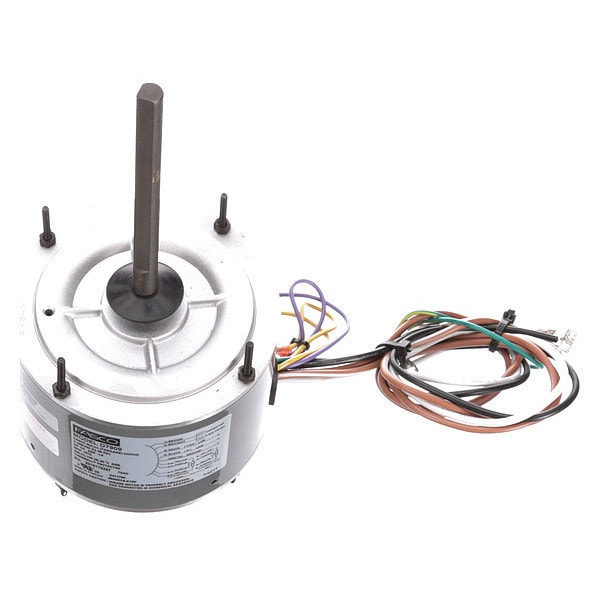

Condenser Fan Motor, 1075 rpm, 1/4 HP, 1.8A

SKU
Brand Fasco
Categories
Description Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/4 HP, Nameplate RPM 1,075, No. of Speeds 1, Voltage 208-230V AC, 1.60 Full Load Amps, 48 Frame, 60 Hz, Usable @ 208V No, Usable @ 200V No, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 60 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Stud, Motor Frame Material Steel
graingerSKU: , mscSKU: , zoro_no: G6422879, mongo_id: 65bbe8669a749db82278cc83

Web Price

$161.24 / each

Qty

Product Details

Application Air Compressor

Body Dia. 5 5/8 in

Bolt Circle Dia. 5 1/4 in

Capacitor Required 2MDV4

Country of Origin (subject to change) Thailand

Duty Continuous

Duty Cycle Continuous

Features Belly Band, Extended Studs Shaft End and Lead End, Thermally Protected

Frame 48

Full Load Amps 1.60

HP_ 1/4

Hz_ 60

Ins. Class B

Lead Length 27 in

Length Less Shaft 3 15/16 in

Manufacturers Warranty Length 1 yr

Max. Ambient Temp. 60 Degrees C

Motor Application HVAC/R

Motor Bearings Ball

Motor Design Permanent Split Capacitor

Motor Enclosure Design Totally Enclosed Air-Over

Motor Frame Material Steel

Motor Mounting Position All Angle

Motor Mounting Type Stud

Motor Service Factor 1

Motor Shaft Design Double-Flat

Motor Shaft Rotation CW/CCW

Motor Sub Application Condenser Fan

Motor Thermal Protection Auto

Mounting Stud Pattern 3 11/16 in x 3 11/16 in

Nameplate RPM 1,075

No. of Speeds 1

Nominal Efficiency 56 %

Overall Length 10 7/16 in

Package Quantity 1

Phase Single

Removable Base Yes

RPM Range 1,001-1,100

Shaft Dia. 1/2 in

Shaft Length 6 1/2 in

Standards CSA Certified, UL Recognized

Stud Quantity 4

Stud Size #8-32

Usable @ 200V No

Usable @ 208V No

Voltage 208-230V AC

Voltage Compatibility 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 220-230/460V AC, 220/460V AC, 230/460/796V AC, 230/460V AC, 440-460V AC, 460/796V AC, 460V AC

Weight 12 lb
