Home / Draft Inducer Blower, 115V, Plastic, 9 7/64 in H.

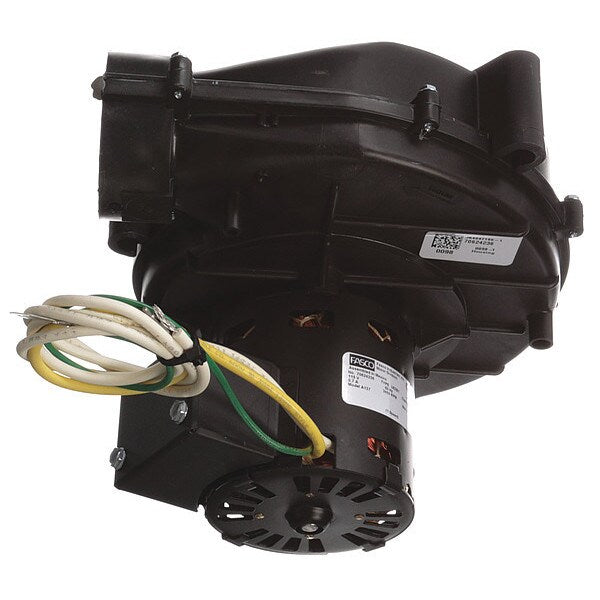

Draft Inducer Blower, 115V, Plastic, 9 7/64 in H.

SKU
Brand Fasco
Categories
Description Draft Inducer, Application Furnaces, For Appliance Type Furnaces, Inlet Diameter 2 in, Outlet Diameter 2 1/8 in, Compatible with Brand York, Replacement For Manufacturer Model Number 024-25007-000, 024-25007-700, 024-25057-000, 024-25057-700, 70622442, 70623342, 70623484, 70623769, 7062453, FB-RFB137, Nameplate Voltage 115V AC, Phase 1, Current 0.7 A, Frequency 60 Hz, Electrical Connection Wire Leads, Motor Type Permanent Split Capacitor, Motor Insulation Class B, Maximum Fan Speed 3,400 RPM
graingerSKU: 33NT45, mscSKU: , zoro_no: G8518736, mongo_id: 65bbe87822d7a989a98fa042

Web Price

$331.24 / each

Qty

Product Details

Agency Compliance CSA Motor Only, UL

Amps 0.7A

Application Furnaces

Bearings Sleeve

Blower Type Induced Draft Blower

CFM @ 0.000-In. SP 77

CFM @ 0.500-In. SP 68

CFM @ 0.700-In. SP 65

CFM @ 1.000-In. SP 57

CFM @ 1.40-In. SP 53

Class B

Compatible with Brand York

Construction Material Plastic

Country of Origin (subject to change) Mexico

Current 0.7 A

Depth (In.) 7 45/64 in

Electrical Connection Wire Leads

Enclosure Open

Fits Brand York

For Appliance Type Furnaces

For Use With Furnace

For Use With Mfr. Model Number 024-25057-000, 7062-2442, 7062-3484

Frequency 60 Hz

Height (In.) 9 7/64 in

Housing Material Plastic

Includes Motor Yes

Inlet and Outlet Dia. (In.) 2.0/2.15

Inlet Diameter 2 in

Maximum Fan Speed 3,400 RPM

Maximum Inlet Air Temperature 40 Degrees C

Maximum Motor Speed 3,450 RPM

Maximum Static Pressure Not Applicable

Motor Insulation Class B

Motor Type Permanent Split Capacitor

Nameplate Voltage 115V AC

Number of Speeds 1

OEM Replacement Yes

Outlet Diameter 2 1/8 in

Outlet Dimensions 2 1/8 in Round

Outlet Height Not Applicable

Outlet Shape Round

Outlet Width Not Applicable

Overall Depth 7 5/8 in

Overall Height 9 in

Overall Width 6 3/8 in

Overload Protection Thermal

Package Quantity 1

Phase 1

Replacement For Manufacturer Model Number 024-25007-000, 024-25007-700, 024-25057-000, 024-25057-700, 70622442, 70623342, 70623484, 70623769, 7062453, FB-RFB137

Replaces Alltemp (Rotom) FB-RFB137, Fasco 70622442, 70623342, 70623484, 70623769, 70624536, York 024-25007-000, 024-25007-700, 024-25057-000, 024-25057-700

RPM 3450

Standards CSA Certified

Type Replacement

Vent Pipe Dia. (In.) 3.3

Voltage 115V

Wheel Diameter 4 5/8 in

Wheel Material Polypropylene

Wheel Type Backward-Curved

Width (In.) 6 13/32 in
