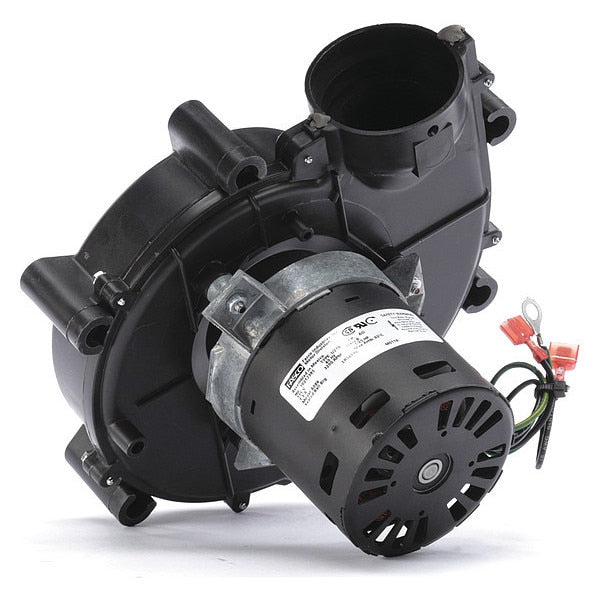

Home / Induced Draft Furnace Blower, 115, Plastic, 7 7/8 in H.

Induced Draft Furnace Blower, 115, Plastic, 7 7/8 in H.

SKU
Brand Fasco
Categories
Description Induced Draft Furnace Blower, Application Furnaces, For Fuel Type Natural Gas, For Appliance Type Gas Furnaces, Inlet Diameter 3 in, Outlet Diameter 2 1/2 in, Compatible with Brand Rheem, RUUD, Replacement For Manufacturer Model Number 70215990, 703020, Nameplate Voltage 115V AC, Phase 1, Current 1.3 A, Frequency 60 Hz, Electrical Connection Wire Leads, Motor Type Shaded Pole, Motor Insulation Class B, Maximum Fan Speed 3,400 RPM, Maximum Motor Speed 3,200 RPM
graingerSKU: null, mscSKU: null, zoro_no: G6134563, mongo_id: 65bbe6293aaddbd5a901067f

Web Price

$267.49 / each

Qty

Product Details

Agency Compliance CSA, UL

Airflow @ 0.000 in SP 98 cfm

Amps 1.3

Application Furnaces

Blower Type Induced Draft Blower

CFM @ 0.000-In. SP 81

CFM @ 0.500-In. SP 65

CFM @ 0.700-In. SP 63

CFM @ 1.000-In. SP 57

CFM @ 1.40-In. SP 39

Compatible with Brand Rheem, RUUD

Construction Material Plastic

Country of Origin (subject to change) Mexico

Current 1.3 A

Depth (In.) 6 3/8 in

Electrical Connection Wire Leads

Fits Brand Rheem

For Appliance Type Gas Furnaces

For Fuel Type Natural Gas

For Use With Furnace

For Use With Mfr. Model Number 703020

Frequency 60 Hz

Height (In.) 7 7/8 in

Housing Material Plastic

HP_ 1/25 hp

Includes Motor Yes

Inlet Diameter 3 in

Maximum Fan Speed 3,400 RPM

Maximum Inlet Air Temperature 40 Degrees C

Maximum Motor Horsepower 1/25 hp

Maximum Motor Speed 3,200 RPM

Maximum Static Pressure 1 1/2 in wc

Motor Insulation Class B

Motor Type Shaded Pole

Nameplate Voltage 115V AC

OEM Replacement Yes

Outlet Diameter 2 1/2 in

Outlet Dimensions 2 1/2 in Round

Outlet Height Not Applicable

Outlet Shape Round

Outlet Width Not Applicable

Overall Depth 6 3/8 in

Overall Height 7 7/8 in

Overall Width 9 in

Package Quantity 1

Phase 1

Power Consumption 118 W

Remarks Product Used as Direct OEM Replacement Only. Any Other use Constitutes a Misapplication, Which Voids the Warranty and May Create Unsafe Conditions

Replacement For Manufacturer Model Number 70215990, 703020

Replaces Fasco 70215990, Rheem 703020

Standards CSA Certified, UL Listed

Type Replacement

Voltage 115

Watts 118 W

Wheel Diameter 4 1/2 in

Wheel Material Polypropylene

Wheel Type Forward-Curved

Width (In.) 9 in
