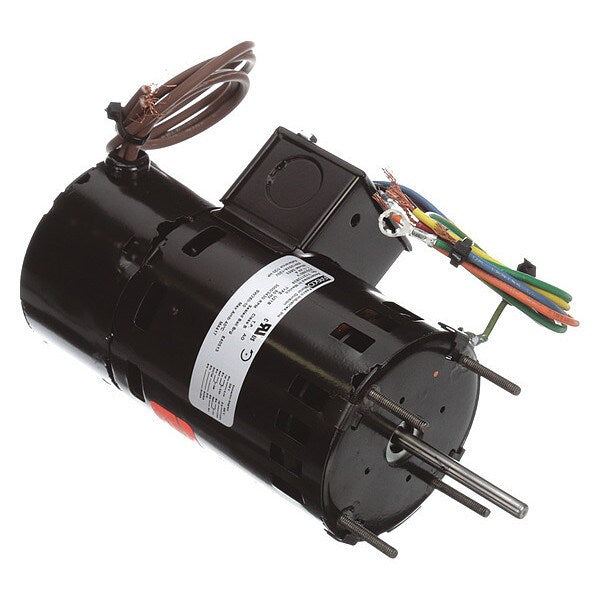

Home / Motor, 1/20 HP, OEM Replacement Brand: Rheem/Ruud Replacement For: JB1R040

Motor, 1/20 HP, OEM Replacement Brand: Rheem/Ruud Replacement For: JB1R040

SKU
Brand Fasco
Categories
Description Condenser Fan Motor, Single Phase, Motor Design Shaded Pole, 1/20 HP, Nameplate RPM 3,430, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 1.1/0.44 A, 3.3 in Frame, OEM Replacement Brand Rheem/Ruud, Replacement For JB1R040, Usable @ 208V No, Usable @ 200V No, 60 Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCWSE, Motor Enclosure Design Open Air-Over, Motor Mounting Type Stud, Motor Frame Material Steel
graingerSKU: 48GP07, mscSKU: , zoro_no: G4333896, mongo_id: 65bbe6a03aaddbd5a90405bd

Web Price

$337.49 / each

Qty

Product Details

Application Fans and Blowers

Body Dia. 3.3

Bolt Circle Dia. 2-13/16

Capacitor Required No

Conduit Box Location Exterior

Conduit Box Position F2

Country of Origin (subject to change) Mexico

Duty Air Over

Frame 3.3

Full Load Amps 1.1/0.44A

HP_ 1/20 HP

Hz_ 60 Hz

Ins. Class B

Length Less Shaft 6 1/2 in

Manufacturers Warranty Length 1 yr.

Max. Ambient Temp. 40 Degrees C

Motor Application OEM Replacement

Motor Bearings Ball

Motor Design Shaded Pole

Motor Enclosure Design Open Air-Over

Motor Frame Material Steel

Motor Mounting Type Extended Studs

Motor Service Factor 1.00

Motor Shaft Design Flat

Motor Shaft Rotation Counterclockwise Shaft End

Motor Sub Application Condenser Fan

Motor Thermal Protection Automatic

Mounting Stud Pattern 4 x 4

Nameplate RPM 3430/3000 rpm

No. of Speeds 1

Number of Shafts 1

OEM Replacement Brand Rheem/Ruud

Overall Length 8.78

Package Quantity 1

Phase 1

Replacement For JB1R040

RPM Range 3001-3600

Shaft Dia. 1/4

Shaft Length 2.2

Standards UL Recognized

Stud Size #8-32

Usable @ 200V No

Usable @ 208V No

Voltage 230/460V

Voltage Compatibility 208-220/440V AC, 208-230/460V AC, 208-230V AC, 208-240V AC, 208V AC, 220-230/460V AC, 220/460V AC, 230/460V AC, 230V AC, 240V AC, 460V AC

Weight 5 lb
