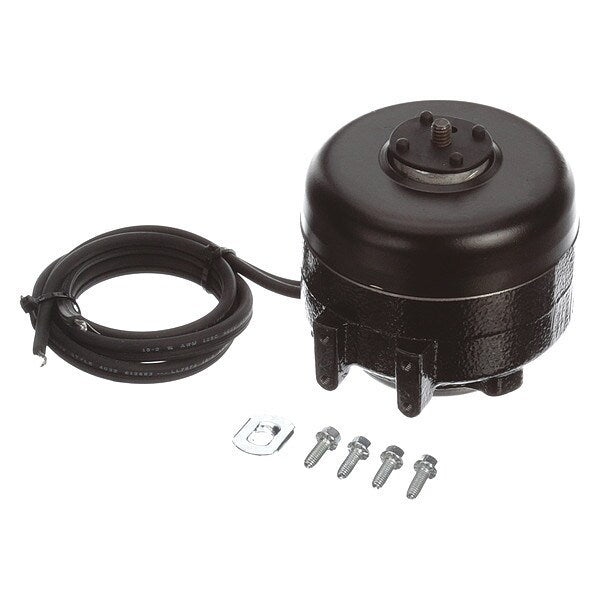

Unit Bearing Motor, 1/125 HP, 230V, CWLE

SKU
Brand Fasco
Categories
Description Unit Bearing Motor, Single Phase, Motor Design Shaded Pole, 1/125 HP, Nameplate RPM 1,550, No. of Speeds 1, Voltage 230V AC, 0.18 Full Load Amps, Non-Standard Frame, Output Watts 6 W, 60 Hz, Usable @ 208V No, Usable @ 200V No, Motor Service Factor 1, Motor Thermal Protection Impedance, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWLE, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Rear/Double Foot
graingerSKU: 48UU09, mscSKU: , zoro_no: G4326257, mongo_id: 65bbe8b222d7a989a990d5dc

Web Price

$66.86 / each

Qty

Product Details

Body Dia. 3 7/16 in

Bolt Circle Dia. 2 13/16 in

Country of Origin (subject to change) China

Duty Cycle Continuous

Features Totally Enclosed Air Over

Frame Non-Standard

Frame Material Cast Iron

Full Load Amps 0.18

HP_ 1/125

Hz_ 60

Ins. Class B

Lead Length 28 in

Length Less Shaft 3 1/8 in

Manufacturers Warranty Length 1 yr

Max. Ambient Temp. 40 Degrees C

Motor Application HVAC/R

Motor Bearings Unit

Motor Design Shaded Pole

Motor Enclosure Design Totally Enclosed Air-Over

Motor Frame Material Cast Iron

Motor Mounting Position All Angle

Motor Mounting Type Rear/Double Foot

Motor Service Factor 1

Motor Shaft Design Threaded

Motor Shaft Rotation CWLE

Motor Sub Application Refrigerator/Freezer

Motor Thermal Protection Impedance

Mounting Stud Pattern 1 1/8 in x 5/8 in (L, S Mounting), 2 13/16 in (E, G Mounting)

Nameplate RPM 1,550

No. of Speeds 1

Output Watts 6 W

Overall Length 3 1/2 in

Package Quantity 1

Phase Single

RPM Range 1,501-1,600

Shaft Dia. 1/4 in

Shaft Length 7/16 in

Standards UL and CSA

Stud Quantity 2 (G Mounting), 3 (E Mounting), 4 (L, S Mounting)

Usable @ 200V No

Usable @ 208V No

Voltage 230V AC

Voltage Compatibility 115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC

Weight 2 lb
