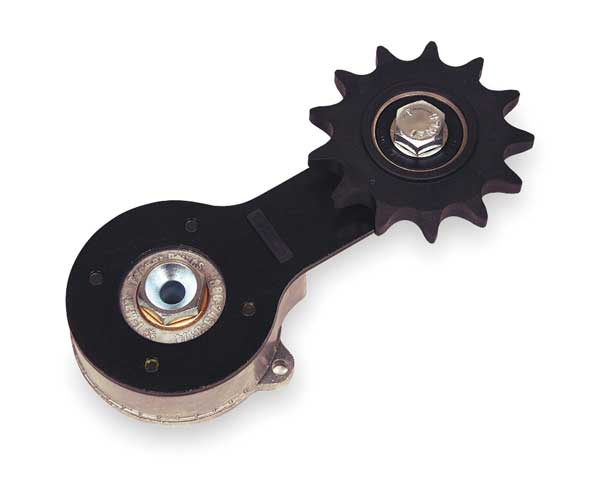

Self-Adjusting Tensioner, 50 ANSI Chain

SKU
Brand Fenner Drives
Categories
Description Self-adjusting tensioner, Arm Rotation 70 Degrees , For Chain Number 50, For V-Belt Size Not Applicable, Sprocket Outside Diameter 3.34 in, Maximum Tension Force 42 lbf, Arm Length to Hole Center 4.5 in, Arm Material Aluminum, Base Diameter 3.34 in, Features Automatically Take Up the Slack and Avoid the Risk of Over-Tensioning Drive Components to Enhance Overall Drive Operating Efficiency, Housing Material Aluminum, Includes CS5002 Sprocket, RT3001 Tensioner, Minimum Tension Force 0 lbf
graingerSKU: 2ZRU4, mscSKU: 43262450, zoro_no: G1927502, mongo_id: 65bbe99922d7a989a99666be

Web Price

$208.74 / each

Qty

Product Details

ANSI Chain Size 50

Application Chain Drives

Arm Length to Hole Center 4.5 in

Arm Material Aluminum

Arm Rotation 70 Degrees

Base Diameter 3.34 in

Country of Origin (subject to change) United States

Dimension A (In.) 1.87 in

Dimension B (In.) 0.26 in

Dimension C (In.) 0.84 in

Dimension D (In.) 3.34 in

Dimension E (In.) 7.85 in

Dimension G (In.) 0.4 in

Dimension T (In.) 1.37 in

Features Automatically Take Up the Slack and Avoid the Risk of Over-Tensioning Drive Components to Enhance Overall Drive Operating Efficiency

For Chain Number 50

For V-Belt Size Not Applicable

Force Range (Lbs.) 0 to 42

Function Self-Adjusting Tensioner Eliminates Need For Regular Manual Retensioing

Housing Material Aluminum

Idler Outside Dia. 3.34 in

Includes CS5002 Sprocket, RT3001 Tensioner

Insert Alloy Steel Torsional Wrapped Spring Which May Be Reversed To Allow Bi-directional Use.

Maximum Tension Force 42 lbf

Minimum Tension Force 0 lbf

Mount Hole Diameter 33/64 in

Mounting Hole (In.) 2/5 in

Overall Depth 1.87 in

Overall Length 7.85 in

Package Quantity 1

Product Type Rotary Tensioner & Idler Sprocket Assembly

Sprocket Outside Diameter 3.34 in

Sprocket Pitch Diameter 3.01 in

Temp. Range (F) 32 to 225

Tensioning Arm Deflects Up To 45 Degrees Either Side Of Its Neutral Position Allowing A Pretension Force That Self-Adjusts An Idler To Everyday Elongation Of Chain Or Belt While Dampening Vibration In The Drive
