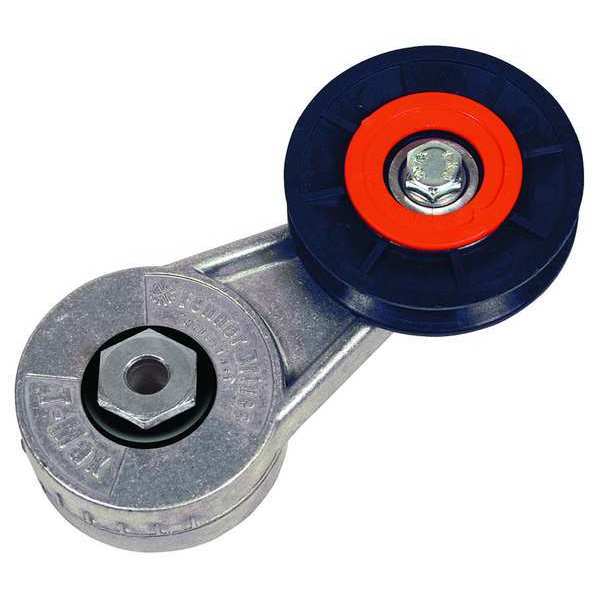

Self-Adjusting Tensioner, A V-belt Size

SKU
Brand Fenner Drives
Categories
Description Self-Adjusting Tensioner, Arm Rotation 45 Degrees , For Chain Number Not Applicable, For V-Belt Size A, Pulley Outside Diameter 3 in, Maximum Tension Force 30 lbf, Arm Material Aluminum, Base Diameter 2.76 in, Features Alloy Steel Compression Springs, Self-Adjusting Tensioner Eliminates Need for Regular Manual Retensioning, Includes -, Minimum Tension Force 0 lbf, Mount Hole Diameter 13/32 in, Overall Depth 1.67 in, Overall Length 6.39 in, Product Type Rotary Tensioner & Idler Pulley Assembly
graingerSKU: , mscSKU: , zoro_no: G2249414, mongo_id: 65bbe5f93aaddbd5a9ffbb17

Web Price

$144.99 / each

Qty

Product Details

Application V-Belt Drives

Arm Material Aluminum

Arm Rotation 45 Degrees

Base Diameter 2.76 in

Country of Origin (subject to change) United States

Dimension A (In.) 1.67 in

Dimension B (In.) 0.28 in

Dimension C (In.) 0.91 in

Dimension D (In.) 2.76 in

Dimension E (In.) 6.39 in

Dimension G (In.) 0.41 in

Dimension T (In.) 1.17 in

Features Alloy Steel Compression Springs, Self-Adjusting Tensioner Eliminates Need for Regular Manual Retensioning

For Chain Number Not Applicable

For V-Belt Size A

Force Range (Lbs.) 0 to 30

Function Self-Adjusting Tensioner Eliminates Need For Regular Manual Retensioing

Idler Outside Dia. 3 in

Insert Accurately Wound Compression Springs Are Used To Provide Consistent Tensioning Force, Alloy Steel

Maximum Tension Force 30 lbf

Minimum Tension Force 0 lbf

Mount Hole Diameter 13/32 in

Mounting Hole (In.) 2/5 in

Overall Depth 1.67 in

Overall Length 6.39 in

Package Quantity 1

Product Type Rotary Tensioner & Idler Pulley Assembly

Pulley Outside Diameter 3 in

Temp. Range (F) 32 to 225

Tensioning Arm Deflects Up To 45 Degrees Either Side Of Its Neutral Position Allowing A Pretension Force That Self-Adjusts An Idler To Everyday Elongation Of Chain Or Belt While Dampening Vibration In The Drive

V-Belt Size Range A
