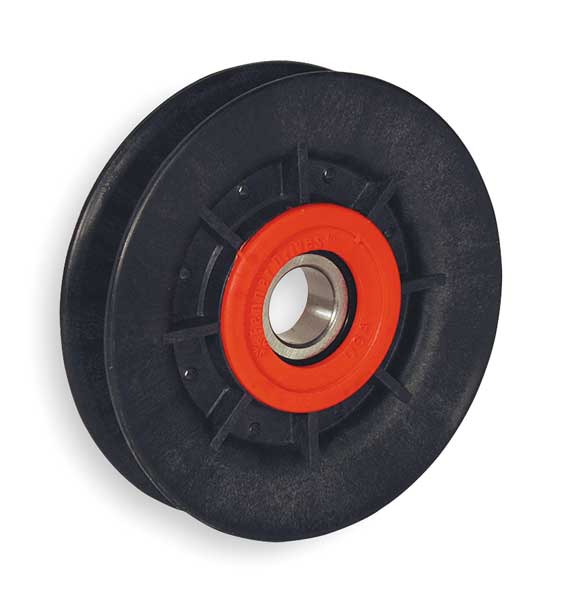

V-Belt Idler Pulley, B Belt Type, 4 In O D

SKU
Brand Fenner Drives
Categories
Description V-Belt Idler Pulley, Bearing Type Ball, For V-Belt Type Classical, Bore Diameter 17 mm, Face Width 0.86 in, For Belt Trade Size B, Outside Diameter 4 in, Pulley Material Fiberglass-Reinforced Nylon, Bearing Material Chrome Steel, Bearing Number 6203-2RS, Features ABEC-1 Bearing, For Use With Self Adjusting Belt Tensioner, Material Fabrication Molded, Material Grade 6/6, Maximum Operating Temperature 225 Degrees F
graingerSKU: 2ZRT7, mscSKU: 35428234, zoro_no: G1120253, mongo_id: 65bbe7759a749db82273b985

Web Price

$23.24 / each

Qty

Product Details

Bearing Material Chrome Steel

Bearing Number 6203-2RS

Bearing Type Ball

Bearings ABEC 1 6203-2RS

Belt Type B

Bore Dia. (In.) 17 mm

Bore Diameter 17 mm

Construction Glass Reinforced Nylon

Country of Origin (subject to change) United States

Dimension A (In.) 4.0 in

Dimension B (In.) 2.84 in

Dimension C (In.) 0.64 in

Dimension D (In.) 0.86 in

Dimension E (In.) 0.76 in

Face Width 0.86 in

Face Width (In.) 43/50 in

Features ABEC-1 Bearing

For Belt Trade Size B

For Use With Self Adjusting Belt Tensioner

For V-Belt Type Classical

Material Fiberglass-Reinforced Nylon

Material Fabrication Molded

Material Grade 6/6

Maximum Operating Temperature 225 Degrees F

Maximum Radial Load at Speed 1,026 lb @ 300 rpm, 1,175 lb @ 200 rpm, 1,480 lb @ 100 rpm, 2,141 lb @ 33 rpm, 402 lb @ 5000 rpm, 449 lb @ 3600 rpm, 507 lb @ 2500 rpm, 565 lb @ 1800 rpm, 601 lb @ 1500 rpm, 687 lb @ 1000 rpm, 866 lb @ 500 rpm

Minimum Operating Temperature 32 Degrees F

Number of Grooves 1

Number of Steps 1

Outside Dia. (In.) 4 in

Outside Diameter 4 in

Overall Width 0.86 in

Package Quantity 1

Pulley Material Fiberglass-Reinforced Nylon

Resistance Properties Corrosion Resistant

Standards ASTM D256, ASTM D638, ASTM D648, ASTM D790
