Home / Bench Process Calibrator, 0 to 100VDC

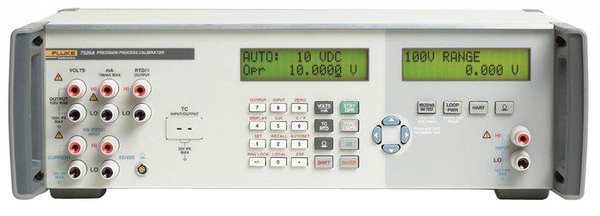

Bench Process Calibrator, 0 to 100VDC

SKU
Brand Fluke
Categories
Description Bench Process Calibrator, Source Voltage 0 to 100 V DC, Voltage Measurement Range 0 to 100 V DC, Source Current 0 to 100 mA DC, Current Measurement Range 0 to 50 mA DC, Accuracy 0.003 Percent, Thermocouple Temperature Range -100 Degrees C to 800 Degrees C, RTD Temperature Range -200 Degrees C to 800 Degrees C, Resistance Source 5 to 4000 Ohms, Internal Pressure Range -15 to 10,000 psi, Displayed Pressure Units bar, cm wc, in Hg, in wc, kg/sq cm, kPa, mbar, mm Hg, psi, Loop Supply Voltage 24V DC

Web Price

$14,787.50 / each

Qty

Product Details

Accuracy 0.003 %

Calibration Certificate NIST

Country of Origin (subject to change) United States

Current Measurement Range 0 to 50 mA DC

Display LCD

Displayed Pressure Units bar, cm wc, in Hg, in wc, kg/sq cm, kPa, mbar, mm Hg, psi

Includes Getting Started Guide, NIST Traceable Calibration Report, Power Cord, Thermocouple Shorting Jumper, USB to Serial Adapter Cable, Users Manual CD-ROM

Interface IEEE-488 (GPIB), RS-232

Internal Pressure Range -15 to 10,000 psi

Internal Pressure Range Accuracy 0.05% of Scale

Loop Supply Voltage 24V DC

Max. Loop Current 20 mA DC

Package Quantity 1

Promotion Restriction Not eligible for promotion

Resistance Measurements 0 to 4000ÃÂ¿

Resistance Source 5 to 4000ÃÂ¿

RTD Temperature Range -200 Degrees C to 800 Degrees C

RTD Type Pt 385 100ÃÂ¿, 200ÃÂ¿, 500ÃÂ¿, 1000ÃÂ¿; Pt 3926 100ÃÂ¿; Pt 3916 100ÃÂ¿; Ni 120 120ÃÂ¿; Cu 427 10ÃÂ¿; SPRT

Source Current 0 to 100 mA DC
