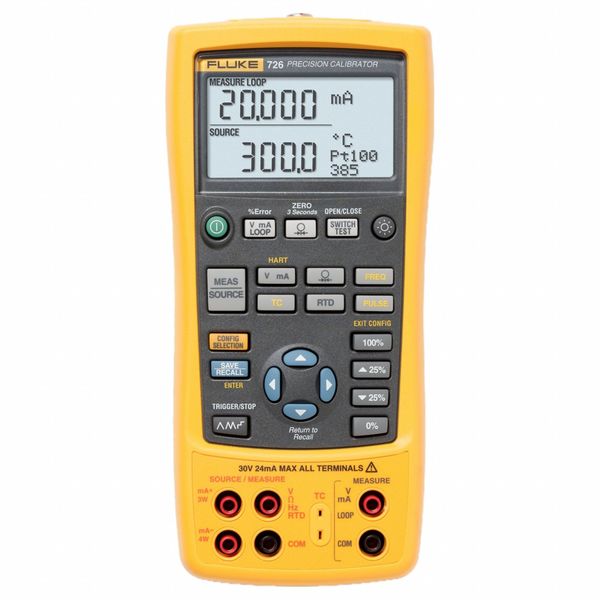

Multifunction Calibrator, 24V

SKU
Brand Fluke
Categories
Description Multifunction Calibrator, Voltage Measurement Range -10 to 75 mV, Loop Supply Voltage 24V DC, Intrinsically Safe No, Pressure Modules 29, Measurement Functions Hertz, mV, Ohms, V, Source Current 24 mA DC, Current Measurement Range 0 to 24 mA DC, Basic DC Accuracy +/-0.01 Percent + 2mV, Thermocouple Temperature Range -250 Degrees to 2500 Degrees C, Powered By (4) AA Batteries

Web Price

$8,979.99 / each

Qty

Product Details

Basic DC Accuracy +/-0.01% + 2mV

Calibration Certificate NIST

Country of Origin (subject to change) Malaysia

Current Measurement Range 0 to 24 mA DC

Frequency Measurement Range 10.0 to 15.0 kHz

Frequency Source Range 10.0 to 15.0 kHz

Intrinsically Safe No

Loop Supply Voltage 24V DC

Manufacturers Warranty Length 3 yr

Max. Loop Current 22 mA

Measurement Functions Hertz, mV, Ohms, V

Package Quantity 1

Pressure Modules 29

Product Type Precision Multifunction Calibrator

Promotion Restriction Not eligible for promotion

Resistance Measurements 0 to 4,000 ohm

Resistance Source 1,500 to 4,000 ohm

RTD Type Cu10 Ni120 (672), Pt100 (3916), Pt100 (3926) Cu10, Pt100, 200, 500, 1000 (385)

Safety Rating ANSI/ISA S82.01-1994, CAN/CSA C22.2 No 1010.1:1992, EN61010-1:1993

Source Current 24 mA DC

Source Voltage -10 to 75 mV

Source/Simulate Hertz, mA, mV, Ohms, V

Thermocouple Temperature Range -250 Degrees to 2500 Degrees C

Thermocouple Type B, BP, C, Cu10, E, J, K, L, N, Ni120, Pt100) 385), Pt100) 391-JIS), Pt100) 392), Pt1000) 385), Pt200) 385), Pt500) 385), R, RTD Resolution, S, T, TC Resolution, U, XK

Voltage Measurement Range -10 to 75 mV
