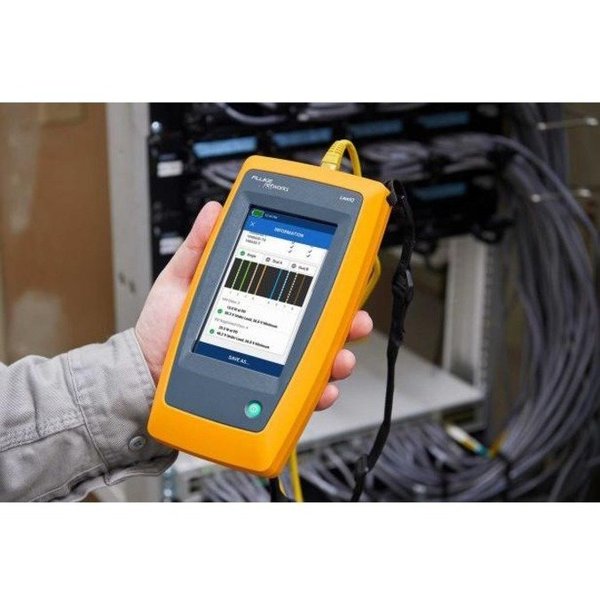

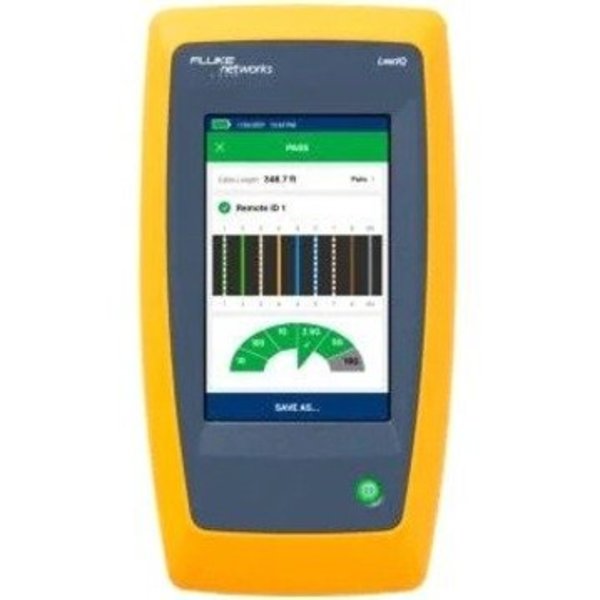

Cable Network Tester

SKU
Brand Fluke Networks
Categories
Description Cable Network Tester, Testing Functions Cable Length Display, Distance to Fault, Ethernet Service Detection, PoE/PoE+ Detection, Tone Generation, Wire Mapping, Adapters Included RJ11, RJ45, Connector Type RJ11, RJ45, Maximum Speed Measured 10 GBps, Data Safe Monitor Yes, Display Screen Type LCD Touchscreen, For Use With Industrial Ethernet Cabling
graingerSKU: 60YD78, mscSKU: , zoro_no: G800489798, mongo_id: 65bbe99f22d7a989a9968b24

Web Price

$5,735.59 / each

Qty

Product Details

Adapter Type M12D, M12X, M8, RJ45

Adapters Included RJ11, RJ45

Alert Type Digital Display, Sound

Battery Type: Lithium-ion, 3.6 V, 6400 mAh Life: 8 hours typical Charge time: 4.5 hours Charging temperature range: 0 ÃÂ°C to +40 ÃÂ°C

Battery Chemistry Lithium Ion

Battery Size 3.6V

Cable Certification No

Cable Length Display Yes

Cable Speed Qualification Yes

Cable Types Balanced twisted-pair cabling Unshielded twisted-pair Screened twisted-pair 2-pair and/or 4-pair

Calibration Certificate Not Included

Commissioning Autotests 10GBASE-T, 5GBASE-T, 2.5GBASE-T, 1000BASE-T, 100BASE-TX, 10BASE-T, Wire map Only. Test Speed: 6 seconds for lengths < 70 m

Communication Protocol USB

Compatible Cable Type Twisted Pair

Connector Type RJ11, RJ45

Continuity Testing Yes

Country of Origin (subject to change) United States

Crosstalk Detection Yes

Data Line Polarity Indicator No

Data Logger Yes

Data Safe Monitor Yes

Diagnostic Protocols Link Layer Discovery Protocol (LLDP) Cisco Discovery Protocol (CDP) Fast Link Pulses (FLP) Internet Control Messaging Protocol (ICMP), Dynamic Host Configuration Protocol (DHCP)

Dimensions 8.5 in x 4.5 in, Length (Maximum): 305 m (1000 ft)

Display 800 x 480 color capacitive multi-touch

Display Screen Type LCD Touchscreen

Distance to Fault Yes

Drop 1 m drop, 6 sides

Endpoint Testing No

Ethernet Service Detection Yes

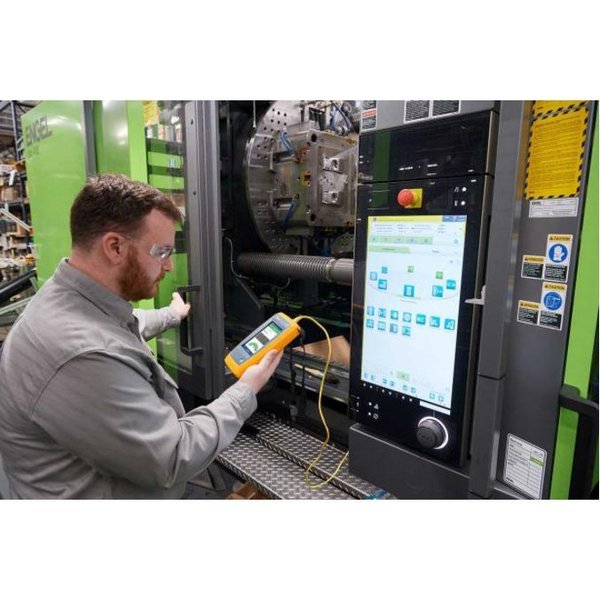

For Use With Industrial Ethernet Cabling

Host Interface USB type C

Impedance Detection No

Includes (7) Remote IDs, AC Charger, Duffle Bag Carrying Case, Hanging Strap with Remote ID Holder, IntelliTone Pro 200 Probe, LinkIQ(TM) Main Unit, RJ45/M12D Patch Cord, RJ45/M12X Patch Cord, RJ45/M8D Patch Cord, RJ45 Patch Cord

Includes Batteries Yes

Instrument Display Touchscreen

IP Address Setup LinkIQ address, DNS Server, Gateway for IPv4 or v6 either manually or via DHCP

IP Ping Test Results Four response time results for target, DNS Server(s), Gateway, plus average and number lost

Languages supported in UI English, German, French, Japanese, Spanish, Thai, Traditional Chinese, Simplified Chinese, Korean, Russian, Italian, Portuguese

Length (Maximum) 305 m (1000 ft)

Maximum Cable Length 1,000 ft

Maximum Impedance Measured 540 ohm

Maximum Operating Humidity 90 %

Maximum Operating Temperature 113 Degrees F

Maximum Speed Measured 10 GBps

Minimum Operating Temperature 32 Degrees F

Number of Batteries Required 1

Number of Results Stored 1,000

Opens/Shorts Detection Yes

Operating Altitude 4,000 m 3,200 m with ac adapter

Operating Relative Humidity 0 % to 90 %, 0ÃÂ°C to 35ÃÂ°C 0 % to 70 %, 35ÃÂ°C to 45ÃÂ°C

Operating temperature 0ÃÂ°C to 45ÃÂ°C

Output Amplitude 15 V DC

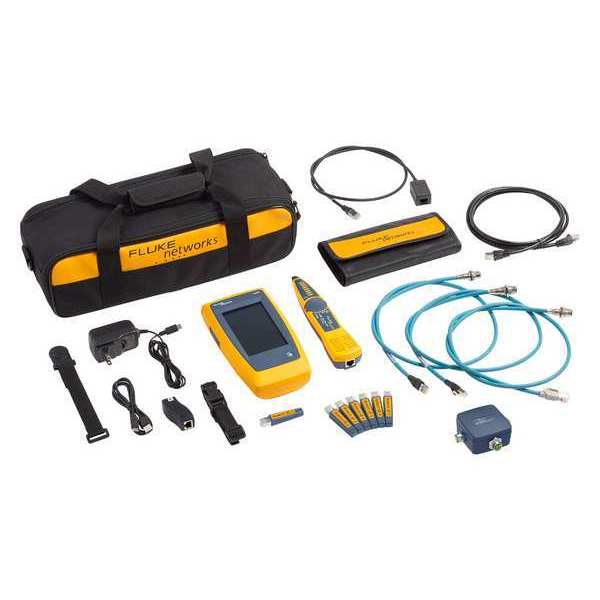

Package Contents LinkIQ™ Main Unit, Remote ID #1-7, IntelliTone(TM) Pro 200 Probe, RJ45-RJ45 patch cord (M-F), Quick Reference Guide, AC charger, RJ45/11 universal coupler, RJ45/M12X patch cord, RJ45/M12D patch cord, RJ45/M8D patch cord, RJ45/11 Modular Adapter, Hanging strap with Remote ID holder, Duffle bag carry case

Package Quantity 1

Pair Tracing Yes

PoE/PoE+ Detection Yes

Port Blink Blink the light of the connected port

Port Number Display Yes

Power adapter Input: 100 to 240 VAC ÃÂ±10%, 50/60Hz Output: 15 VDC, 2 A maximum Class II

Power Over Ethernet Compatibility Ethernet Alliance Certified to IEEE 802.3af/at/bt, Hardware negotiation with signature resistance, Software negotiation with LLDP/CDP

Power Over Ethernet Measurements Loaded Voltage (V) Loaded Power (W)

Primary Function Copper Cable Qualification

Product Name LinkIQ Industrial Ethernet Cable+Network Test Kit

Product Type Cable Network Tester

Promotion Restriction Not eligible for promotion

Remote ID Locators Use remote ID terminations to identify up to 7 unique ports or office outlets

Service Detection Yes

Standards RoHS Compliant Directive 2002/95/EC

Storage temperature -10ÃÂ°C to +60ÃÂ°C

Telephone Service Detection No

Test Port Shielded 8-pin modular jack accepts 8-pin modular (RJ45) plugs.

Testing Functions Cable Length Display, Distance to Fault, Ethernet Service Detection, PoE/PoE+ Detection, Tone Generation, Wire Mapping
