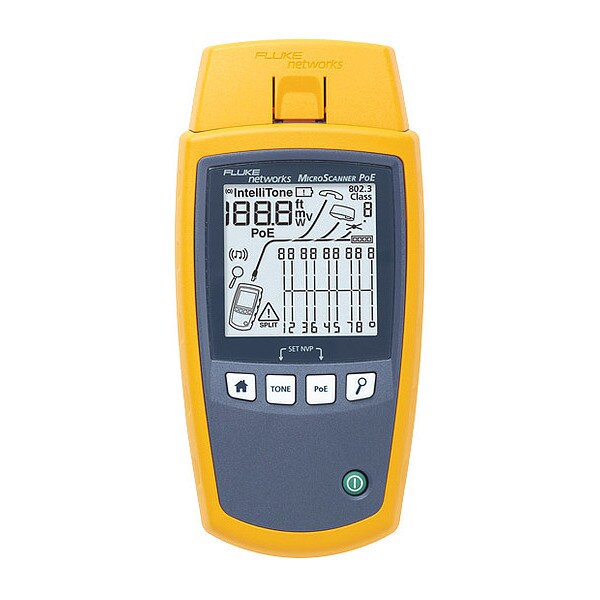

Name: Cable Tester Kit, Connector Type RJ45
Brand: Fluke Networks
SKU: G4376759
Price: 1960.39 USD
Availability: InStock

Home / Cable Tester Kit, Connector Type RJ45

Cable Tester Kit, Connector Type RJ45

SKU
Brand Fluke Networks
Categories
Description Cable Tester Kit, Testing Functions Cable Length Display, Continuity Testing, PoE/PoE+ Detection, Tone Generation, Wire Mapping, Adapters Included Wiremap, Connector Type RJ11, RJ45, Maximum Speed Measured 10 GBps, Data Safe Monitor Yes, Display Screen Type LCD with Backlight, For Use With Voice, Data and Video Cables, Includes (2) Patch Cords, (6) Remote IDs, Carrying Case, IntelliTone Pro 200 Probe, Maximum Cable Length 1,500 ft
graingerSKU: 54XN32, mscSKU: , zoro_no: G4376759, mongo_id: 65bbe8729a749db82279203f

Web Price

$1,960.39 / each

Qty

Product Details

Accuracy (%) +/-3

Adapter Type RJ45

Adapters Included Wiremap

Alert Type Digital Display

Altitude 4,000 m; Storage: 12,000 m

Backlit Digital Display Yes

Battery Chemistry Alkaline

Battery Size AA

Cable Certification No

Cable Length Display Yes

Cable Speed Qualification Yes

Cable test Measures length, verifies wiremap, identifies remote ID locators, and detects Ethernet ports. MicroScannerÃ¢ÂÂ¢ PoE also shows HIGH ÃÂÃÂ© when the resistance of the cable is more than 12.5 ÃÂÃÂ©. Displays results on one screen.

Cable types tested Twisted pair: UTP, FTP, SSTP

Calibration Certificate Not Included

Compatibility MicroScanner PoE, MS-PoE Remote ID Kit (2-7), Intellitone Probe, Duffle bag, RJ45 patch cords

Compatible Cable Type Twisted Pair

Connector Type RJ11, RJ45

Continuity Testing Yes

Country of Origin (subject to change) Malaysia

Crosstalk Detection Yes

Data Line Polarity Indicator No

Data Logger Yes

Data Safe Monitor Yes

Display Monochrome LCD with backlight

Display Screen Type LCD with Backlight

Distance to Fault Yes

EMC IEC 61326-1

Endpoint Testing Yes

Ethernet port detection MicroScannerÃ¢ÂÂ¢ PoE: Detects the advertised speed of 802.3 Ethernet ports with speeds of 10 Mbps, 100 Mbps, 1 Gbps, 2.5 Gbps, 5 Gbps, and 10 Gbps.

Ethernet Service Detection Yes

For Use With Voice, Data and Video Cables

Impedance Detection Yes

Includes (2) Patch Cords, (6) Remote IDs, Carrying Case, IntelliTone Pro 200 Probe

Includes Batteries Yes

Instrument Display LCD

IP Rating Not Applicable

Maximum Cable Length 1,500 ft

Maximum Operating Humidity 75 %

Maximum Operating Temperature 113 Degrees F

Maximum Speed Measured 10 GBps

Minimum Operating Temperature 32 Degrees F

Number of Batteries Required 2

Number of Results Stored 1,000

Opens/Shorts Detection Yes

Operating relative humidity (% RH without condensation) 90 % (50 ÃÂ°F to 95 ÃÂ°F 10 ÃÂ°C to 35 ÃÂ°C) 75 % (95 ÃÂ°F to 113 ÃÂ°F 35 ÃÂ°C to 45 ÃÂ°C)

Operating temperature 32 ÃÂ°F to 113 ÃÂ°F (0 ÃÂ°C to 45 ÃÂ°C)

Output Amplitude 15 V DC

Package Quantity 1

Pair Tracing Yes

PoE MicroScannerÃ¢ÂÂ¢ PoE: Solicits and detects the presence of 802.3af, at, bt, and UPOE (Cisco's Universal Power over Ethernet) compatible PoE devices

PoE/PoE+ Detection Yes

Port Number Display Yes

Power Battery type: 2 AA (NEDA 15A, IEC LR6) alkaline batteries Battery life: 20 hours of typical use Other compatible battery types: 2 AA photo lithium, NIMH, NICAD

Primary Function Copper Cable Testing Verification

Product Name MS-POE-KIT Testing Device Remote Kit

Product Type Cable Tester Kit

Promotion Restriction Not eligible for promotion

Safety IEC 61010-1 3rd Edition

Service Detection Yes

Shock and Vibration Random, 2 g, 5 Hz-500 Hz (Class 2) 1 m drop test with and without wiremap adapter attached

Special Features Auto Power Off, POE Testing, Tone Generation

Standards IEEE-802.3

Storage temperature -4 ÃÂ°F to +140 ÃÂ°F (-20 ÃÂ°C to +60 ÃÂ°C)

Telephone Service Detection Yes

Test connectors Shielded 8-pin modular jack accepts 8-pin modular (RJ45) and 4-pin modular (RJ11) plugs.

Testing Functions Cable Length Display, Continuity Testing, PoE/PoE+ Detection, Tone Generation, Wire Mapping

Tone Detection Yes

Tone Generator Yes

Waterproof No

WiFi Capability No

Wire Mapping Detections Crossed Pairs, Opens, Reversed Pairs, Shorts, Split Pairs

Wiremap test Detects single-wire faults, shorts, miswires, split pairs, and up to seven far-end adapter IDs. The wiremap is drawn with proportional length to visually indicate the approximate location of faults.

Wiremapping Yes
