Name: Cable Tracing Probe, No Display
Brand: Fluke Networks
SKU: G9191056
Price: 126.24 USD
Availability: InStock

Home / Cable Tracing Probe, No Display

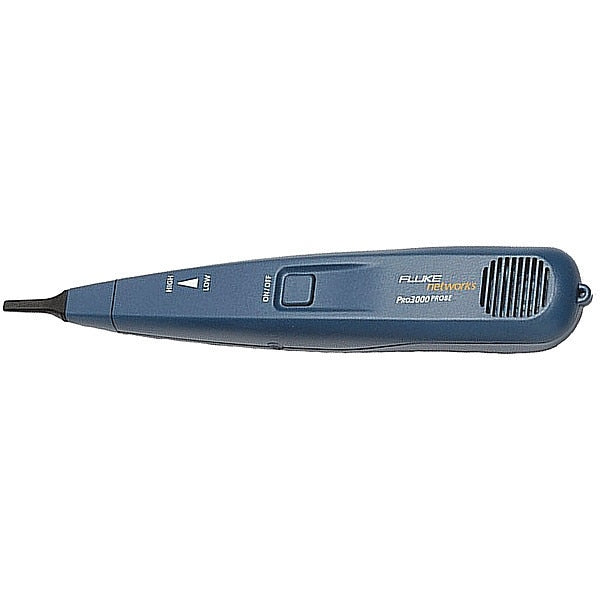

Cable Tracing Probe, No Display

SKU
Brand Fluke Networks
Categories
Description Cable Tracing Probe, Testing Functions Tone Detection, Adapters Included RJ11, Connector Type RJ11, Data Safe Monitor No, Display Screen Type LED, For Use With Telephone Jacks, Includes Pro3000 Analog Probe, Maximum Cable Length 2,600 ft, Fault Location Pulse Duration 750 nsec, Wire Mapping Detections Opens, Shorts, Alert Type Light, Port Number Display No, Waterproof No, Product Type Probe, Operating Voltage 60V DC, Calibration Certificate Not Included, Data Logger No
graingerSKU: null, mscSKU: null, zoro_no: G9191056, mongo_id: 65bbe5b83aaddbd5a9fe106d

Web Price

$126.24 / each

Qty

Product Details

Adapters Included RJ11

Additional Information Loud large speaker amplifies tone through walls, enclosure, wood or plaster, Easy-to-use adjustable volume control dial, Quick-twist tip for easy replacementUser Interface:ON/OFF pushbutton, Volume dial, Replaceable tip, 3.5 mm earphone jack

Alert Type Light

Alternating Frequency 1000/1500 Hz nominal

Battery 9V alkaline

Battery Chemistry Alkaline

Cable Certification No

Cable Length Display No

Cable Speed Qualification No

Calibration Certificate Not Included

Connector Type RJ11

Continuity Testing Yes

Country of Origin (subject to change) Malaysia

Crosstalk Detection No

Data Line Polarity Indicator No

Data Logger No

Data Safe Monitor No

Display Screen Type LED

Distance to Fault No

Endpoint Testing No

Ethernet Service Detection No

Fault Location Pulse Duration 750 nsec

For Use With Telephone Jacks

Impedance Detection No

Includes Pro3000 Analog Probe

Includes Batteries Yes

Instrument Display None

Maximum Cable Length 2,600 ft

Maximum Operating Temperature 140 Degrees F

Minimum Operating Temperature -4 Degrees F

Opens/Shorts Detection No

Output Power in Tone Mode 8 dbm into 600 ohms

Output Voltage Level in Continuity Mode 8 Vdc with fresh battery

Over Voltage Protection 60 Vdc in Toner/Polarity Mode

Package Quantity 1

Pair Tracing Yes

PoE/PoE+ Detection No

Port Number Display No

Primary Function Copper Cable Tracing (Probe)

Product Name Pro3000 Analog Probe

Product Type Probe

Promotion Restriction Not eligible for promotion

Service Detection Yes

Solid Frequency 1000 Hz nominal

Special Features Loud Speaker On Probe

Telephone Service Detection Yes

Temperature Operating: -20ÃÂ° C to 60ÃÂ° C, Storage: -40ÃÂ° C to 70ÃÂ° C

Testing Functions Tone Detection

Tone Detection Yes

Tone Generator Yes

User interface Volume dial || ON/OFF push button || 3. 5 mm earphone jack || Replaceable tip, Tone mode LED || Slide switch selects Continuity or Tone Mode || Push button switch selects SOLID, ALT or OFF || Continuity/Polarity LED

Waterproof No

WiFi Capability No

Wire Mapping Detections Opens, Shorts

Wiremapping Yes
