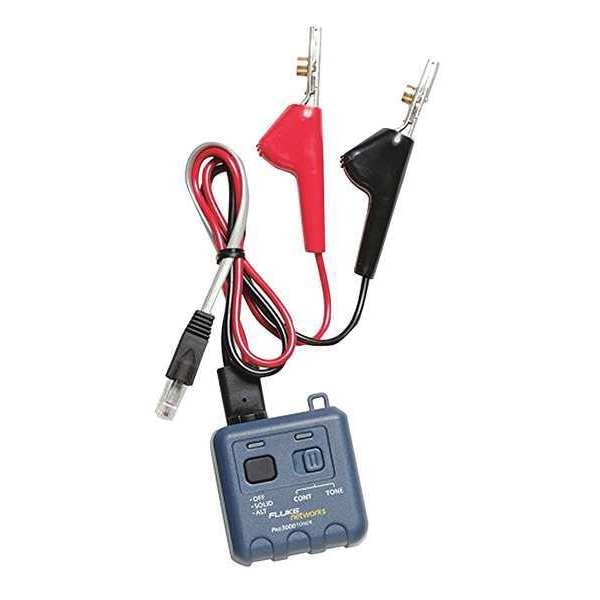

Cable Tracing Tone Generator, LED Display

SKU
Brand Fluke Networks
Categories
Description Tone Generator, Testing Functions Tone Generation, Adapters Included RJ11, Connector Type RJ11, Data Safe Monitor Yes, Display Screen Type LED, For Use With Telephone Jacks, Maximum Cable Length 2,600 ft, Fault Location Pulse Duration 750 nsec, Wire Mapping Detections Opens, Shorts, Alert Type Light, Sound, Port Number Display No, Waterproof No, Product Type Tone Generator, Operating Voltage 60V DC, Calibration Certificate Not Included, Data Logger No, Battery Chemistry Alkaline

Web Price

$100.31 / each

Qty

Product Details

Adapter Type ABN, RJ11

Adapters Included RJ11

Additional Information SmartTone technology, Send tone signal up to 10 miles on most cables, Line cord features angled bed-of-nails clips and ruggedized RJ-11 plug for direct access to phone and data jacks without adapters, External switch allows selection of solid or alternating tone options, indicated with solid or flashing LEDs

Alert Type Light, Sound

Alternating Frequency 1000/1500 Hz nominal

Application/Usage Network

Battery 9V alkaline

Battery Chemistry Alkaline

Cable Certification No

Cable Length Display No

Cable Speed Qualification No

Calibration Certificate Not Included

Connector Type RJ11

Continuity Testing Yes

Country of Origin (subject to change) Malaysia

Crosstalk Detection No

Data Line Polarity Indicator No

Data Logger No

Data Safe Monitor Yes

Depth 1.4

Display Screen Type LED

Distance to Fault No

Eithernet Service Detection No

Endpoint Testing No

Endponit Testing No

Ethernet Service Detection No

Fault Location Pulse Duration 750 nsec

For Use With Telephone Jacks

Height 2.7

Impedance Detection No

Includes Batteries Yes

Instrument Display LED

Maximum Cable Length 2,600 ft

Maximum Length Measurement 9.94 Mile

Maximum Operating Temperature 140 Degrees F

Minimum Operating Temperature -4 Degrees F

Opens/Shorts Detection No

Output Power in Tone Mode 8 dbm into 600 ohms

Output Voltage Level in Continuity Mode 8 Vdc with fresh battery

Over Voltage Protection 60 Vdc in Toner/Polarity Mode

Package Quantity 1

Pair Tracing Yes

PoE/PoE+ Detection No

Port Number Display No

Primary Function Copper Cable Tracing (Tone)

Product Name Pro3000 Analog Tone Generator

Product Type Tone Generator

Promotion Restriction Not eligible for promotion

Service Detection Yes

Solid Frequency 1000 Hz nominal

Special Features SmartTone(TM) Technology

Status Indicators LED (Continuity/Polarity)

Telephone Service Detection Yes

Temperature Operating: -20ÃÂ° C to 60ÃÂ° C, Storage: -40ÃÂ° C to 70ÃÂ° C

Testing Functions Tone Generation

Tone Detection Yes

Tone Generator Yes

User interface Volume dial || ON/OFF push button || 3. 5 mm earphone jack || Replaceable tip, Tone mode LED || Slide switch selects Continuity or Tone Mode || Push button switch selects SOLID, ALT or OFF || Continuity/Polarity LED

Waterproof No

Width 2.4

WiFi Capability No

Wire Mapping Detections Opens, Shorts

Wiremapping Yes
