Home / Fi2-7300 Fiberinspector Ultra

Fi2-7300 Fiberinspector Ultra

SKU
Brand Fluke Networks
Categories
Description FI2-7300 FIBERINSPECTOR ULTRA, Calibration Certificate None, Adapters Included APC, UPC, Alert Type Light, Fiber Mode Measured Single-Mode, IP Rating Not Applicable, Product Type Fiber Optic Inspection Camera, Testing Functions Fiber Optic Video Inspection, Auto Power Off Yes, Battery Chemistry Lithium Ion, Display Screen Type LED, Features Integrated Wi-Fi
graingerSKU: , mscSKU: , zoro_no: G009198538, mongo_id: 65bbe6203aaddbd5a900c4a0

Web Price

$9,163.69 / each

Qty

Product Details

Adapters Included APC, UPC

Alert Type Light

Auto Power Off Yes

Battery Chemistry Lithium Ion

Battery type Lithium-ion; 10.8 hour life

Calibration Certificate None

Camera type 5 Megapixel 1/4-inch CMOS sensor

CISPR 11 Group 2, Class A

Country of Origin (subject to change) United States

Dimensions 6.625 x 5.375 x 2.125 in (168 x 137 x 54 mm) (with no dust cap or adapter tip) - Length with dust cap: 7.5 in (191 mm)

Display Screen Type LED

Endface illumination Coaxial blue LED

Features Integrated Wi-Fi

Fiber Mode Measured Single-Mode

Field of view 610 ÃÂµm x 460 ÃÂµm

IEC 61010-1 Pollution Degree 2

IEC 61326-1 Controlled Electromagnetic Environment; IEC 61326-2-1

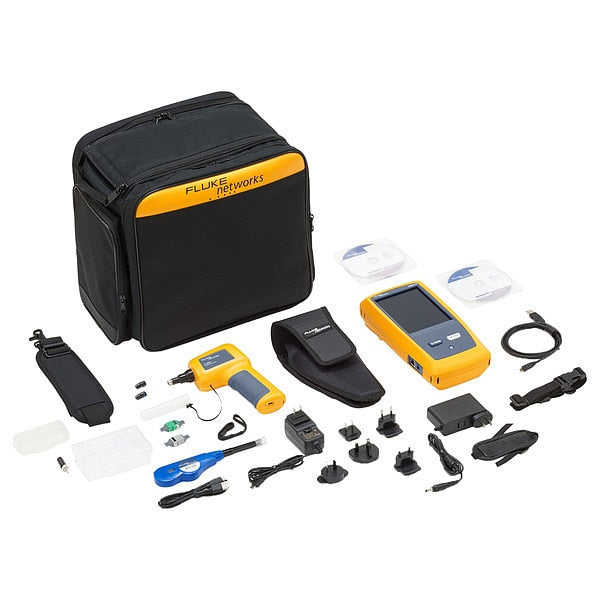

Includes AC Charger, Blank Module, FI-3000 MPO/Single Fiber Camera, Holster, Shoulder Strap, Single Fiber Adapter for FI-1000 Tips, Carrying Case, Tip Set (12/24 UPC and 12/24 APC), USB Interface Cable, USB-USB C Cable, Versiv Mainframe

Includes Software Yes

Input 100 to 240 VAC ÃÂ±10%, 50/60Hz

IP Rating Not Applicable

Light source LED, >100,000 hr life

Manufacturer Warranty Length 1 yr

Maximum Operating Humidity 95 %

Maximum Operating Temperature 113 Degrees F

Minimum Operating Temperature 14 Degrees F

Operating -10 ÃÂ°C to +45 ÃÂ°C (+14 ÃÂ°F to +113 ÃÂ°F), 4,000 m (3,200 m with AC adapter), 0 % to 95 % (32 ÃÂ°F to 95 ÃÂ°F, 0 ÃÂ°C to 35 ÃÂ°C), RH non-condensing

Optional automated pass/fail test time Less than 2 seconds per fiber

Output 15 VDC, 2 A maximum, Class II

Output power <100 mW Frequency ranges

Package Quantity 1

Product Type Fiber Optic Inspection Camera

Promotion Restriction Not eligible for promotion

Resolution White LED

Shock 1 meter drop test

Single Fiber and MPO 1x8 (8 fibers), 1x12 (8, 10, or 12 fibers), 1x16 (16 fibers), 2x12 (16, 20, or 24 fibers), 2x16 (32 fibers)

Standards CISPR 11: Group 2, Class A, IEC 61010-1, IEC 61300-3-35 ED. 2 MM, IEC 61300-3-35 ED. 2 SM APC, IEC 61326-1, USA FCC: 47 CFR 15 Intentional Radiators

Storage 0 % to 95 % (95 ÃÂ°F to 113 ÃÂ°F, 35 ÃÂ°C to 45 ÃÂ°C), RH non-condensing, 12,000 m, -10 ÃÂ°C to +60 ÃÂ°C (+14 ÃÂ°F to +140 ÃÂ°F)

Test limits IEC 61300-3-35 ED. 2 MM, IEC 61300-3-35 ED. 2 SM APC, Document Only

Testing Functions Fiber Optic Video Inspection

Vibration 2 g, 5 Hz to 500 Hz
