Fiber Optic Fault Locator, SC Connector

SKU
Brand Fluke Networks
Categories
Description Fiber Optic Fault Locator, Calibration Certificate None, Connector Type SC, Adapters Included SC, Alert Type Digital Display, Fiber Mode Measured Multi-Mode, IP Rating Not Applicable, Product Type Fiber Optic Tester, Testing Functions Cable Length Display, Distance to Fault, Auto Power Off Yes, Backlit Digital Display Yes, Battery Chemistry Alkaline, Battery Size AA, Display Screen Type LCD
graingerSKU: 54DV52, mscSKU: , zoro_no: G9191379, mongo_id: 65bbe95522d7a989a994bdc0

Web Price

$3,976.24 / each

Product Details

Adapter Type SC

Adapters Included SC

Alert Type Digital Display

Altitude 3000m

Application Fiber Troubleshooting

Auto Power Off Yes

Auto turn off Automatically turns off after 5 minutes if no keys are pressed. Backlight turns off first.

Backlit Digital Display Yes

Battery Chemistry Alkaline

Battery life 1500 tests (typical)

Battery Size AA

Battery type 2 AA alkaline batteries (no battery charger)

Calibration Certificate None

Certifications and Compliance || Conforms to relevant European Union || Listed by the Canadian Standards Association CSA || Conforms to FCC Rules, Part A, Class A || Conforms to relevant Australian standards || C22. 2 No. 61010. 1. 04 || || directives

Connector Removable/cleanable SC adapter, UPC polish

Connector Type SC

Country of Origin (subject to change) United States

Detection of loss incidents5 0. 70 dB default threshold (user-configurable from 0. 5 dB to 6. 1 dB in 0. 2 dB increments)

Detection of reflective incidents3 -35 dB default threshold (User selectable: -20 dB to -45 dB in 5 dB increments)

Display Yes

Display Screen Type LCD

Distance accuracy (0 m to 1500 m or 0 ft to 4921 ft) ÃÂ± (1 m + 0. 1 % x length) for reflective incidents || ÃÂ± (3 m + 0. 1 % x length) for non-reflective incidents

Dynamic range >11 dB

Features Fills The Gap Between a VFL and An OTDR, VFL Simplicity, Identify Live Fiber, Provide Distance and Power Information On High Losses, Breaks At The End of The Fiber

Fiber Mode Measured Multi-Mode

Fiber types tested 50/125 ÃÂµm or 62. 5/125 ÃÂµm multimode

For Use With Multimode Fiber

Includes Adapter, Carrying Case, Patch Cord

Includes Batteries Yes

Index of refraction range 1. 45 to 1. 5 (factory default is 1. 496)

IP Rating Not Applicable

Laser classification Class 1 CDRH Complies to EN 60825-2

Laser safety Class 1 CDRH Complies to EN 60825-2

LCD type Backlit black and white (segments)

Line Polarity Indicator No

Live fiber detection Detects optical signals from 600 nm to 1050 nm and shows ACTIVE LINE if a signal is there. Looks for a signal every 3 seconds after the first detec-tion. +7 dB maximum input power.

Maximum distance 1500 meters or 4921 feet

Maximum number of incidents shown 9

Maximum Operating Humidity 95 %

Maximum Operating Temperature 122 Degrees F

Maximum reflectance measurement -20 dB

Maximum Wavelength Measurement 850 nm

Measures Fiber Verification and Fault Location

Minimum Operating Temperature 32 Degrees F

Non-operating temperature -20ÃÂºC to 60ÃÂºC

Number of Batteries Required 2

Operating relative humidity (without condensation) 95% (10ÃÂºC to 35ÃÂºC) 75% (35ÃÂºC to 40ÃÂºC) uncontrolled < 10ÃÂºC

Operating temperature with the battery 0ÃÂºC to 50ÃÂºC

Output wavelengths 850 nm ÃÂ± 10 nm

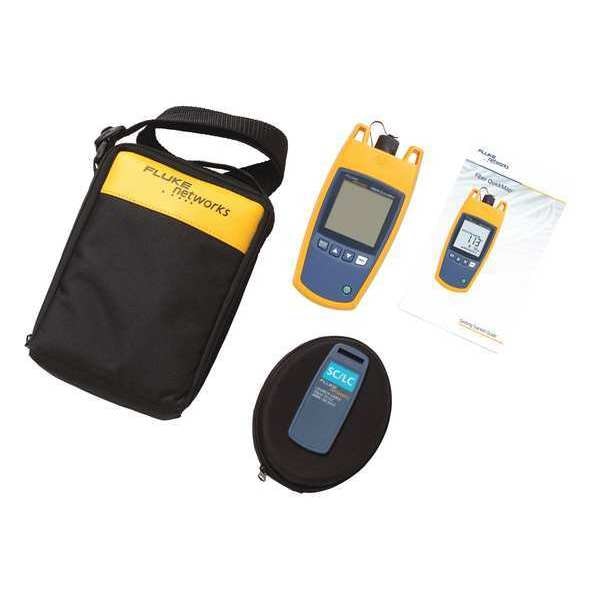

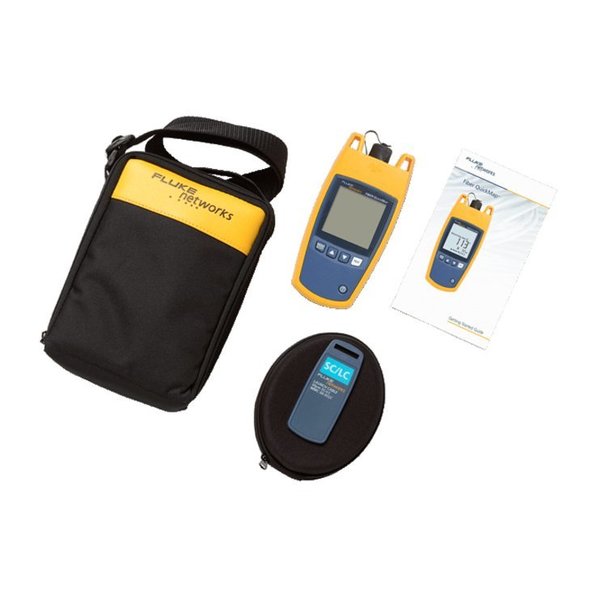

Package Contents Multimode fiber fault locator unit, Screw on interchangeable SC adapter, 50 µm SC/LC Multimode Launch Fiber, Carrying case, 4-language Quick Reference Guide (manuals in 9 languages available on-line), Safety instruction manual, Batteries

Package Quantity 1

Product Name Test Kit

Product Type Fiber Optic Tester

Promotion Restriction Not eligible for promotion

Reflectance accuracy4 ÃÂ± 4 dB

Shock 1 meter drop test

Standards CE, CSA, FCC, N10140

Testing Functions Cable Length Display, Distance to Fault

Testing speed < 6 seconds typical

Vibration Random, 5 Hz to 500 Hz, MIL-PRF-28800F CLASS 2

Waterproof No
