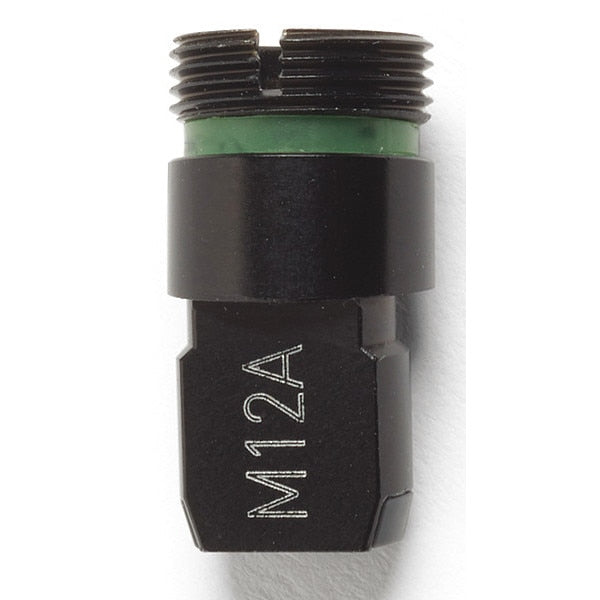

Fiber Optic Tester, For Optic Cables

SKU
Brand Fluke Networks
Categories
Description MPO Bulkhead Tip, For Use With 54XM13 (Fluke FI-3000), Product Type Tip, Includes MPO 12 or 24 APC tip for bulkheads, Compatible with Manufacturer Model Number FI-3000, Features MPO 12 or 24 APC Tip, Compatible with Series FiberInspector(TM) Ultra Camera, Standards Not Applicable, Compatible with Grainger Part Number 54XM13, Maximum Operating Temperature Not Applicable, Minimum Operating Temperature Not Applicable
graingerSKU: 54XM16, mscSKU: , zoro_no: G6757827, mongo_id: 65bbe7a09a749db82274a2b1

Web Price

$362.49 / each

Qty

Product Details

Accessory Type MPO Bulkhead Tip

Altitude Storage: 12,000 m || Operating: 4,000 m (3,200 m with AC adapter)

Battery Type Lithium-ion; 10. 8 hour life

Camera type 5 Megapixel 1/4-inch CMOS sensor

Compatible Manufacturer Part Number FI-3000

Compatible with Manufacturer Model Number FI-3000

Compatible with Series FiberInspector(TM) Ultra Camera

Connector Type MPO

Country of Origin (subject to change) Lithuania

Dimensions Length with dust cap: 7. 5 in (191 mm) || (with no dust cap or adapter tip) || 6. 625 in x 5. 375 in x 2. 125 in (168 mm x 137 mm x 54 mm)

EMC CISPR 11: Group 2, Class A || USA (FCC): 47 CFR 15 Intentional Radiators: This device complies with part 15 of the FCC Rules. || IEC 61326-1: Controlled Electromagnetic Environment; IEC 61326-2-1

Endface illumination Coaxial blue LED

Endtype Support Single Fiber and MPO: 1x8 (8 fibers), 1x12 (8, 10, or 12 fibers), 1x16 (16 fibers), 2x12 (16, 20, or 24 fibers), 2x16 (32 fibers)

Features MPO 12 or 24 APC Tip

Field of view 610 ÃÂµm x 460 ÃÂµm

For Use With 54XM13 (Fluke FI-3000)

Humidity range RH non-condensing || Storage: 0 % to 95 % (95 ÃÂ°F to 113 ÃÂ°F, 35 ÃÂ°C to 45 ÃÂ°C) || Operating: 0 % to 95 % (32 ÃÂ°F to 95 ÃÂ°F, 0 ÃÂ°C to 35 ÃÂ°C)

Includes MPO 12 or 24 APC tip for bulkheads

Light source LED, >100,000 hr life

Maximum Operating Temperature Not Applicable

Minimum Operating Temperature Not Applicable

Optional automated Pass/Fail Test Time Less than 2 seconds per fiber

Package Quantity 1

Port illumination White LED

Power Adapter Output: 15 VDC, 2 A maximum || Class II || Input: 100 to 240 VAC ÃÂ±10%, 50/60Hz

Product Type Tip

Promotion Restriction Not eligible for promotion

Resolution 1 ÃÂµm

Safety IEC 61010-1: Pollution Degree 2
