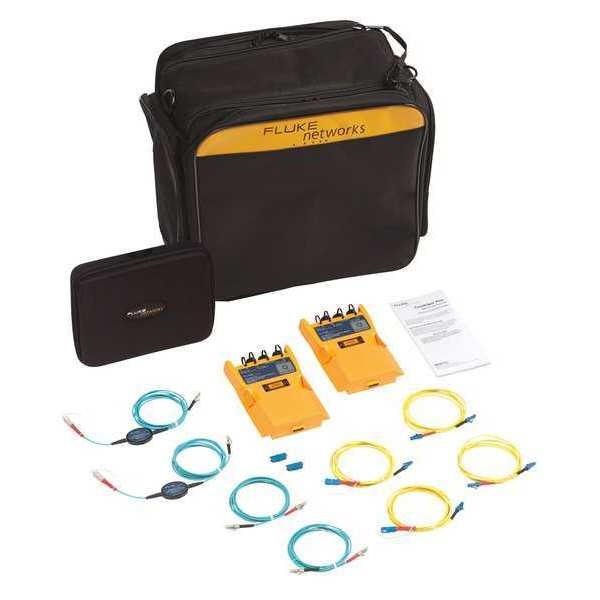

Fiber Optic Tester, LC Connector

SKU
Brand Fluke Networks
Categories
Description Fiber Optic Tester, Calibration Certificate Included, Connector Type FC, SC, ST, Adapters Included 2.50 mm, LC, Alert Type Light, Fiber Mode Measured Multi-Mode, Single-Mode, IP Rating Not Applicable, Product Type Fiber Optic Tester, Testing Functions Optical Power Loss, Display Screen Type LED, Features Extended Single Mode Distance Range to 130km, Fiber Optic Loss, OTDR Testing and Fiber End Face Inspection, Versiv(TM) Modular Design Supports Copper Certification, Includes Software Yes
graingerSKU: 54DV49, mscSKU: , zoro_no: G9871946, mongo_id: 65bbe81a9a749db822775368

Web Price

$18,074.99 / each

Product Details

Adapters Included 2.50 mm, LC

Alert Type Light

Altitude Operating: 4,000 m; storage: 12,000 m

Application Fiber Optic Video Inspection

Calibration Certificate Included

Connector adapter 2. 5 mm universal

Connector Type FC, SC, ST

Country of Origin (subject to change) United States

Detector Type InGaAs

Display Yes

Display Screen Type LED

Features Extended Single Mode Distance Range to 130km, Fiber Optic Loss, OTDR Testing and Fiber End Face Inspection, Versiv(TM) Modular Design Supports Copper Certification

Fiber Mode Measured Multi-Mode, Single-Mode

Fiber types tested 50/125 ÃÂµm or 62. 5/125 ÃÂµm || singlemode

Includes Software Yes

Input Connector Interchangeable connector adapter (LC standard, SC, ST and FC optional)

Input/Output Connectors Interchangeable connector adapter (LC standard, SC, ST and FC optional)

Integrated Wi-Fi Meets IEEE 802. 11 a/b/g/n; dual band (2. 4 GHz and 5 GHz)

IP Rating Not Applicable

Laser safety Over operating temperature range || Class II CDRH

Length Measurement Accuracy ÃÂ± 1. 5 m plus ÃÂ± 1 % of length

Line Polarity Indicator No

Maximum Length Measurement 12 km || 130 km

Maximum Operating Humidity 90 %

Maximum Operating Temperature 73 Degrees F

Maximum Power Measurement 0 dBm

Maximum Wavelength Measurement 1,550 nm

Measurement Linearity3 < ÃÂ± 0. 1 dB

Minimum Power Measurement -65 dBm

Minimum Wavelength Measurement 850 nm

Operating Relative Humidity % RH without condensation % RH without condensation || 0 % to 90 %, 32 ÃÂ°F to 95 ÃÂ°F (0ÃÂ° C to 35ÃÂ° C) || 0 % to 70 %, 95 ÃÂ°F to 113 ÃÂ°F (35ÃÂ° C to 45ÃÂ° C)

Operating Temperature -10ÃÂ° C to 45ÃÂ° C

Operating wavelength 650 nm nominal

Output modes Pulsed mode (2 Hz to 3 Hz blink frequency) || Continuous wave

Output power >-5 dBm<0 dBmSMF-28 singlemode fiberContinuous waveSC/UPC connector

Output Power (Nominal) Ã¢ÂÂ¥ -24 dBm with EF-TRC || Ã¢ÂÂ¥ -4 dBm

Output Power Stability3 ÃÂ± 0. 1 dB over 8 hours ÃÂ± 0. 08 dB over 15 minutes || ÃÂ± 0. 05 dB over 8 hours ÃÂ± 0. 03 dB over 15 minutes

Package Quantity 1

Pollution Degree 2

Power Measurement Range 0 dBm to -65 dBm (850 nm) 0 dBm to -70 dBm (all other wavelengths)

Power Measurement Uncertainty1, 2 < +/- 5% +/- 32 pW

Power Measurement Uncertainty1,2 < +/- 5% +/- 32 pW

Product Type Fiber Optic Tester

Promotion Restriction Not eligible for promotion

Safety CSA C22. 2 No. 1010. 1: 1992 || EN 61010-1 1st Edition + Amendments 1, 2

Shock 1 m drop test with and without module and adapters

Source Type and Wavelengths LED source 850 nm ÃÂ± 30 nm 1300 nm ÃÂ± 20 nm || Fabry-Perot laser diode 1310 nm ÃÂ± 20 nm 1550 nm ÃÂ± 30 nm

Source Wavelengths 850 nm, 1300 nm, 1310 nm, 1550 nm

Standards ANSI/TIA, CSA C22.2 No. 1010.1: 1992, EN 61010-1, EN 61326-1, IEC 61300-3-35, ISO/IEC, ISO/IEC 14763-3

Storage Temperature -10ÃÂ° C to +60ÃÂ° C

Testing Functions Optical Power Loss

Testing Speeds (excludes referencing times) Far End Source mode: Ã¢ÂÂ¤2 seconds (2 wavelengths, one direction auto wavelength detection) || Smart Remote mode: < 3 seconds (2 wavelengths, one direction, auto wavelength detection) || Loopback mode: Ã¢ÂÂ¤2 seconds (2 wavelengths, one direction auto wavelength detection)

Vibration Random, 2 g, 5 Hz-500 Hz

Waterproof No

Wavelengths 850 nm, 1300 nm, 1310 nm, 1550 nm
