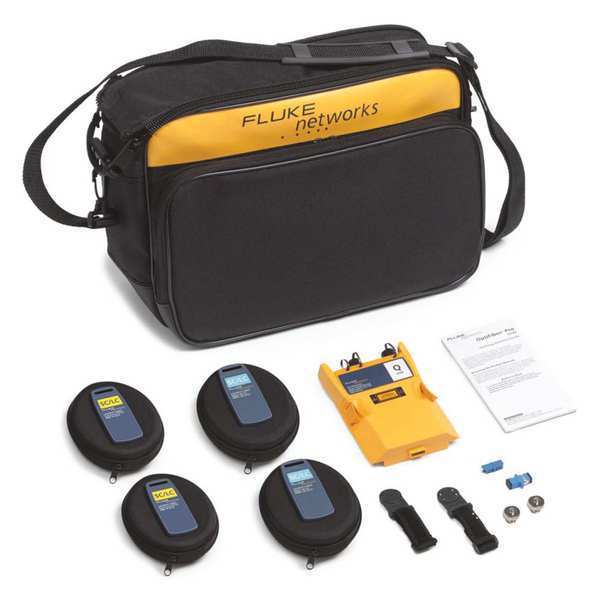

Fiber Optic Tester, LC Connector

SKU
Brand Fluke Networks
Categories
Description Fiber Optic Tester, Calibration Certificate Included, Connector Type SC, Adapters Included LC, Alert Type Light, Fault Location Pulse Duration 2 sec, Fiber Mode Measured Multi-Mode, Single-Mode, IP Rating Not Applicable, Product Type Fiber Optic Tester, Testing Functions Fiber Verification, Battery Chemistry Lithium Ion, Display Screen Type LED
graingerSKU: 54DV48, mscSKU: , zoro_no: G9191449, mongo_id: 65bbea1022d7a989a9993a40

Web Price

$18,463.74 / each

Product Details

Adapters Included LC

Alert Type Light

Application Fiber Optic Video Inspection

Attenuation dead zone 2 1310 nm: 3. 6 m typical || 1300 nm: 4. 5 m typical || 850 nm: 2. 5 m typical || 1550 nm: 3. 7 m typical

Attenuation dead zone2 4m (typical)

Battery Lithium ion battery pack, 7. 2 volts

Battery Chemistry Lithium Ion

Battery life Eight hour Auto OTDR operation, dual wavelength, no video probe connected, 150 m of fiber

Calibration Certificate Included

Certifications CE (when used with the mainframe)

Compatible fiber types 50/125 ÃÂµm || 62. 5/125 ÃÂµm || Singlemode, Singlemode

Connector adapter 2. 5 mm universal

Connector Type SC

Country of Origin (subject to change) United States

Dimensions Mainframe with module and battery: 2. 625 in x 5. 25 in x 11. 0 in ( 6. 67 cm x 13. 33 cm x 27. 94 cm)

Display Yes

Display Screen Type LED

Distance measurement range 4, 5, 7, 8, 9, 10 1310 nm: 80 km || 850 nm: 9 km || 1550 nm: 130 km || 1300 nm: 35 km

Distance uncertainty +/-(1 + 0. 0005*distance + 0. 5*resolution)

Dynamic range 3, 5, 6 1300 nm: 30 dB typical || 850 nm: 28 dB typical || 1550 nm: 30 dB typical || 1310 nm: 32 dB typical

Dynamic range 4, 5 1310 nm: 42 dB (typical || 1490 nm: 41 dB (typical) || 1625 nm: 40 dB (typical) || 1550 nm: 41 dB (typical) || 1310 nm: 42 dB (typical)

Event dead zone 1 0. 7 m (typical), 1550 nm: 0. 6 m typical || 1310 nm: 0. 6 m typical || 850 nm: 0. 5 m typical || 1300 nm: 0. 7 m typical

Fault Location Pulse Duration 2 sec

Features Allow Tier 2 Certification, Detects (850/1300nm) Multimode and (1310/1550nm) Single Mode Wavelengths, Locate Connections and Faults, Measure Loss and Reflectance

Fiber Mode Measured Multi-Mode, Single-Mode

Field of View (FOV) Horizontal: 425 ÃÂµm || Vertical: 320 ÃÂµm

Includes Splices, Splitters

Includes Batteries Yes

Integrated Wi-Fi Meets IEEE 802. 11 a/b/g/n; dual band (2. 4 GHz and 5 GHz)

IP Rating Not Applicable

Laser classification Class 1 CDRH Complies to EN 60825-2, 3rd Edition

Laser safety (classification) Class II CDRH Complies to EN 60825-2

Light source Blue LED

Line Polarity Indicator No

Linearity ÃÂ± 0. 03 dB/dB

Magnification ~ 200X with OptiFiber Pro Display

Max distance range setting 260 km, 40 km || MM: 40 km || SM: 130 km || 130 km

Maximum Operating Temperature 122 Degrees F

Maximum Wavelength Measurement 1,625 nm

Minimum detectable particle size 0. 5 ÃÂµm

Minimum Operating Temperature 32 Degrees F

Minimum Wavelength Measurement 850 nm

Number of Batteries Required 1

On/Off control Mechanical switch and a button on the touch screen

Operating altitude 4,000 m (13123 ft) || 3200 m (10,500 ft) with ac adapter

Operating temperature -10ÃÂºC to 45ÃÂºC

Operating wavelength 650 nm nominal

OTDR Port Connector Cleanable APC ferrule with removable SC adapter

Output modes Continuous wave Pulsed mode (2 Hz to 3 Hz blink frequency)

Output power 316 ÃÂµW (-5 dBm) = peak power = 1. 0 mW (0 dBm)

Package Quantity 1

PON dead zone3 30 m (typical)

Power source Versiv mainframe

Product Type Fiber Optic Tester

Promotion Restriction Not eligible for promotion

Pulse widths (nominal) 5, 10, 30, 50, 100, 300, 500, 1000, 3000, 5000, 10000, 20000 ns, 1300 nm: 3, 5, 20, 40, 200, 1000 ns || 1310/1550 nm: 3, 10, 30, 100, 300, 1000, 3000, 10000, 20000 ns || 850 nm: 3, 5, 20, 40, 200 ns

Reflectance range 4, 5 1300 nm: -14 dB to -62 dB (typical) || 1310 nm: -14 dB to -65 dB (typical) || 1310 nm: -14 dB to -65dB (typical) || 1550 nm: -14 dB to -65 dB (typical) || 850 nm: -14 dB to -57 dB (typical)

Reflectance range4 -14 to -70 dB (typical)

Reflectance uncertainty ÃÂ±2 dB

Sample resolution 3 cm to 400 cm

Sampling points Up to 129000

Sampling resolution 3 cm to 2 m

Spectral width (RMS) ÃÂ±3 nm

Storage altitude 12,000 m

Storage Temperature -10ÃÂºC to +60ÃÂºC

Temperature range Operating: 32ÃÂ°F to 122ÃÂ°F (0 ÃÂ°C to +50 ÃÂ°C) || Storage: -4ÃÂ°F to +158ÃÂ°F (-20ÃÂ°C to +70ÃÂ°C)

Test Time (per wavelength) Best resolution setting: 5 to 180 seconds/wavelength || Auto PON setting: 10 seconds/wavelength (typical) || Quick test setting: 3 seconds/wavelength (typical) || Manual PON setting: 3, 5, 10, 20, 40, 60, 90, 120, 180 seconds/wavelength || Manual setting: 3, 5, 10, 20, 40, 60, 90, 120, 180 seconds/wavelength || Auto setting: 5 seconds/wavelength (typical), || Best resolution setting: 5 to 180 sec || Manual setting: 3, 5, 10, 20, 40, 60, 90, 120, 180 sec || Auto setting: 10 sec (typical) || Quick test setting: 2 sec (typical) || MM - 2 sec (typical), MM - 180 sec (max) || Manual setting: || -3, 5, 10, 20, 40, 60, 90, 120, 180 sec SM - 3, 5, 10, 20, 40, 60, 90, 120, 180 sec || DataCenter OTDR setting: 1 sec (typical at 850 nm), 7 sec (max) || DataCenter OTDR setting: || SM - 10 sec (typical), SM - 180 sec (max) || Auto setting: 5 sec (typical) || FaultMap setting: 10 sec (typical), 180 sec (max) || FaultMap setting: || Best resolution setting: 2 to 180 sec || MM Ã¢ÂÂ 1 sec (typical at 850 nm) MM Ã¢ÂÂ 7 sec (max) || MM Ã¢ÂÂ 2 sec (typical) || Quick test setting: || DataCenter OTDR setting: 20 sec (typical), 40 sec (max) || MM Ã¢ÂÂ 2 to 180 sec M || SM Ã¢ÂÂ 10 sec (typical) || SM Ã¢ÂÂ 5 sec (typical) || FaultMap setting: 2 sec (typical), 180 sec (max) || Quick test setting: 5 sec (typical) || MM Ã¢ÂÂ 5 sec (typical) || SM Ã¢ÂÂ 5 to 180 sec || Best resolution setting: || SM Ã¢ÂÂ 20 sec (typical) SM Ã¢ÂÂ 40 sec (max) || Auto setting:

Tester Off Four hours to charge from 10% to 90% capacity

Tester On Six hours to charge from 10% to 90% capacity with the tester on

Testing Functions Fiber Verification

Waterproof No

Wavelengths 850 nm +/- 10 nm || 1300 nm +35/-15 nm || 1550 nm +/- 30 nm || 1310 nm +/- 25 nm, 1490 nm +/- 20 nm || 1550 nm +/- 20 nm || 1310 nm +/- 25 nm || 1625 nm +/- 20 nm
